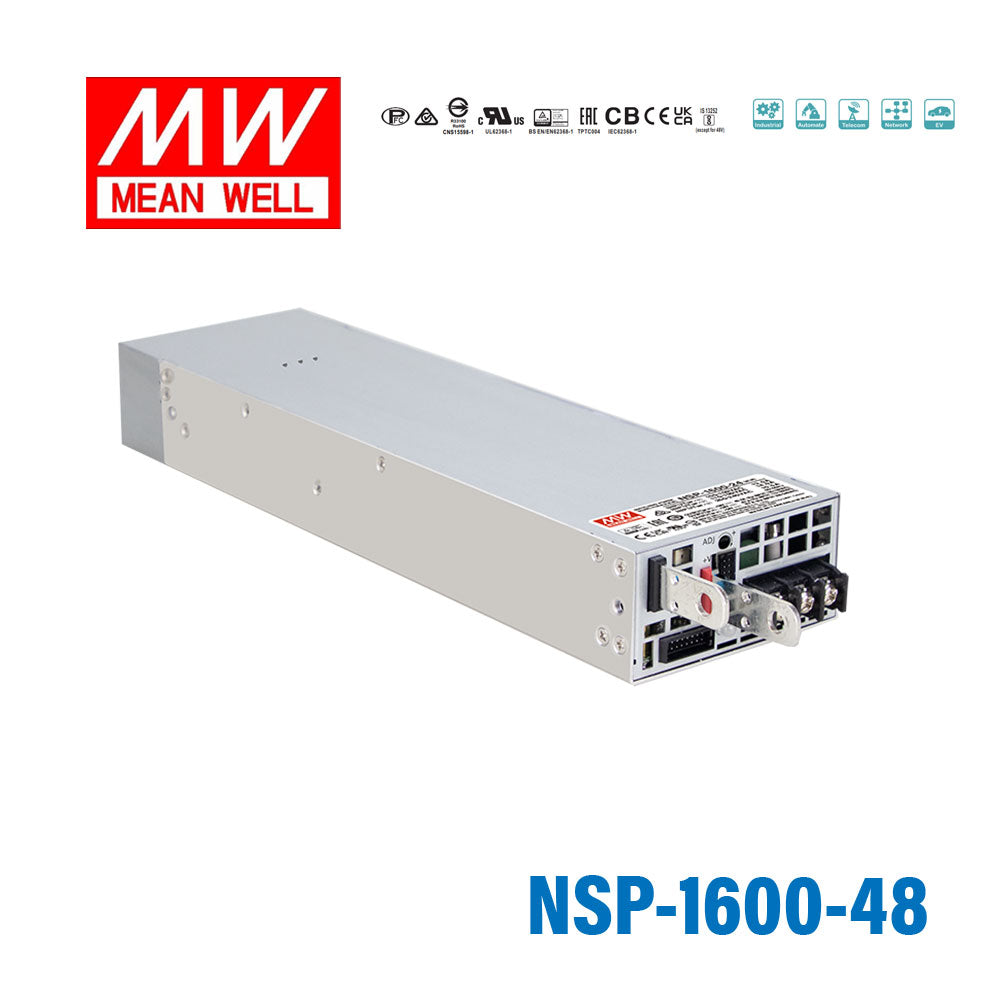

Mean Well NSP-1600-48 1608W 48V Compact Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NSP-1600-48 1608W 48V Compact Power Supply
NSP-1600 Series Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating1608 Watt
-
Output Voltage48 Volt
-
Rated Current33.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well NSP-1600-48?
The Mean Well NSP-1600-48 is a single-output enclosed AC/DC power supply rated for 48V DC output. It delivers up to 33.5A and has a total power rating of 1608W. This makes it suitable for high-power industrial systems that need a compact 48V supply.
What types of applications is the NSP-1600-48 typically used for?
This model is designed for industrial and high-reliability applications that require substantial 48V DC power in a compact enclosed form factor. Its 1U low-profile design and high power density can be useful where equipment space is limited. Buyers often evaluate it for OEM, automation, and other industrial power systems needing a robust 48V source.
Does the NSP-1600-48 support remote control or monitoring features?
Yes, the NSP-1600-48 includes built-in remote ON-OFF control, remote sense, auxiliary power, and a DC OK signal. It also supports programmable output voltage level adjustment. These features make it better suited for integrated equipment designs that need control and status feedback.
How efficient is the Mean Well NSP-1600-48?
The NSP-1600-48 is rated for efficiency up to 92%. It also includes built-in active PFC, which is a useful feature for higher-power AC/DC power supplies in industrial environments. Together, these characteristics help distinguish it from lower-power or less optimized enclosed supply options.
What protections are included in the NSP-1600-48?
This model includes protection for short circuit, overload, over voltage, and over temperature conditions. These built-in safeguards are important in demanding industrial applications where power stability and equipment protection matter. Mean Well also backs this series with a 5-year warranty.
What operating temperature range is specified for the NSP-1600-48?
The specified operating temperature range for the NSP-1600-48 is -20°C to 70°C. It uses forced air cooling with a built-in DC fan to support operation in demanding conditions. Buyers should consider this range when evaluating the unit for warmer industrial environments or enclosed equipment spaces.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NSP-1600 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NSP-1600-36 1602W 36V Compact Power Supply | 1602W | 36V | 44.5A | Indoor | $378.76 | View |
| Mean Well NSP-1600-24 1608W 24V Compact Power Supply | 1608W | 24V | 67A | Indoor | $378.76 | View |
| Mean Well NSP-1600-12 1500W 12V Compact Power Supply | 1500W | 12V | 12A | Indoor | $378.76 | View |
