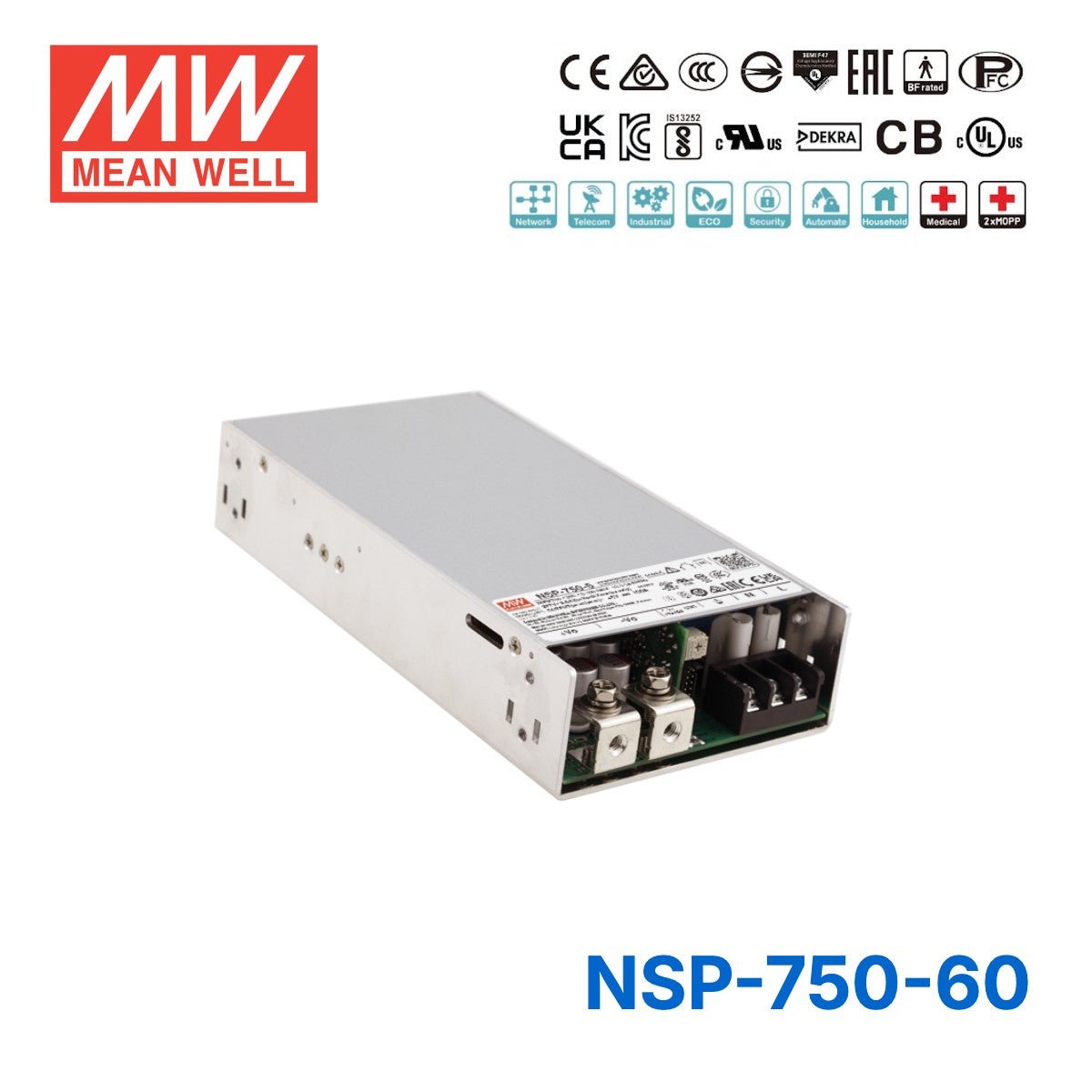

NSP-750-60
The MEAN WELL NSP-750 series is a 750W high-reliability AC/DC enclosed power supply engineered for industrial, medical, automation, telecommunications, PoE power sourcing, mechanical equipment, and home automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 95% efficiency and extremely low no-load power consumption under 0.75–1W depending on model. The compact 199×105×41 mm design incorporates forced-air cooling with a built-in temperature-controlled DC fan and supports 200% peak power capability for up to 5 seconds. The NSP-750 series features constant current limiting, wide operating temperature from –40°C to +85°C, remote ON/OFF, remote sense, auxiliary outputs (5V/12V), and a DC OK signal for system monitoring. With extremely low leakage current (<350µA), 2×MOPP medical safety approval, and certifications across ITE, medical, household, industrial, and energy-conversion standards, it offers robust performance for demanding multi-industry applications and high-altitude installations up to 5000 meters.
Key Features
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.71 lb
::specification::
Frequently Asked Questions
What is the Mean Well NSP-750-60 designed for?
The NSP-750-60 is a 756W enclosed AC/DC power supply built for demanding applications such as industrial automation, telecommunications, PoE power sourcing, mechanical equipment, medical systems, and home automation. Its high-reliability design and broad certification coverage make it suitable for multi-industry OEM and commercial use.
What are the main output specifications of the NSP-750-60?
This model provides a 60V DC output rated at 12.6A, with a total power rating of 756W. It is part of the NSP-750 series and is the 60V version for systems that require higher DC bus voltage within this product family.
What input range does the NSP-750-60 support?
The NSP-750-60 accepts a universal input range of 85-305VAC or 120-431VDC. It also includes active power factor correction, which supports efficient operation across a wide range of global input conditions.
Can the NSP-750-60 be used in harsh temperature or high-altitude environments?
Yes. The unit is rated for operation from -40°C to +85°C, with derating above +60°C, and it is designed for installations up to 5000 meters altitude. Its conformal coated PCB also helps improve environmental resistance in tougher operating conditions.
What protections and monitoring features are included in the NSP-750-60?
The NSP-750-60 includes protection against short circuit, overload, overvoltage, and overtemperature, along with constant current limiting. It also provides remote ON/OFF control, remote sense, auxiliary outputs, and a DC OK signal for status monitoring in integrated systems.
How does the NSP-750-60 differ from standard enclosed power supplies?
Compared with more basic enclosed power supplies, the NSP-750-60 emphasizes high reliability, very wide input range, up to 95% efficiency, and 200% peak power capability for up to 5 seconds. It also stands out with low leakage current, 2xMOPP medical approval, and certifications spanning industrial, medical, household, and energy-conversion standards.
Is the NSP-750-60 suitable for medical or high-reliability equipment?
Yes. This model features very low leakage current below 350uA and carries 2xMOPP medical safety approval, which supports use in medical-related equipment where those approvals are required. It is also intended for high-reliability industrial and commercial applications that need robust compliance coverage.
