Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

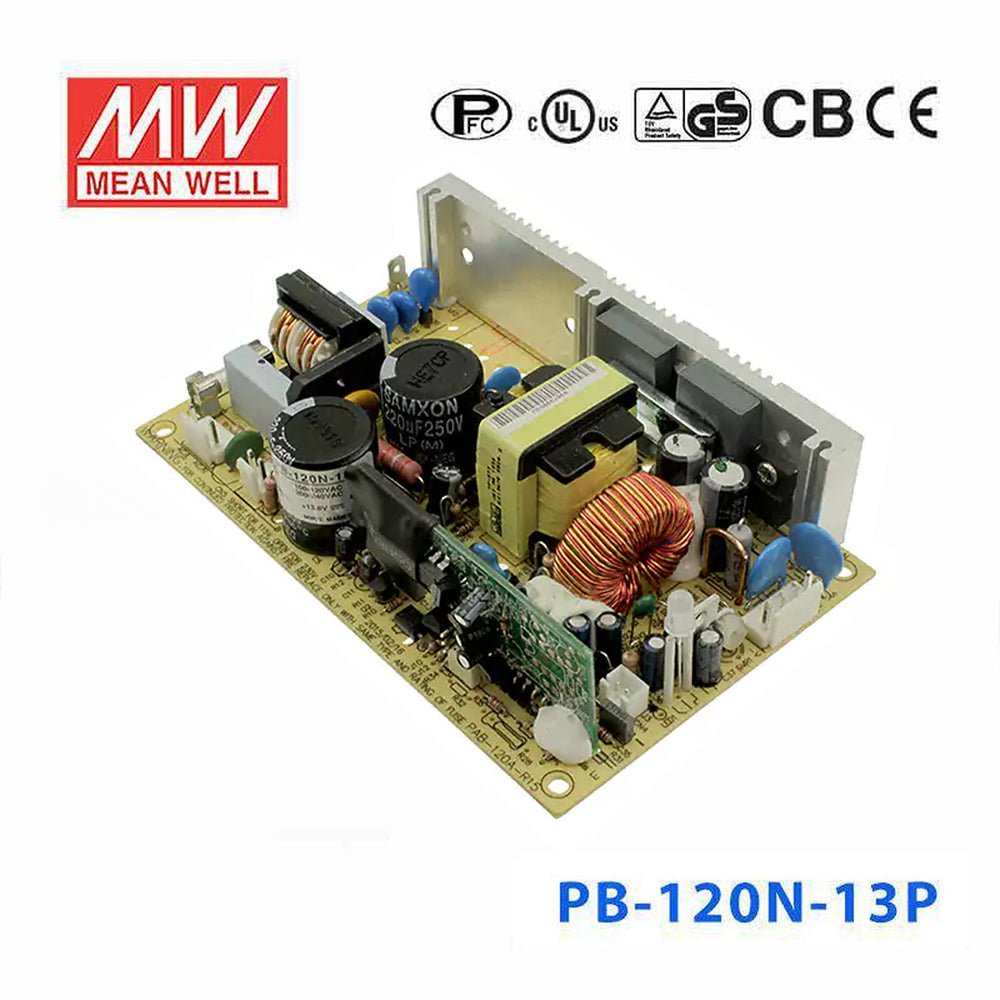

Mean Well PB-120N-13P Portable Battery Chargers 99.36W 13.8V 7.2A -...
$64.07 USD
Unit price /
Unavailable
EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓AC input range selected by switch
- ✓Built-in passive PFC function compliance to EN61000-3-2
- ✓With AC ON-OFF switch
- ✓3 poles AC inlet with fuse holder
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Charger type can be selected (Optional)
- ✓Charger for lead-acid batteries
- ✓2 color LED loading indicator
- ✓Open frame models available (Without safety approval)
- ✓Low cost, High reliability
- ✓2 years warranty
-
BrandMean Well
-
SeriesPB Series
-
Power Rating99.36 Watt
-
Output Voltage13.8 Volt
-
Rated Current7.2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~45°C
-
Warranty2 Year
-
Length5.67 in
-
Width3.54 in
-
Height1.3 in
-
Weight2.43 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PB-120N Models
3 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well PB-120N-54C Portable Battery Chargers 121.44W 55.2V 2.2A - Single Output Power Supply | 121.44 Watt | Lead Acid Battery | 48V | — | $53.41 | View |
| Mean Well PB-120N-27C Portable Battery Chargers 118.68W 27.6V 4.3A - Single Output Power Supply | 118.68 Watt | Lead Acid Battery | 24V | — | $53.46 | View |
| Mean Well PB-120N-13C Portable Battery Chargers 99.36W 13.8V 7.2A - Single Output Power Supply | 99.36 Watt | Lead Acid Battery | 12V | — | $53.41 | View |
