Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

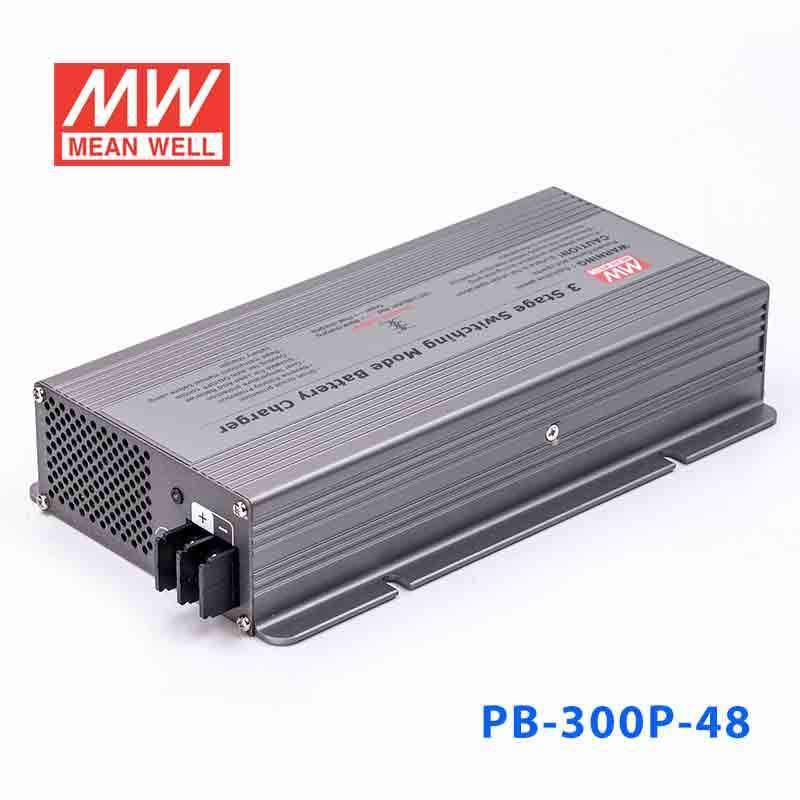

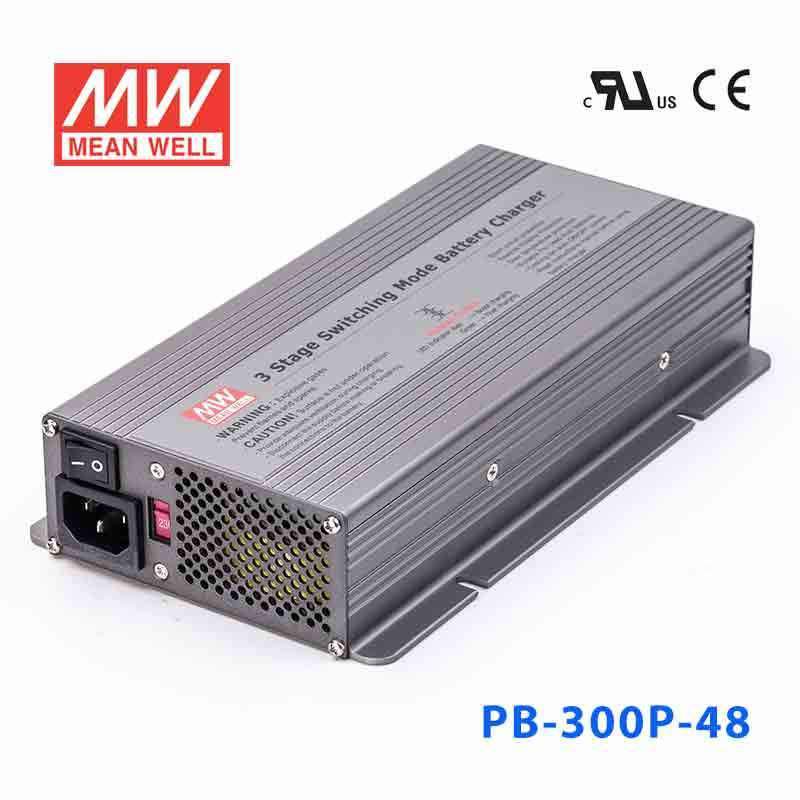

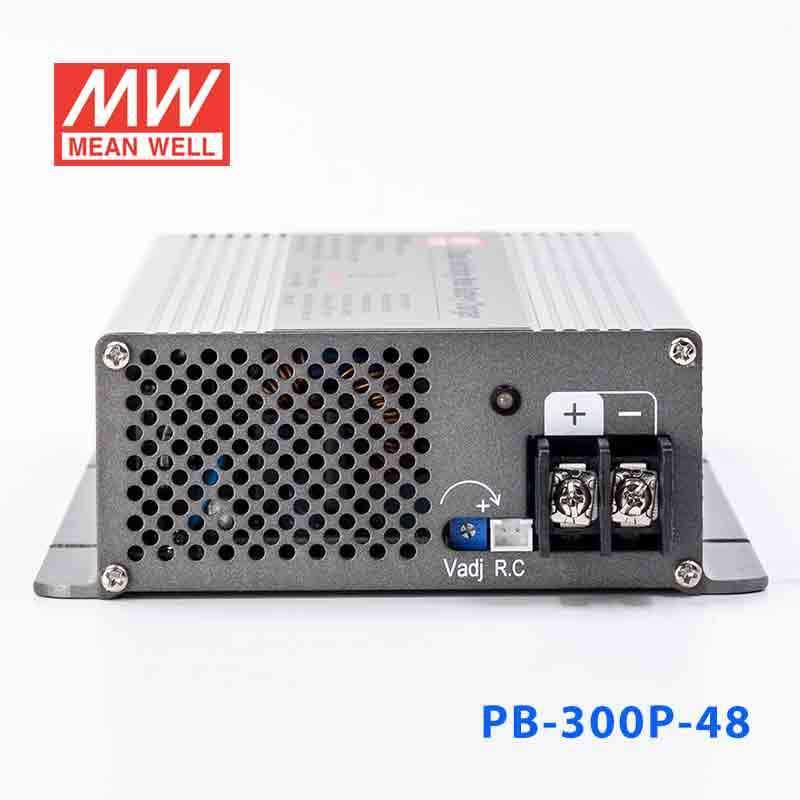

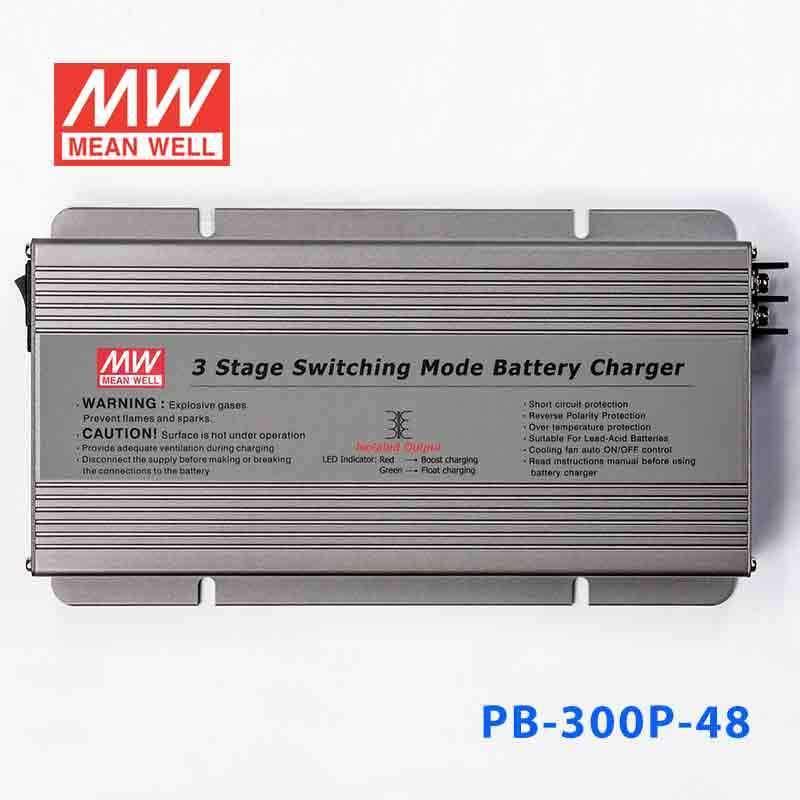

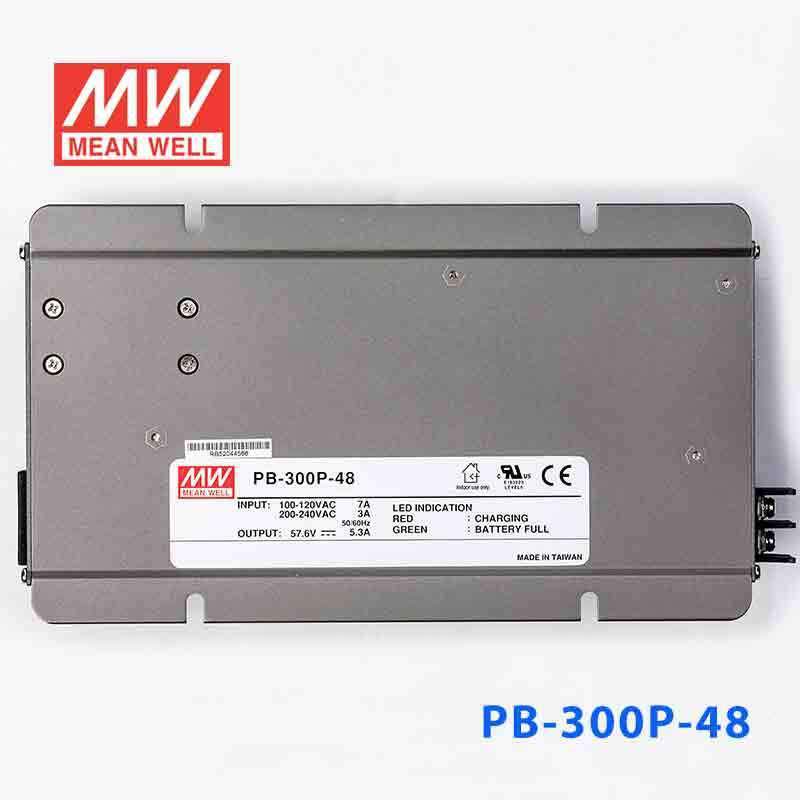

Mean Well PB-300P-48 Battery Chargers 300W 57.6V 3.2A - 3 Stage W/PFC
$101.16 USD
Unit price /
Unavailable
EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- ✓3 stage charging
- ✓AC 115/230VAC selected by switch
- ✓Built-in passive PFC function compliance to BS EN/EN61000-3-2 Class A (option)
- ✓Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
- ✓2 color LED loading indicator
- ✓Low cost, High reliability
- ✓2 color LED loading indicator
- ✓FAN on/off control (Depends on charging current
- ✓3 years warranty
-
BrandMean Well
-
SeriesPB Series
-
Power Rating300 Watt
-
Output Voltage57.6 Volt
-
Rated Current3.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty3 Year
-
Length9.96 in
-
Width5.32 in
-
Height1.91 in
-
Weight3.2 lb
::specification::
