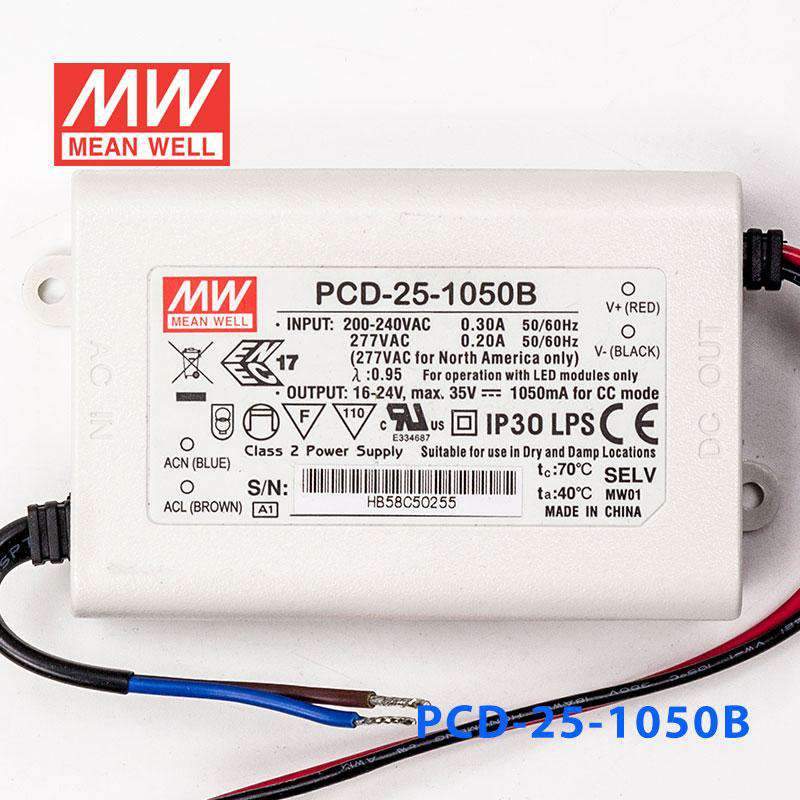

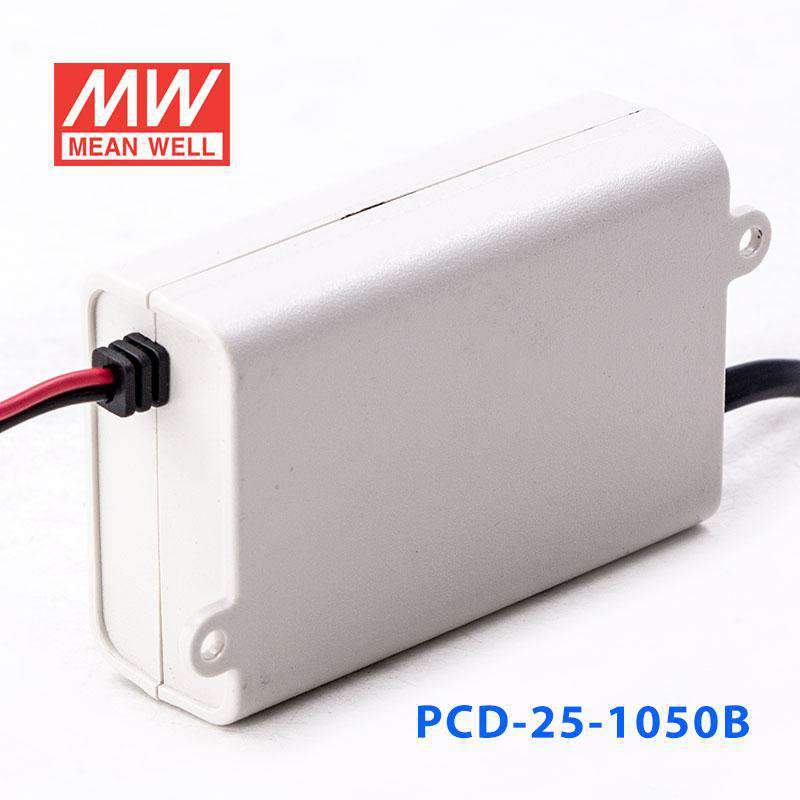

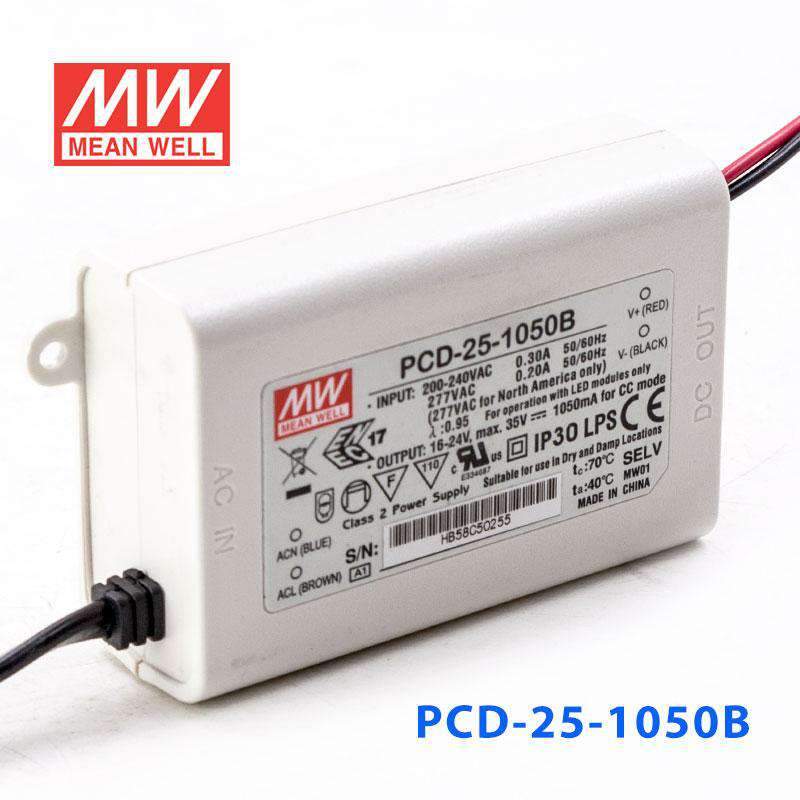

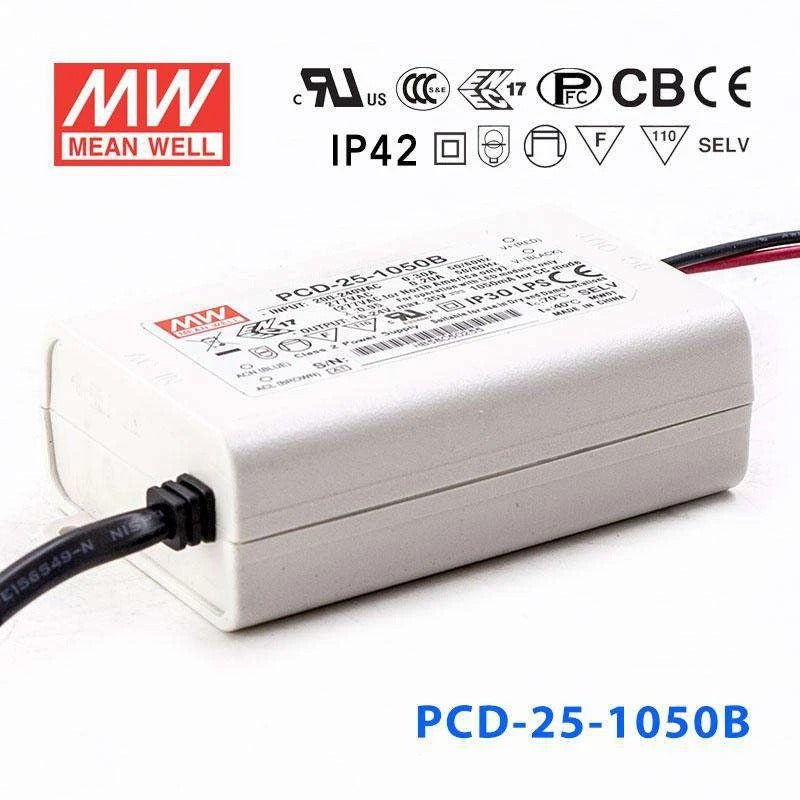

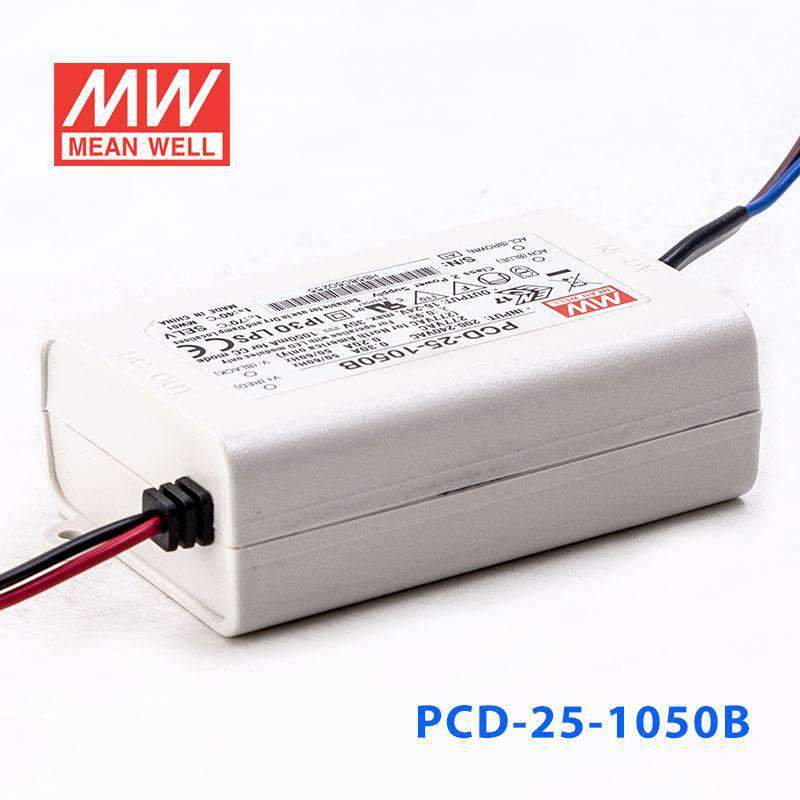

Mean Well PCD-25-1050B Power Supply 25W 1050mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-25-1050B Power Supply 25W 1050mA
The PCD-25 is a 25W Mean Well power converter (input range: 40~58V).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBSI,CB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can the PCD-25-1050B drive 1050mA LED downlights?
Yes, when the downlight is a constant-current 1050mA load and the total forward voltage stays within 16-24V. The unit is rated for 25.2W, so the connected LED load needs to stay within that limit.
Is this driver appropriate for 1050mA signage modules?
It can be used for signage modules if the module set is specified for 1050mA constant current and falls within the 16-24V constant-current range. This B version is designed for 180-295VAC input.
Can I use the PCD-25-1050B with a small LED array?
Yes, for a small LED array that requires 1050mA constant current and whose total forward voltage is between 16V and 24V. It is not intended for constant-voltage LED products because the operating mode is constant current.
What matters most for compatibility with this 1050mA driver?
The LED load needs to match 1050mA constant current and stay within the 16-24V constant-current output range. The number of LEDs depends on each LED forward voltage, so compatibility is based on total forward voltage rather than a fixed count.
Is the PCD-25-1050B suitable for protected indoor environments?
Yes, its IP42 plastic casing and -30C to +60C operating range fit protected indoor conditions. IP42 does not indicate a fully sealed outdoor enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-25 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-25-700B Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.80 | View |
| Mean Well PCD-25-700A Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.13 | View |
| Mean Well PCD-25-350B Power Supply 25W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-350A Power Supply 16W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-1400B Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.13 | View |
| Mean Well PCD-25-1400A Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050A Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
