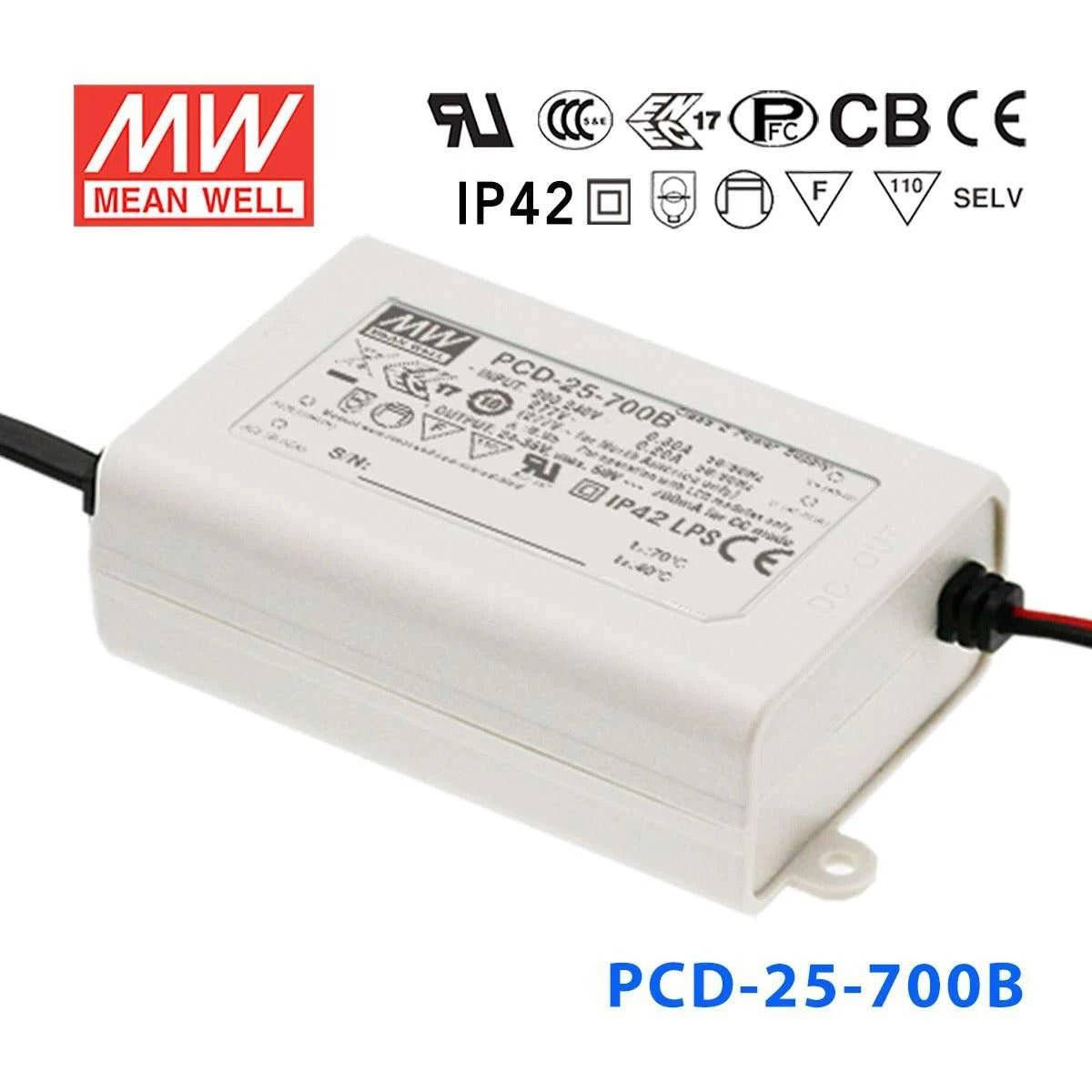

Mean Well PCD-25-700B Power Supply 25W 700mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-25-700B Power Supply 25W 700mA
The PCD-25 is a 25W Mean Well power converter (input range: 40~58V).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBSI,CB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can the PCD-25-700B be used for a constant current LED downlight?
Yes, if the downlight is built for 700mA constant current input and its LED load operates within 24-36V. This driver is rated at 25.2W, so the fixture must also stay within that output power.
Is this driver appropriate for small signage light modules?
It can be appropriate for signage modules that need 700mA constant current and fall within the 24-36V constant current range. It is not meant for constant voltage LED products that expect a fixed DC voltage output.
Can I use the PCD-25-700B with a compact LED array for general lighting?
Yes, for compact LED arrays that require 700mA constant current and have a total forward voltage between 24V and 36V. The load also needs to stay within the driver's 25.2W rating.
What should I check before pairing LEDs with the PCD-25-700B?
Confirm that the LEDs are intended for a constant current driver at 700mA and that their combined forward voltage is within 24-36V. The number of LEDs depends on each LED's forward voltage, so there is no single LED count that applies to every design.
How is the PCD-25-700B different from nearby models in the same series?
The PCD-25 family steps through 350mA at 40-58V and 20.3W, 700mA at 24-36V and 25.2W, 1050mA at 16-24V and 25.2W, and 1400mA at 12-18V and 25.2W. The PCD-25-700B is the 700mA, 24-36V version with 180-295VAC input.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-25 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-25-700A Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.13 | View |
| Mean Well PCD-25-350B Power Supply 25W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-350A Power Supply 16W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-1400B Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.13 | View |
| Mean Well PCD-25-1400A Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050B Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050A Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
