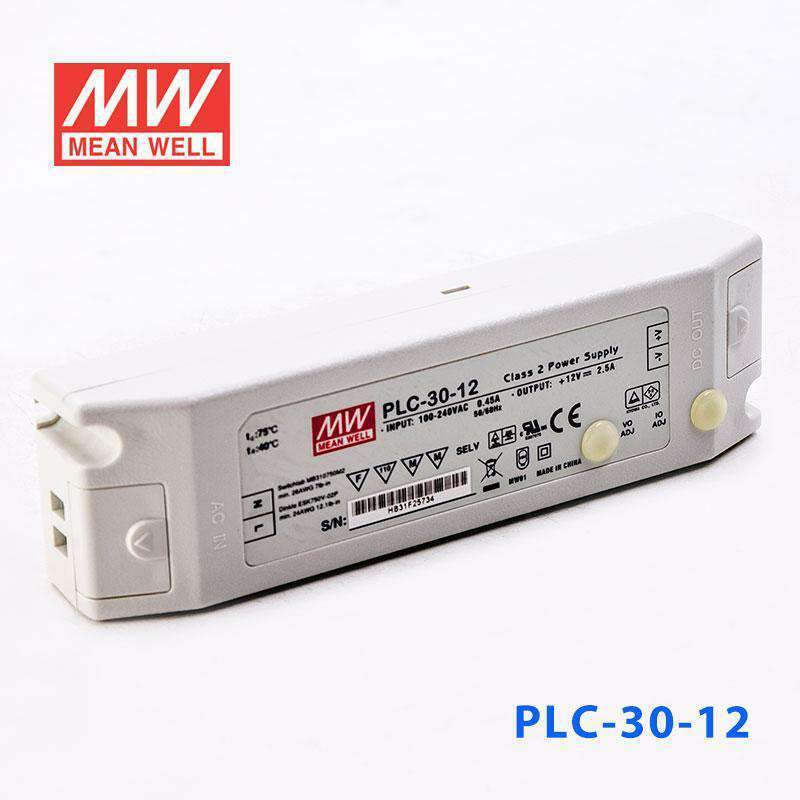

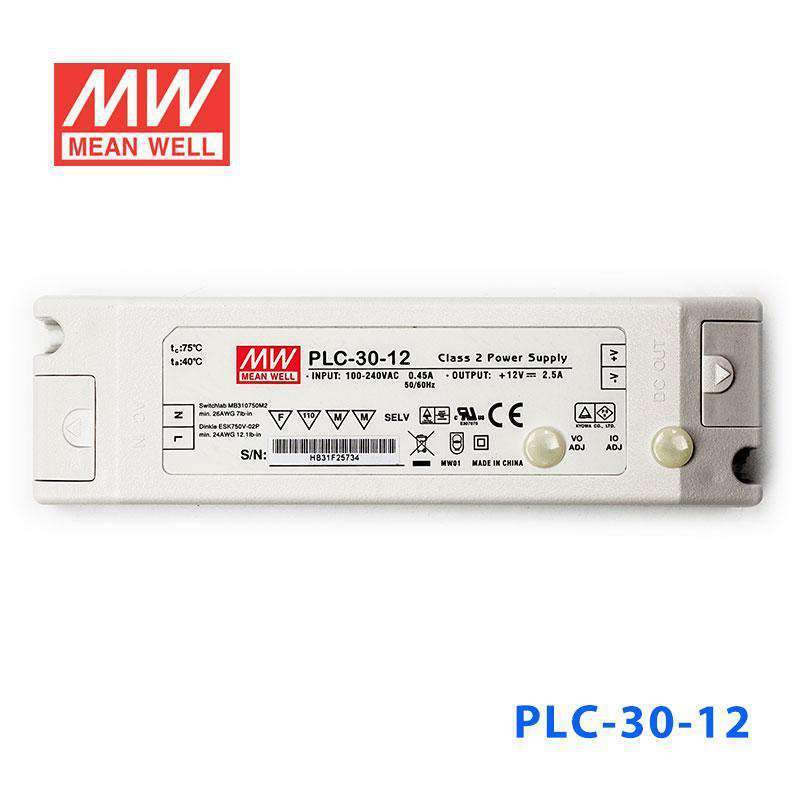

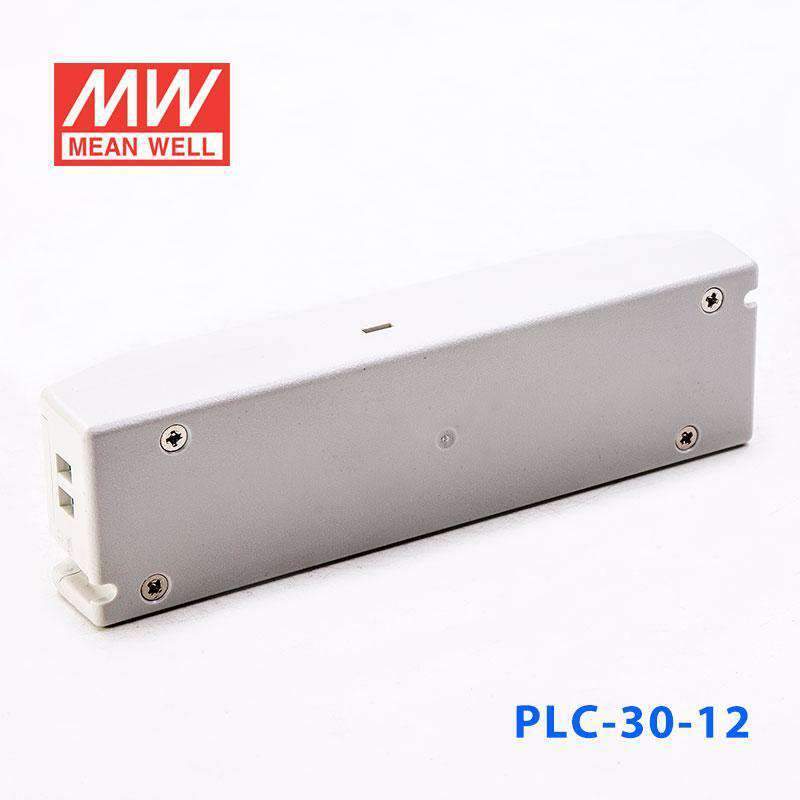

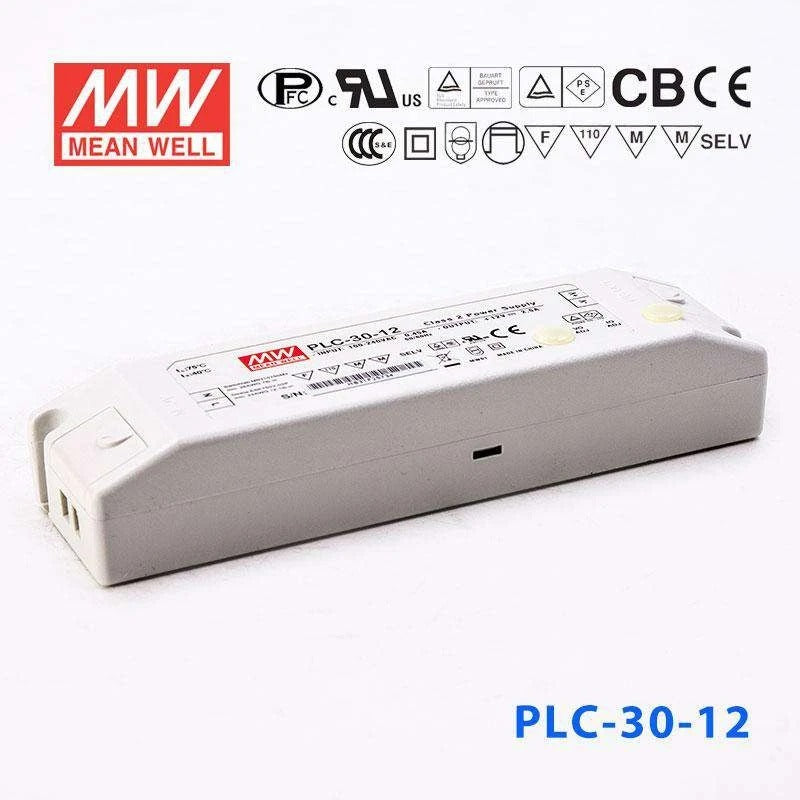

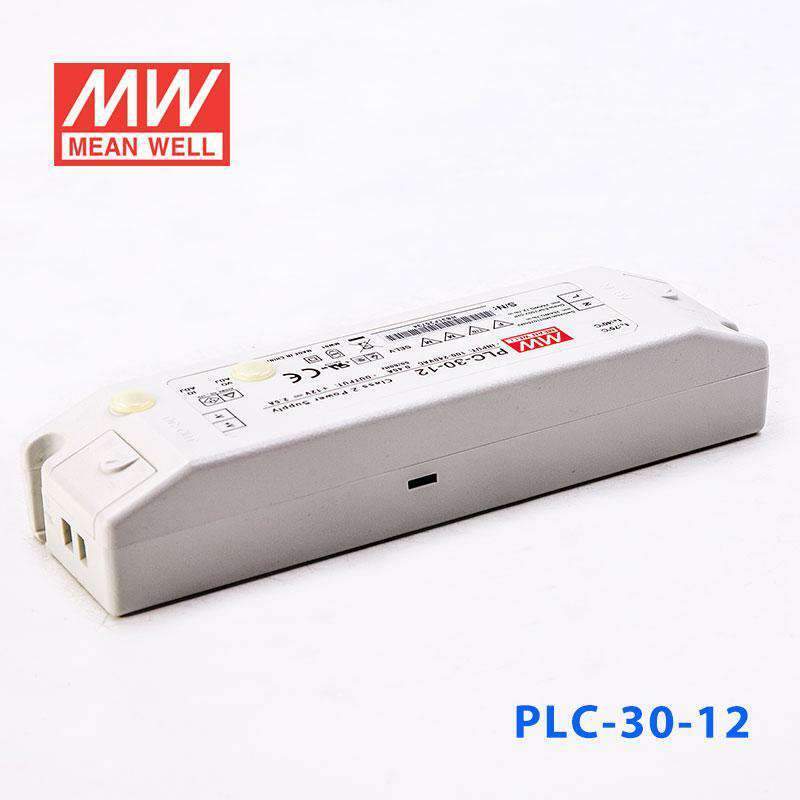

Mean Well PLC-30-12 Power Supply 30W 12V - PFC
The PLC-30 is a 30W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL1310, TUV EN61347-1, EN61347-2-13, GB19510.14,GB19510.1 , CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,CSA,EAC,PSE,TUV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length6.3 in
-
Width1.81 in
-
Height1.18 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well PLC-30-12?
The PLC-30-12 is a 30W power supply with a 12V DC output and a rated current of 2.5A. It is designed as a constant-voltage unit with built-in constant current limiting. This makes it suitable for 12V loads that need a stable DC supply within that power range.
What kinds of applications is the PLC-30-12 typically used for?
This model is generally suited to low-power 12V LED lighting and similar DC applications that fit within its 30W, 2.5A rating. Its constant-voltage design makes it a practical choice for equipment that expects a regulated 12V DC source. Buyers usually consider it for compact indoor systems where stable output and protected operation matter.
What makes the PLC-30-12 different from a basic 12V power supply?
The PLC-30-12 includes active power factor correction, with PF above 0.9 at 75% load or higher, which is a stronger feature set than many basic 12V supplies. It also has built-in short circuit, over current, over voltage, and over temperature protection. In addition, it offers adjustable output voltage and current level plus C.V.+C.C. operation for more controlled performance.
Can the PLC-30-12 be used in demanding temperature conditions?
This model is rated for operation from -30°C to 50°C. That gives it a wider usable temperature range than many light-duty indoor supplies. Buyers should still ensure the surrounding equipment stays within the product's specified operating conditions.
Is the PLC-30-12 a good fit when efficiency and compliance features matter?
Yes. The PLC-30-12 offers efficiency up to 89% and includes active PFC, which can be important in commercial and professional lighting applications. It is also described as a Class 2 power unit that passes LPS, with isolation class II construction and a fully isolated plastic case.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLC-30 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLC-30-9 Power Supply 30W 9V - PFC | 29.7W | 9V | 3.3A | Indoor | $25.12 | View |
| Mean Well PLC-30-48 Power Supply 30W 48V - PFC | 30.24W | 48V | 0.63A | Indoor | $23.81 | View |
| Mean Well PLC-30-36 Power Supply 30W 36V - PFC | 30.24W | 36V | 0.84A | Indoor | $25.12 | View |
| Mean Well PLC-30-27 Power Supply 30W 27V - PFC | 30.24W | 27V | 1.12A | Indoor | $23.81 | View |
| Mean Well PLC-30-24 Power Supply 30W 24V - PFC | 30W | 24V | 1.25A | Indoor | $23.81 | View |
| Mean Well PLC-30-20 Power Supply 30W 20V - PFC | 30W | 20V | 1.5A | Indoor | $25.12 | View |
| Mean Well PLC-30-15 Power Supply 30W 15V - PFC | 30W | 15V | 2A | Indoor | $25.12 | View |
