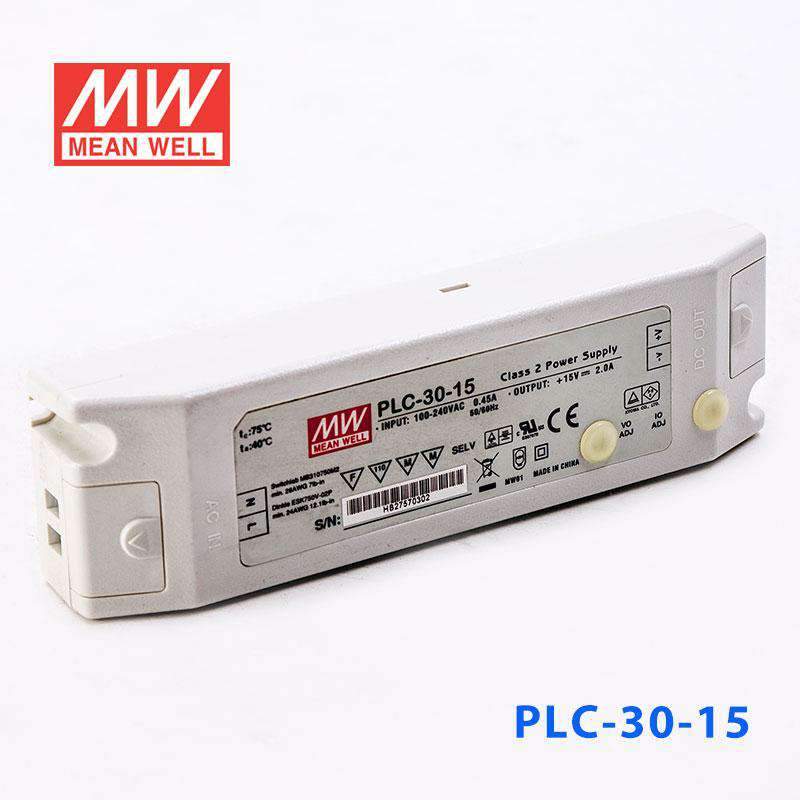

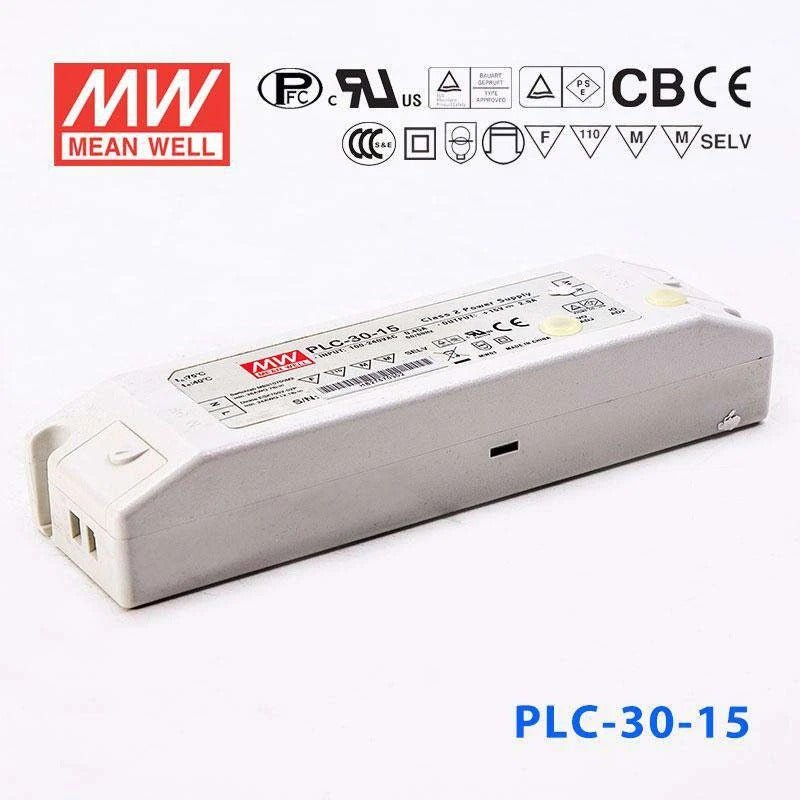

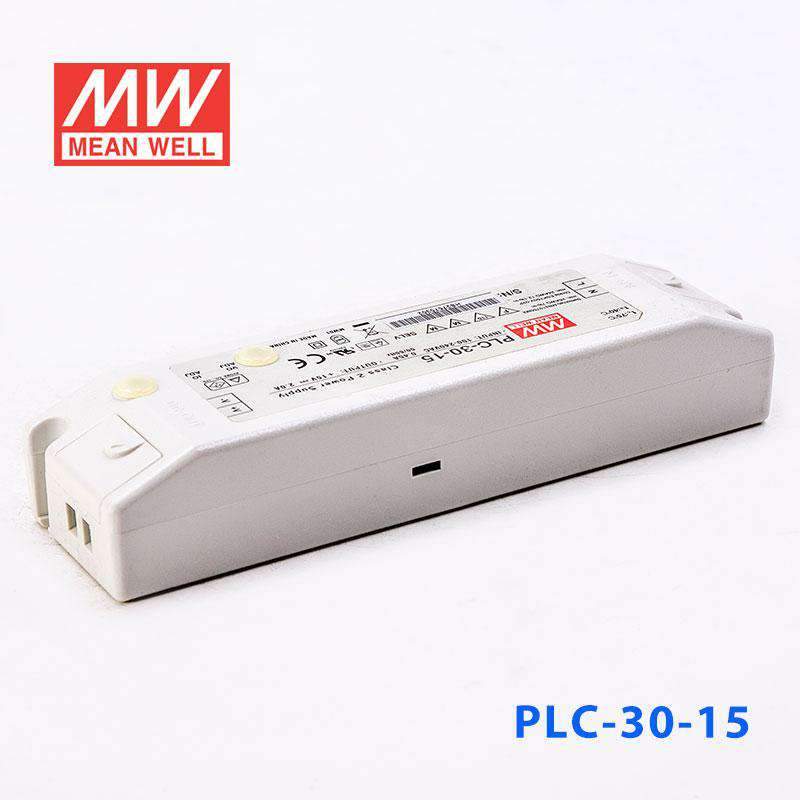

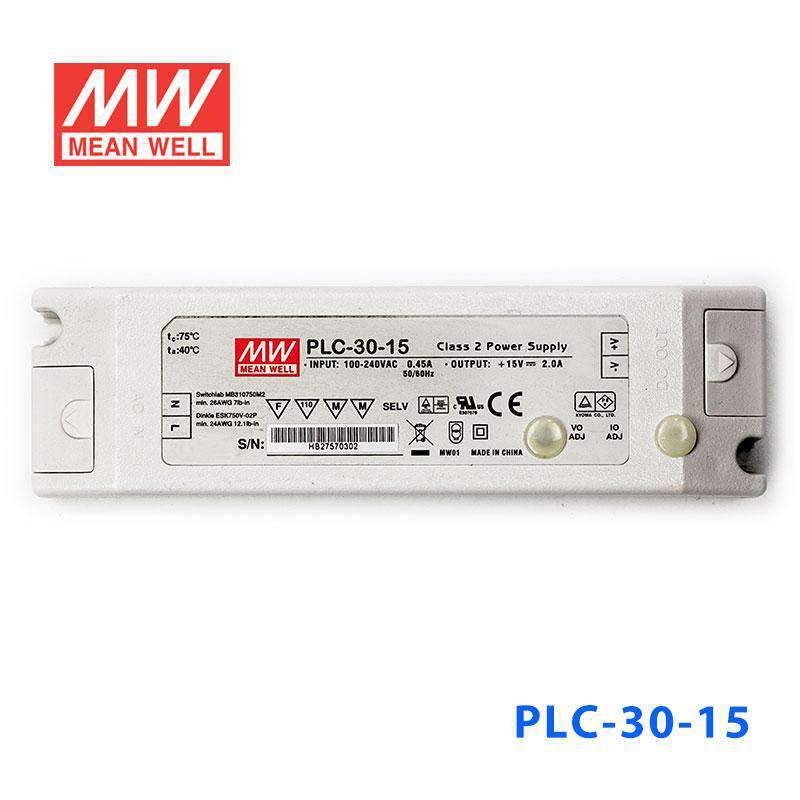

Mean Well PLC-30-15 Power Supply 30W 15V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-30-15 Power Supply 30W 15V - PFC
The PLC-30 is a 30W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL1310, TUV EN61347-1, EN61347-2-13, GB19510.14,GB19510.1 , CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,CSA,EAC,PSE,TUV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length6.3 in
-
Width1.81 in
-
Height1.18 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What are the main output ratings of the Mean Well PLC-30-15?
The PLC-30-15 is a 30W power supply with a 15V DC output and a rated current of 2.0A. This model also includes adjustable output voltage and current level, which is useful when a design needs some setup flexibility within the unit's supported operating range.
What kinds of applications is the PLC-30-15 typically suited for?
This model is generally suited to equipment that needs a regulated 15V DC supply up to 30W. Its constant-voltage output with built-in constant-current limiting makes it a practical fit for industrial, commercial, and lighting-related systems where a stable 15V source is required.
Does the Mean Well PLC-30-15 include power factor correction?
Yes. The PLC-30-15 has built-in active PFC, with a power factor above 0.9 at 75% load or higher according to the product data. That is a useful differentiator for buyers looking for improved input-side power quality in professional or commercial applications.
What operating temperature range is specified for the PLC-30-15?
The specified operating temperature range is -30°C to 50°C. This gives the PLC-30-15 a useful span for demanding indoor equipment environments, provided the rest of the system is designed to stay within those limits.
Is the PLC-30-15 compatible with systems that require a Class 2 isolated power unit?
The product description states that the PLC-30-15 is a Class 2 power unit, passes LPS, and uses isolation class II construction. That makes it relevant for buyers who need an isolated enclosed supply and want to confirm those protection and compliance-related characteristics before selection.
