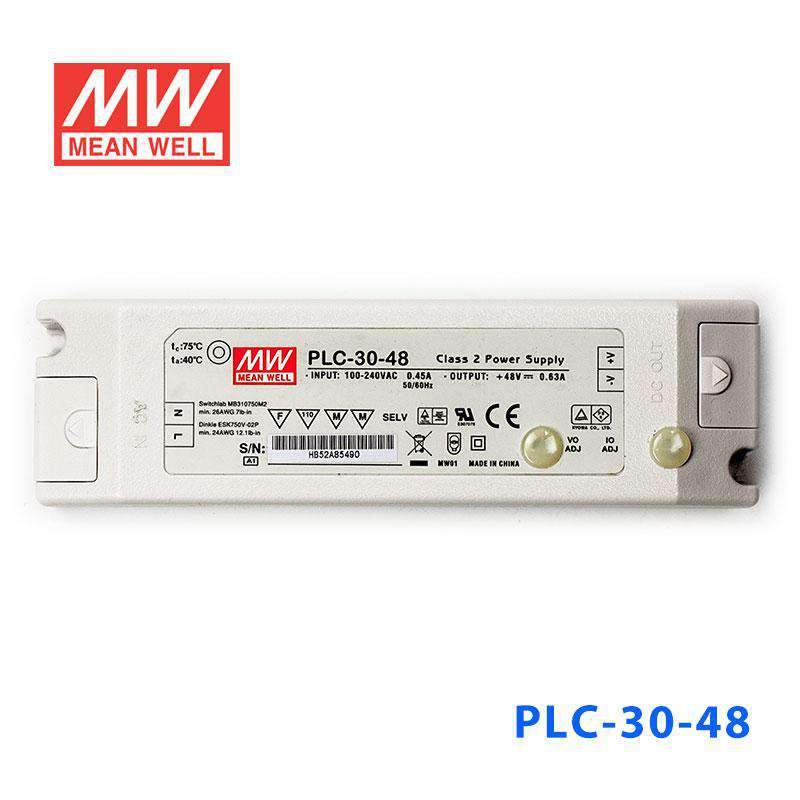

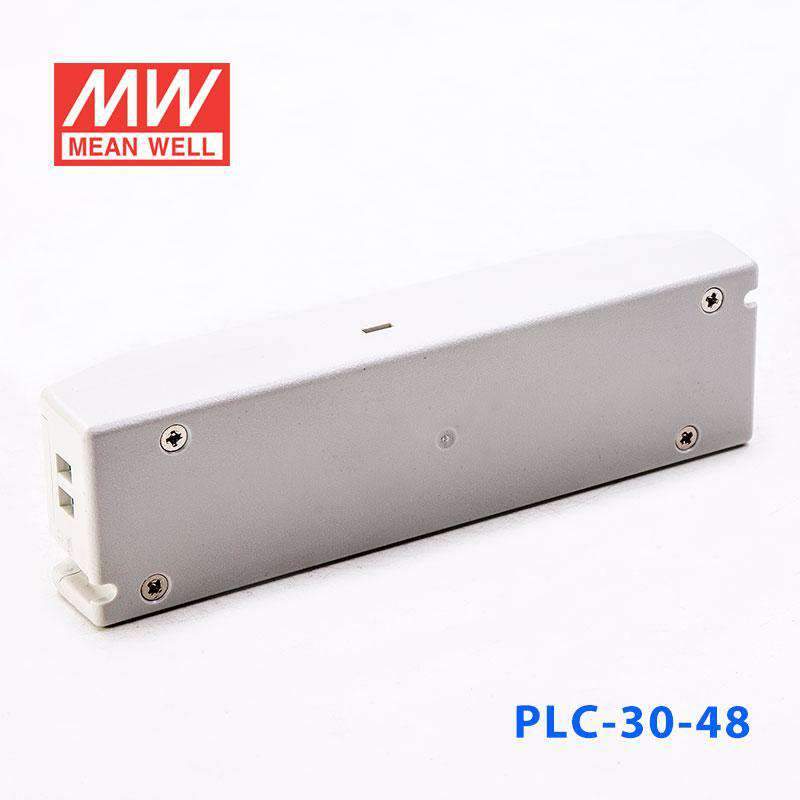

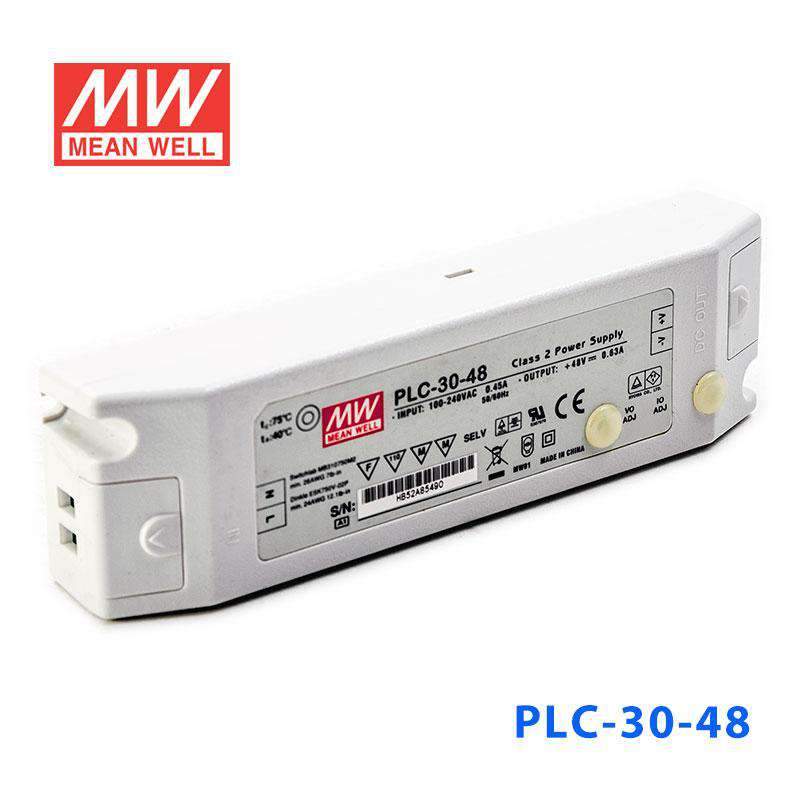

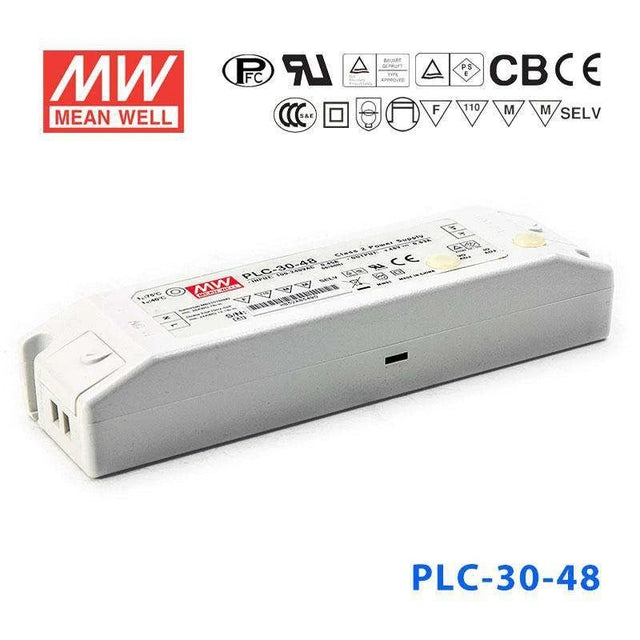

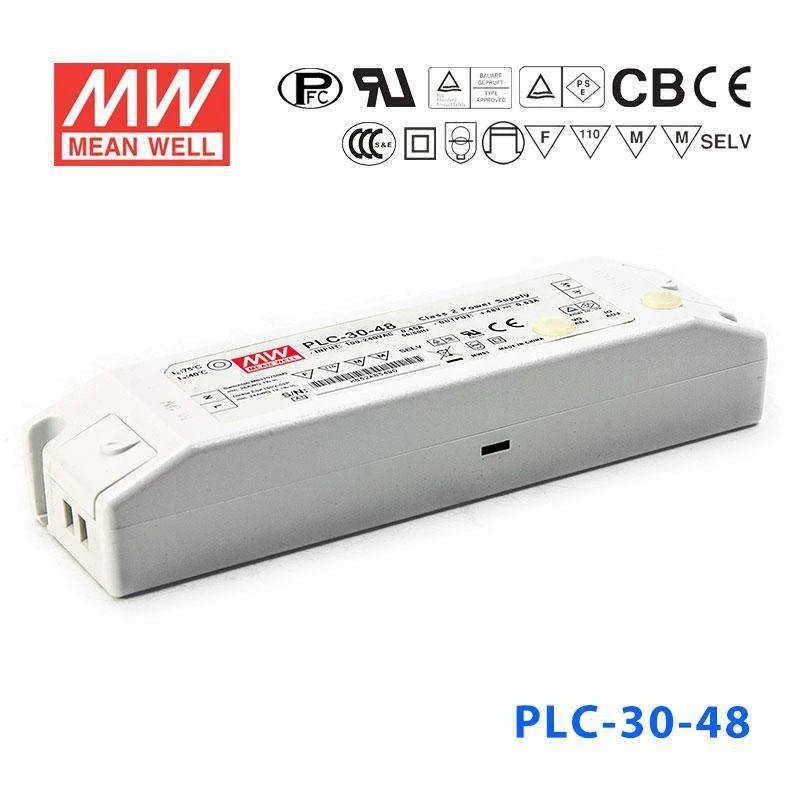

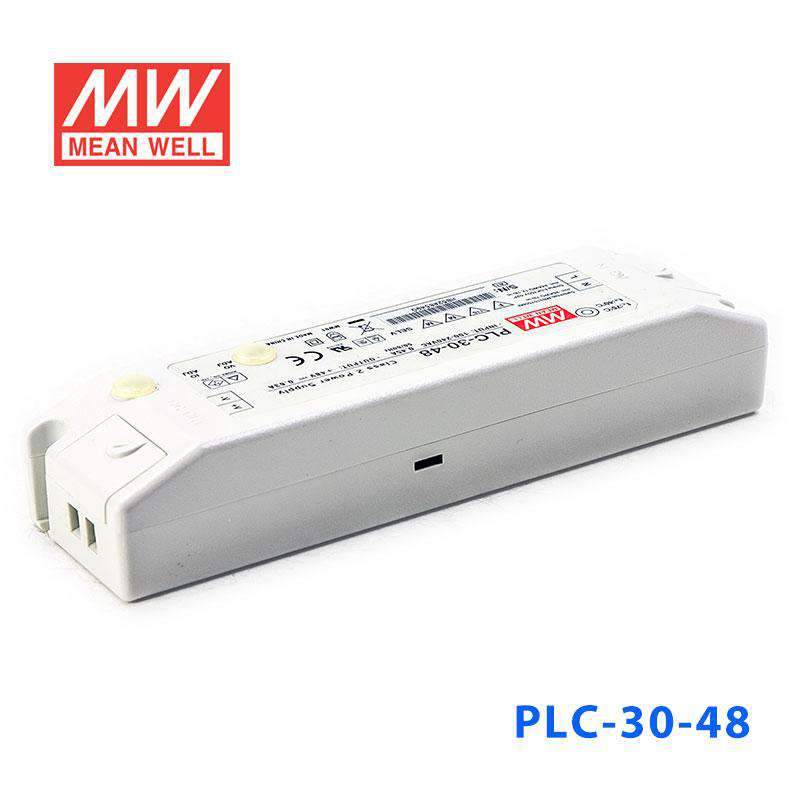

Mean Well PLC-30-48 Power Supply 30W 48V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-30-48 Power Supply 30W 48V - PFC
The PLC-30 is a 30W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL1310, TUV EN61347-1, EN61347-2-13, GB19510.14,GB19510.1 , CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating30.24 Watt
-
Output Voltage48 Volt
-
Rated Current0.63 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,CSA,EAC,PSE,TUV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length6.3 in
-
Width1.81 in
-
Height1.18 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What output does the Mean Well PLC-30-48 provide?
The PLC-30-48 is a 30W power supply with a 48V DC output and a rated current of 0.63A. This model also includes constant current limiting in C.V.+C.C. mode, which can help in applications that need controlled output behavior.
Is the PLC-30-48 suitable for LED driver applications?
Yes. This model is positioned for LED driver use and combines constant voltage output with built-in constant current limiting. That makes it relevant for 48V LED power applications where buyers want a dedicated LED-focused power supply rather than a generic supply.
Does the PLC-30-48 support dimming control?
No. The listed dimming control for this model is none. If your project requires built-in dimming functionality, you would need to consider a different driver or power supply option.
What makes the PLC-30-48 different from basic non-PFC power supplies?
The PLC-30-48 includes an active PFC function, with power factor above 0.9 at 75% load or higher. It is also specified for up to 89% efficiency, which helps distinguish it from simpler low-power supplies that do not include power factor correction.
What operating environment is this model rated for?
The PLC-30-48 is rated for ambient temperatures from -30°C to 50°C. It uses free air convection for cooling and has a fully isolated plastic case, so buyers should match it to applications that stay within that temperature range.
What protection and warranty coverage does the PLC-30-48 include?
This model includes short circuit, over current, over voltage, and over temperature protection. It also carries a 2-year warranty, which is useful for buyers comparing lifecycle risk across compact 48V power supplies.
