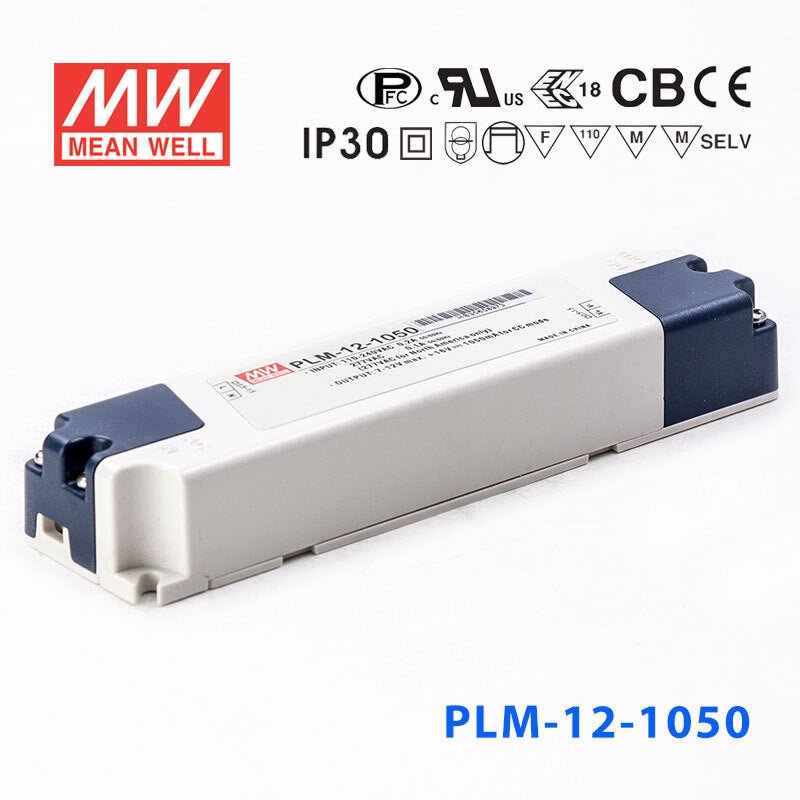

Mean Well PLM-12-1050, 1050mA Constant Current with PFC - Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLM-12-1050, 1050mA Constant Current with PFC - Terminal ...
The PLM-12 is a 12W Mean Well DIN rail power converter with a 145mm profile (input range: 110~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ 145mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 110~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1 (for E type only) ,EAC TP TC 004, IP30
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLM Series
-
Power Rating12.6 Watt
-
Output Voltage16 Volt
-
Rated Current1.05 Ampere
-
Input Voltage110V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.5 in
-
Height0.87 in
-
Weight0.28 lb
::specification::
Frequently Asked Questions
Can I use the PLM-12-1050 for a 1050mA LED downlight?
Yes, if the downlight is designed for constant current operation at 1050mA and its LED load falls within the 7-12V constant current range. This is a 12.6W constant current driver, so it is intended for LED loads that match that current requirement rather than constant voltage products.
Is the PLM-12-1050 suitable for LED signage modules?
It can be suitable for signage modules that require 1050mA constant current and operate within the 7-12V CC range. It is not the right match for constant voltage signage modules because this model regulates current, not fixed output voltage.
Can this driver run a small high-current LED array?
Yes, this model is suited to small LED arrays built for 1050mA constant current as long as the total forward voltage stays within 7-12V. With a 12.6W rating, it fits lower-voltage constant current arrays rather than larger higher-voltage assemblies.
How do I know if the PLM-12-1050 is compatible with my LEDs?
Check that your LEDs are specified for 1050mA constant current and that their combined forward voltage falls within the 7-12V CC output range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count for this driver.
Is the PLM-12-1050 appropriate for cold or warm operating areas?
It is rated for operation from -30°C to +50°C, so it covers a fairly wide ambient range. The driver uses a fully isolated plastic case with Class II design, but no IP rating is listed, so enclosure requirements should be considered for the final environment.
