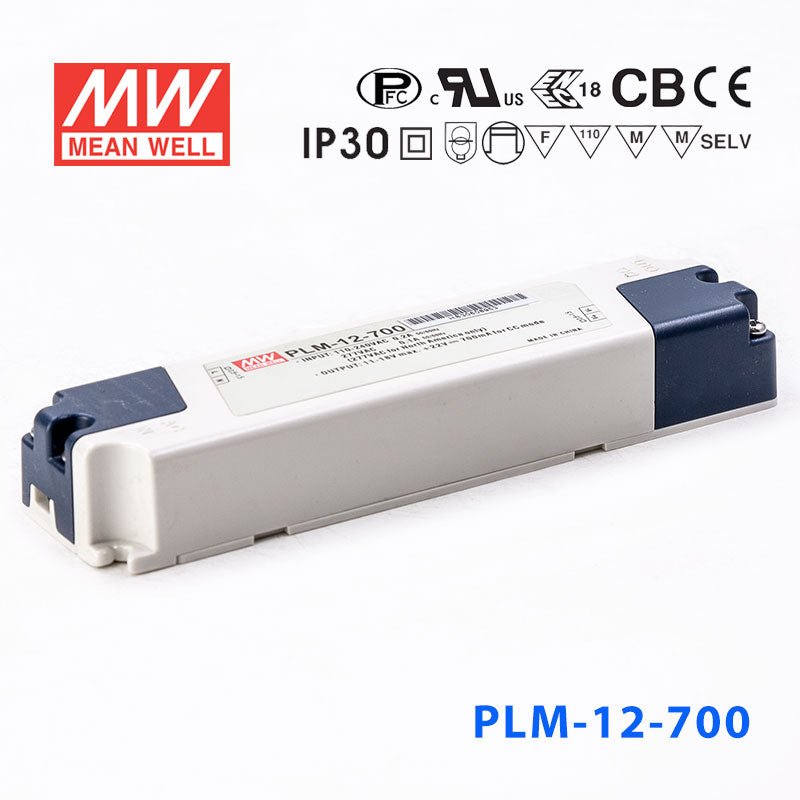

Mean Well PLM-12-700, 700mA Constant Current with PFC - Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLM-12-700, 700mA Constant Current with PFC - Terminal Block
The PLM-12 is a 12W Mean Well DIN rail power converter with a 145mm profile (input range: 110~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ 145mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 110~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1 (for E type only) ,EAC TP TC 004, IP30
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLM Series
-
Power Rating12.6 Watt
-
Output Voltage22 Volt
-
Rated Current0.7 Ampere
-
Input Voltage110V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.5 in
-
Height0.87 in
-
Weight0.28 lb
::specification::
Frequently Asked Questions
Can the PLM-12-700 be used with a 700mA LED downlight?
Yes, if the downlight is built for 700mA constant current and its LED load stays within the 11-18V CC range. This is a 12.6W constant current driver, not a constant voltage power supply.
Is the PLM-12-700 suitable for signage modules that need 700mA?
It can be, as long as the signage module is a constant current design rated at 700mA and the total forward voltage falls within 11-18V. It is not intended for fixed-voltage signage modules that expect a constant 12V or 24V source.
Can I use this driver for a small LED array with mid-range forward voltage?
Yes, this model fits small LED arrays that require 700mA constant current and have a combined forward voltage in the 11-18V range. Its 12.6W rating keeps it in the compact-driver class rather than the higher-power PLM families.
What makes the PLM-12-700 compatible or incompatible with an LED module?
Compatibility depends on the LED module needing 700mA constant current and having a total forward voltage within the 11-18V CC range. The number of LEDs depends on each LED's forward voltage, so it should be calculated from the LED data rather than assumed from the driver model.
Can the PLM-12-700 handle cooler and warmer ambient conditions?
It is specified for -30°C to +50°C operation, which supports a wide ambient range for protected applications. The fully isolated plastic case and Class II design are useful features, but no IP rating is provided for direct exposure decisions.
