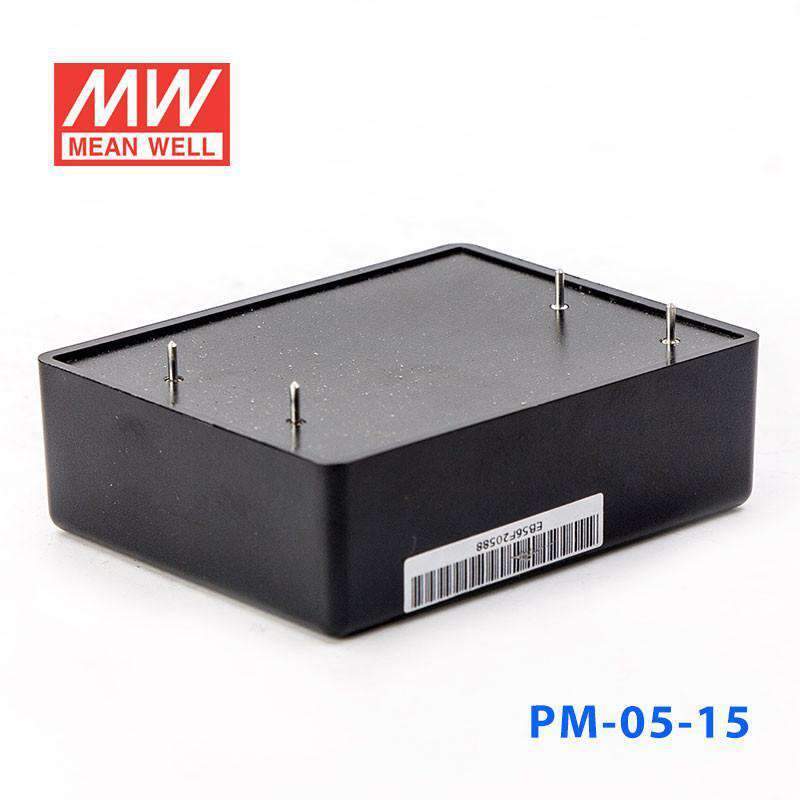

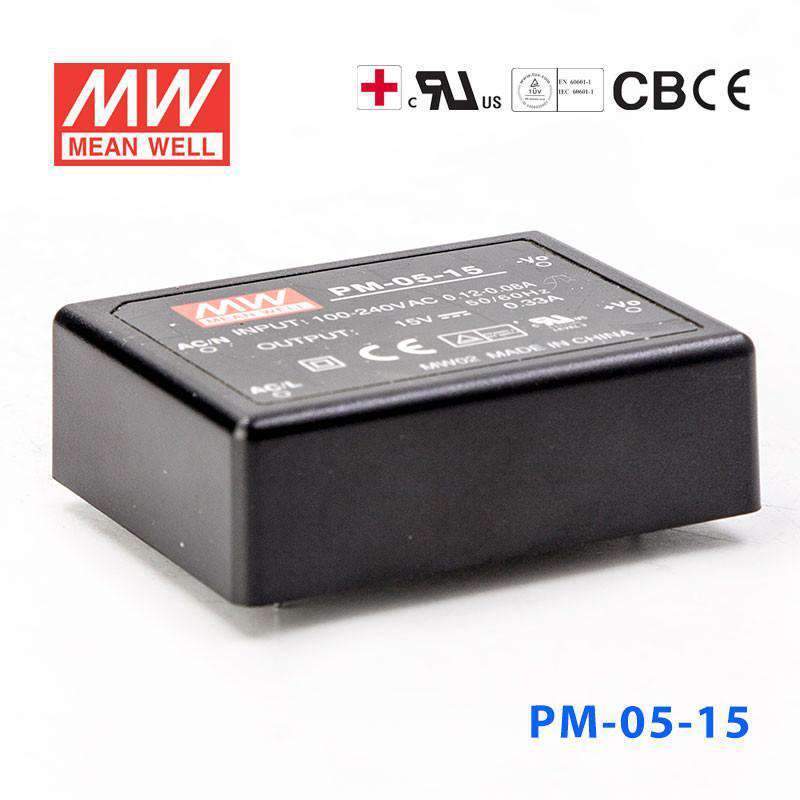

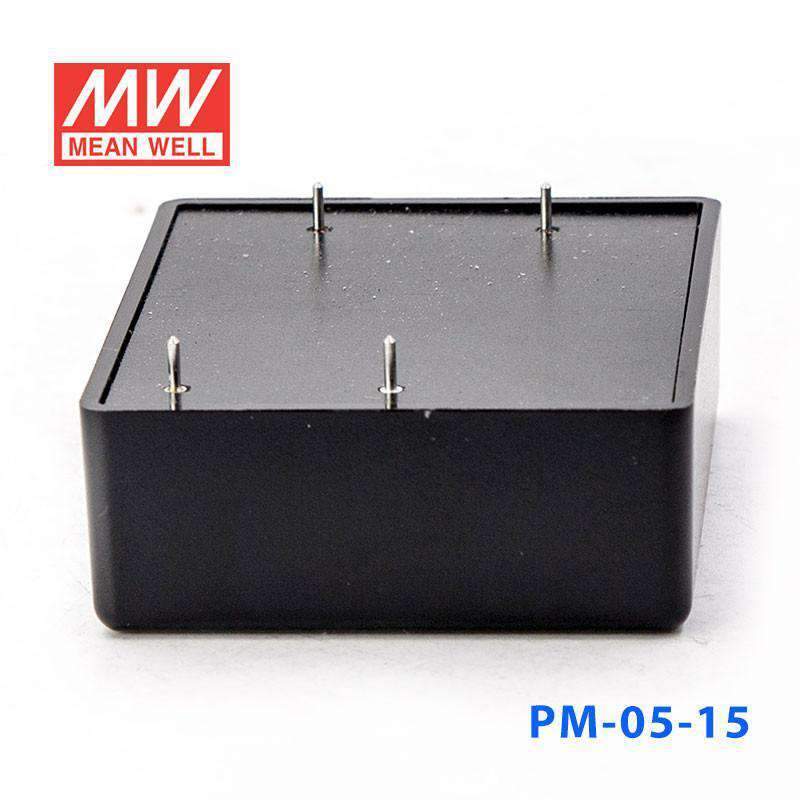

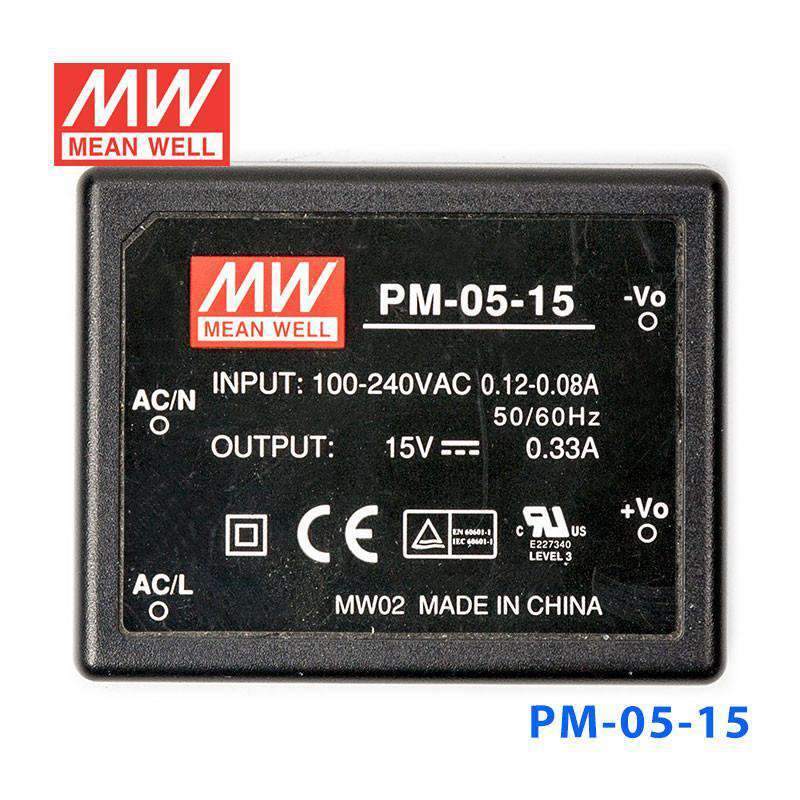

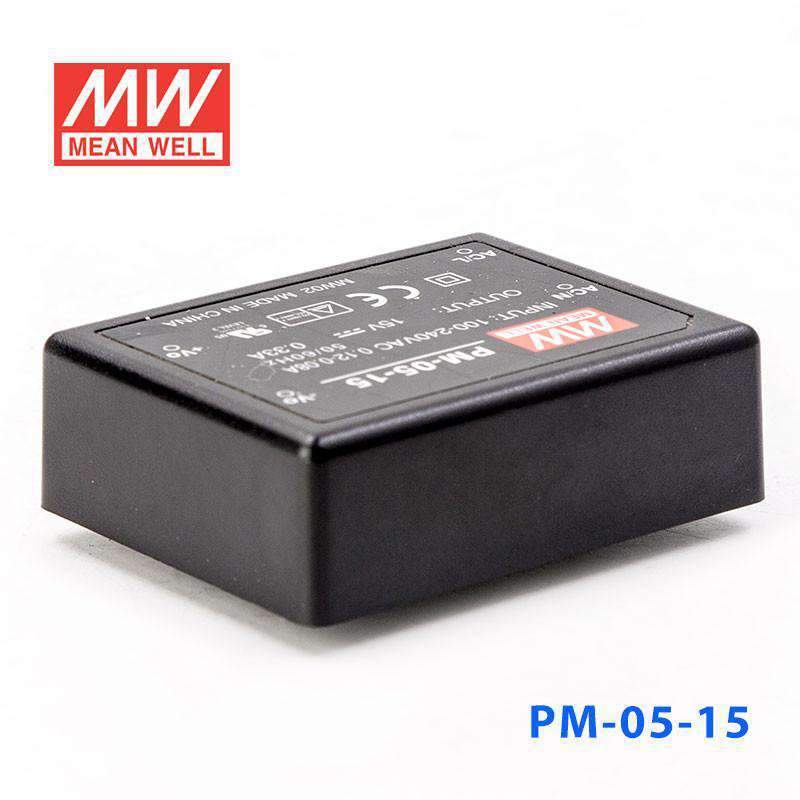

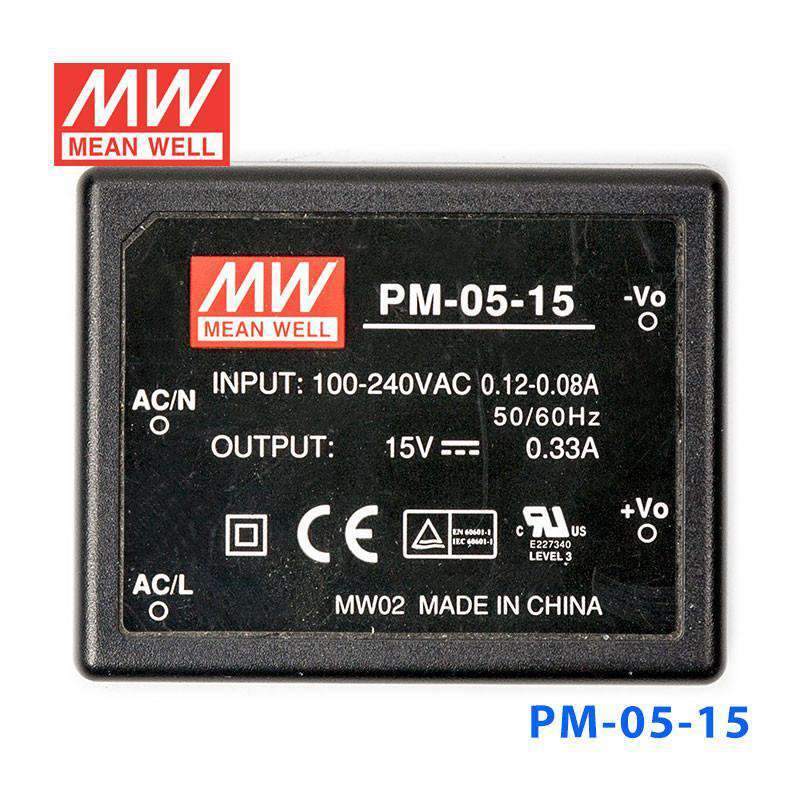

Mean Well PM-05-15 Power Supply 5W 15V
The PM-05 is a 5W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: SAFETY & EMC (Note 4) ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating4.95 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.47 in
-
Width1.97 in
-
Height0.78 in
-
Weight0.17 lb
::specification::
Frequently Asked Questions
Can I use the PM-05-15 for a small 15V control board or instrumentation circuit?
Yes, if the device requires constant 15V DC and the load stays within 0.33A and 4.95W. That suits lighter-duty industrial or embedded electronics rather than larger 15V loads.
Is the PM-05-15 a fit for 15V sensors, transmitters, or signal-conditioning hardware?
It can work for low-power 15V automation and instrumentation devices that need constant voltage output. The electrical limit is 15V at up to 0.33A, with total output rated at 4.95W.
Can this model power a compact embedded analog or interface board that runs on 15V?
Yes, it is appropriate for embedded or interface electronics built for a 15V DC input, provided the full load remains under 0.33A. Its 4.95W capacity makes it a better match for compact boards than for heavier 15V equipment.
Would the PM-05-15 work for low-power 15V automation accessories inside a control cabinet?
It can be used where the accessory needs a stable 15V constant-voltage supply and modest output current. The deciding factors are the 15V output, 0.33A current limit, and 4.95W power rating.
How does the PM-05-15 compare with the other PM series options shown here?
In the 5W group, the related models are PM-05-12 at 5.04W, 12V, 0.42A; PM-05-24 at 5.52W, 24V, 0.23A; PM-05-3.3 at 4.125W, 3.3V, 1.25A; and PM-05-5 at 5W, 5V, 1A. The higher-power related models are PM-10-12 at 10.2W, 12V, 0.85A; PM-10-15 at 10.05W, 15V, 0.67A; PM-10-24 at 10.08W, 24V, 0.42A; PM-10-3.3 at 8.25W, 3.3V, 2.5A; and PM-10-5 at 10W, 5V, 2A. The 15W group includes PM-15-12 at 15W, 12V, 1.25A; PM-15-15 at 15W, 15V, 1A; PM-15-24 at 15.12W, 24V, 0.63A; PM-15-3.3 at 11.5W, 3.3V, 3.5A; and PM-15-5 at 15W, 5V, 3A. The 20W group includes PM-20-12 at 21.6W, 12V, 1.8A; PM-20-15 at 21W, 15V, 1.4A; PM-20-24 at 22.08W, 24V, 0.92A; PM-20-3.3 at 14.85W, 3.3V, 4.5A; and PM-20-5 at 22W, 5V, 4.4A.
Can the PM-05-15 be used outdoors or in harsh exposed environments?
The operating temperature range is -20°C to +70°C, which supports a wide temperature span in equipment use. However, no IP rating is provided in the listed specs, so it should be considered for protected indoor enclosures rather than directly exposed outdoor conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PM-05 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PM-05-5 Power Supply 5W 5V | 5W | 5V | 1A | Indoor | $18.40 | View |
| Mean Well PM-05-3.3 Power Supply 5W 3.3V | 4.12W | 3.3V | 1.25A | Indoor | $18.40 | View |
| Mean Well PM-05-24 Power Supply 5W 24V | 5.52W | 24V | 0.23A | Indoor | $18.40 | View |
| Mean Well PM-05-12 Power Supply 5W 12V | 5.04W | 12V | 0.42A | Indoor | $18.40 | View |
