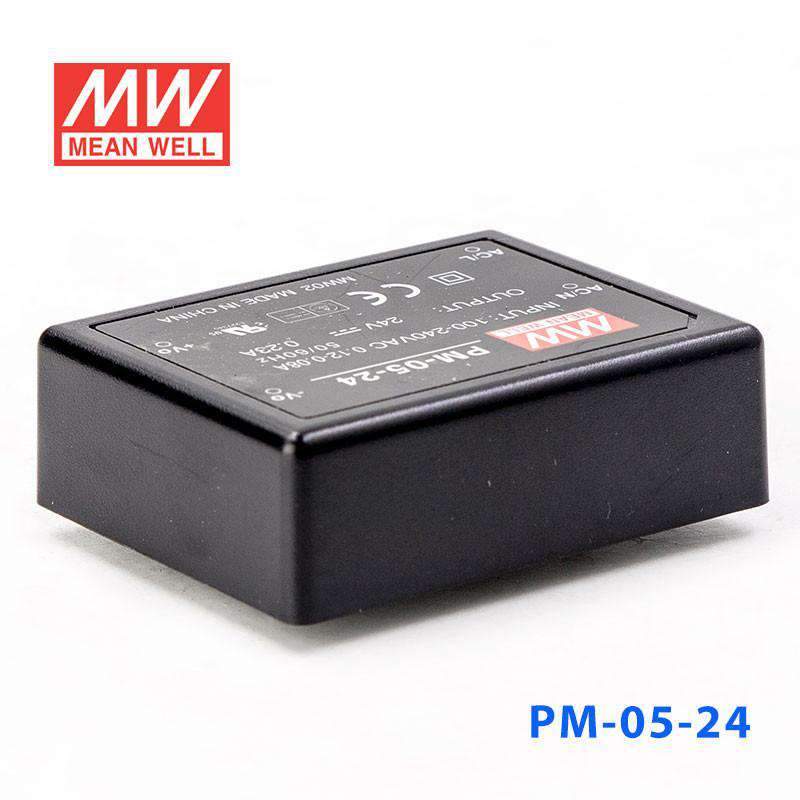

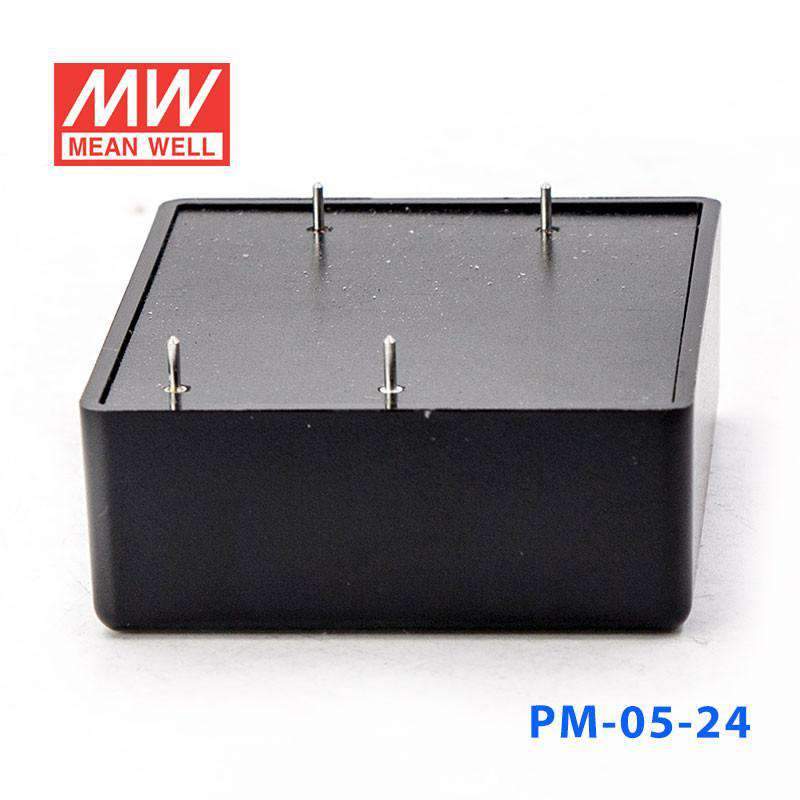

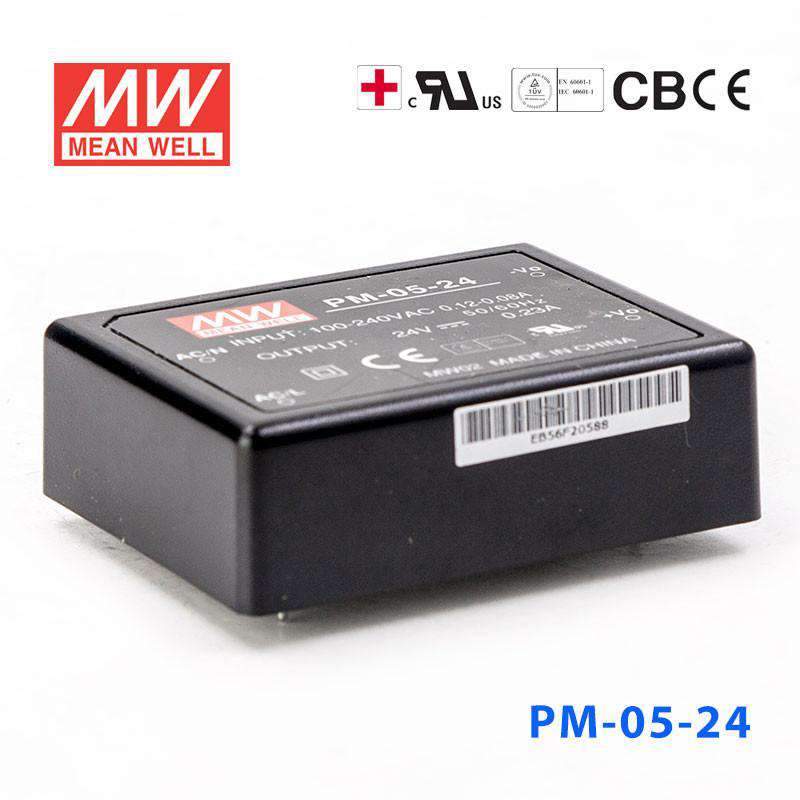

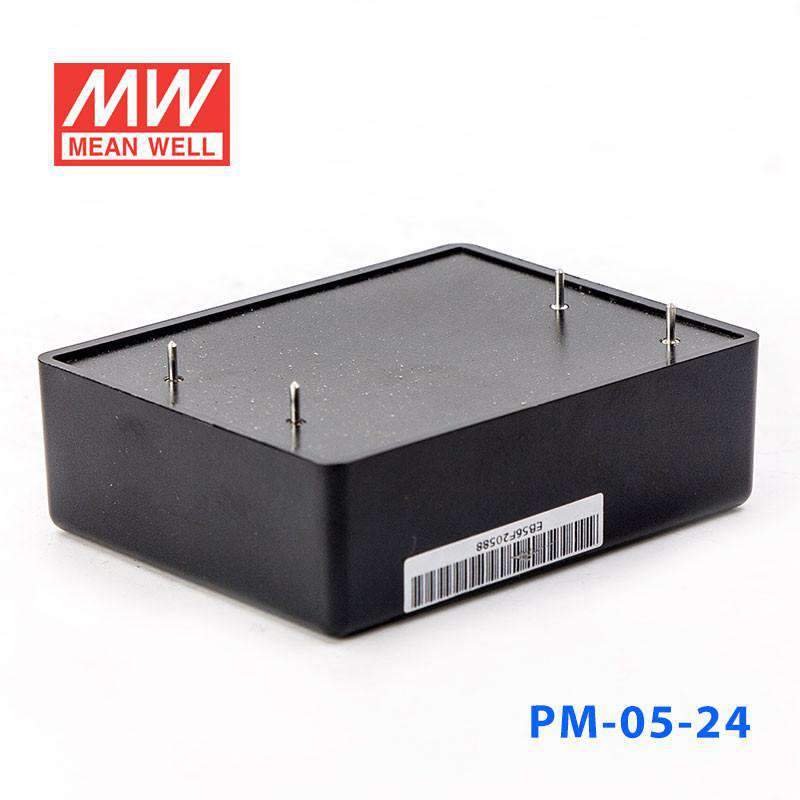

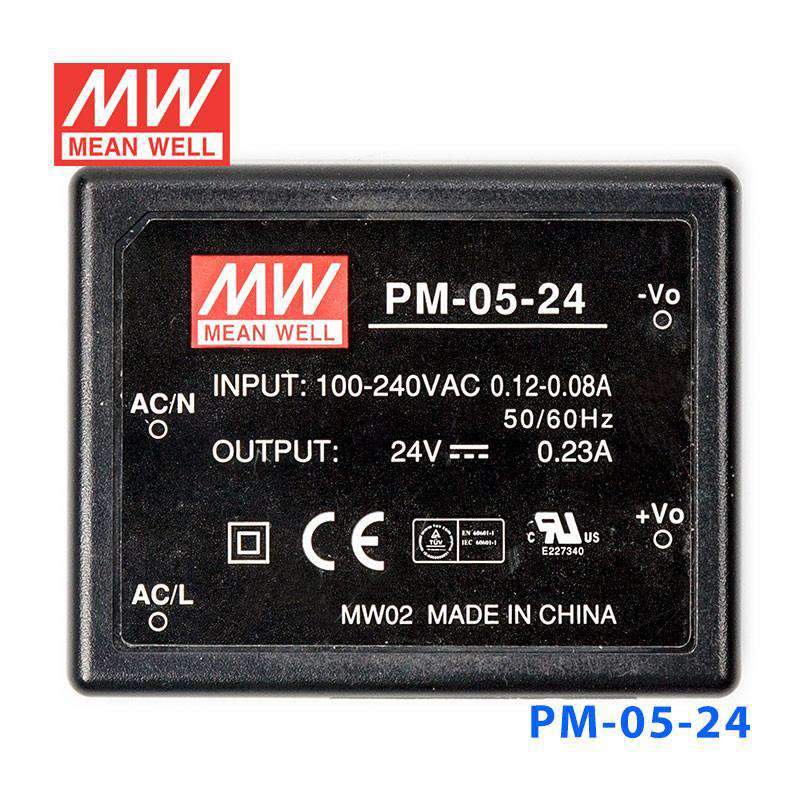

Mean Well PM-05-24 Power Supply 5W 24V
The PM-05 is a 5W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: SAFETY & EMC (Note 4) ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating5.52 Watt
-
Output Voltage24 Volt
-
Rated Current0.23 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.47 in
-
Width1.97 in
-
Height0.78 in
-
Weight0.17 lb
::specification::
Frequently Asked Questions
Can I use the PM-05-24 for a small 24V sensor or transmitter in an industrial panel?
Yes, this model is intended for low-power 24V constant-voltage loads. It provides 24V output at up to 0.23A, with 5.52W total available, which fits small sensors, transmitters, and similar control devices that stay within those limits.
Is the PM-05-24 suitable for powering a compact 24V relay or interface module?
It can be a fit for compact 24V relay or interface hardware when the total load remains at or below 0.23A and 5.52W. Because it is a constant-voltage 24V supply, it is better suited to light control-duty electronics than higher-draw 24V loads.
Can this 24V power supply be used for embedded control electronics that need isolated AC-to-DC conversion?
It is commonly sized for embedded or automation electronics that need a fixed 24V DC rail from an 85-264VAC input. The compact 62.85 × 50.0 × 19.7 mm body also makes it easier to place in small equipment where the load stays within 5.52W.
Would the PM-05-24 work for a small 24V signal conditioning or monitoring circuit?
Yes, if the circuit needs a stable 24V constant-voltage output and draws no more than 0.23A. With 5.52W available, it is aimed at low-power monitoring, signaling, and control circuits rather than larger 24V devices.
How does the PM-05-24 compare with the other 24V models in the PM series?
Within the PM family, the 24V options are PM-05-24 at 5.52W and 0.23A, PM-10-24 at 10.08W and 0.42A, PM-15-24 at 15.12W and 0.63A, and PM-20-24 at 22.08W and 0.92A. All are 24V constant-voltage models, so the main difference is how much output current and total power each one can provide.
Is the PM-05-24 suitable for outdoor or harsh-environment use?
The listed specs include an operating temperature range of -20°C to +70°C, but no IP rating is provided. That means the temperature range is defined, but exposed outdoor use or wet locations should not be assumed from the published specs alone.
