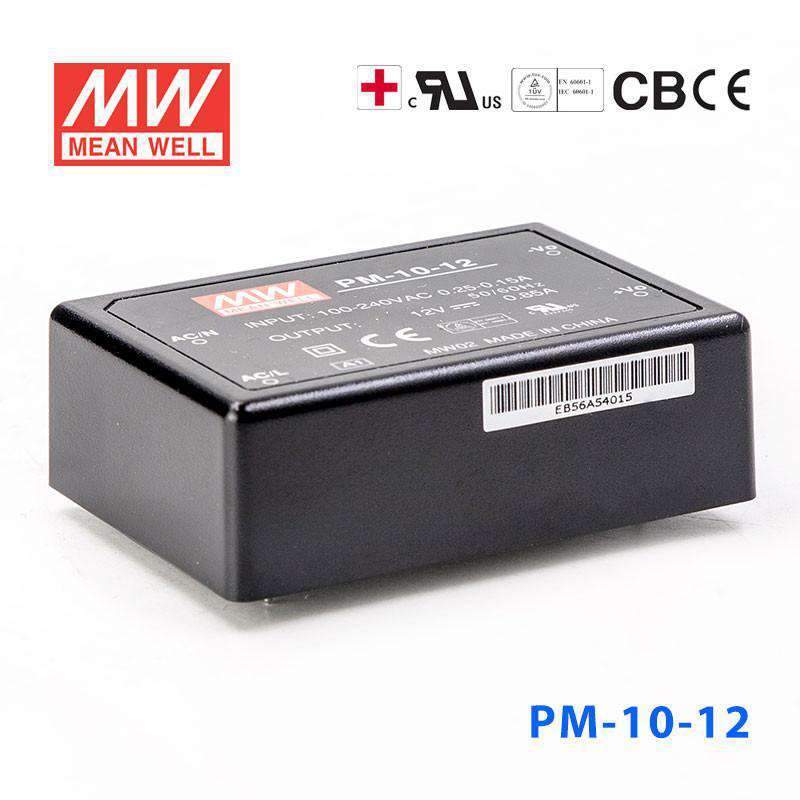

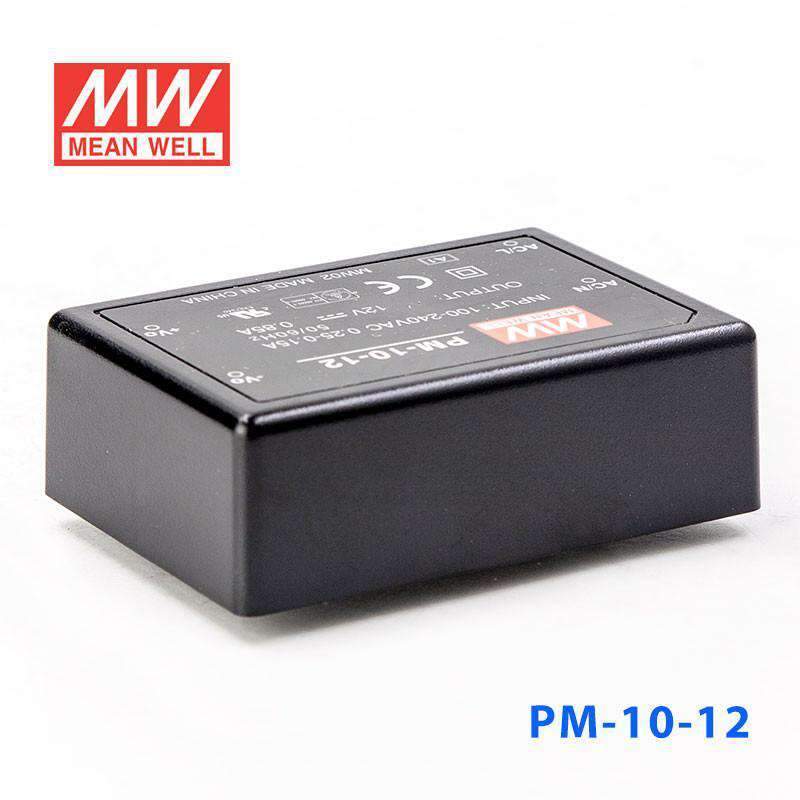

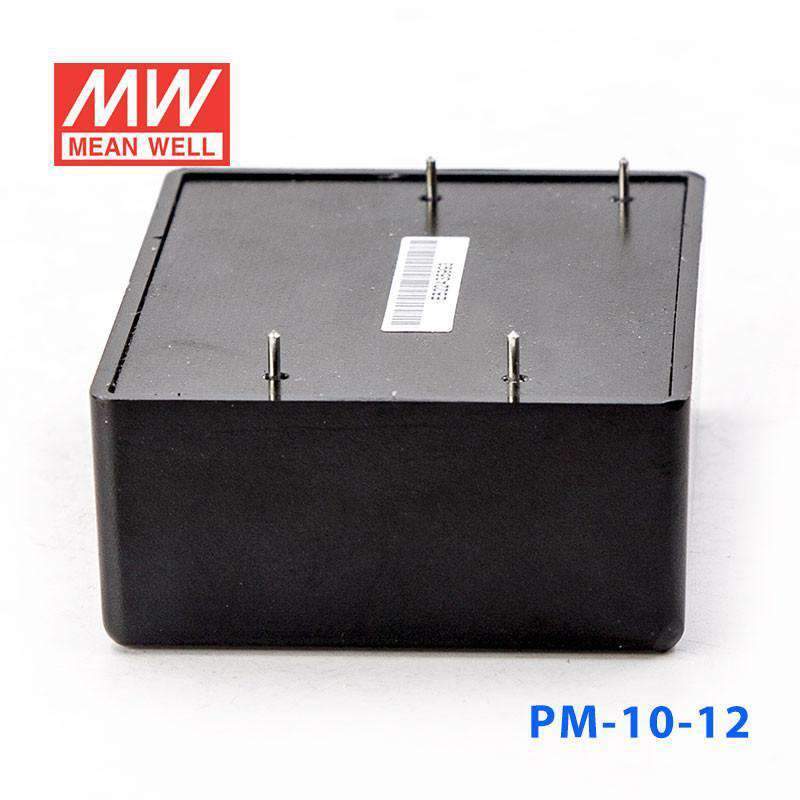

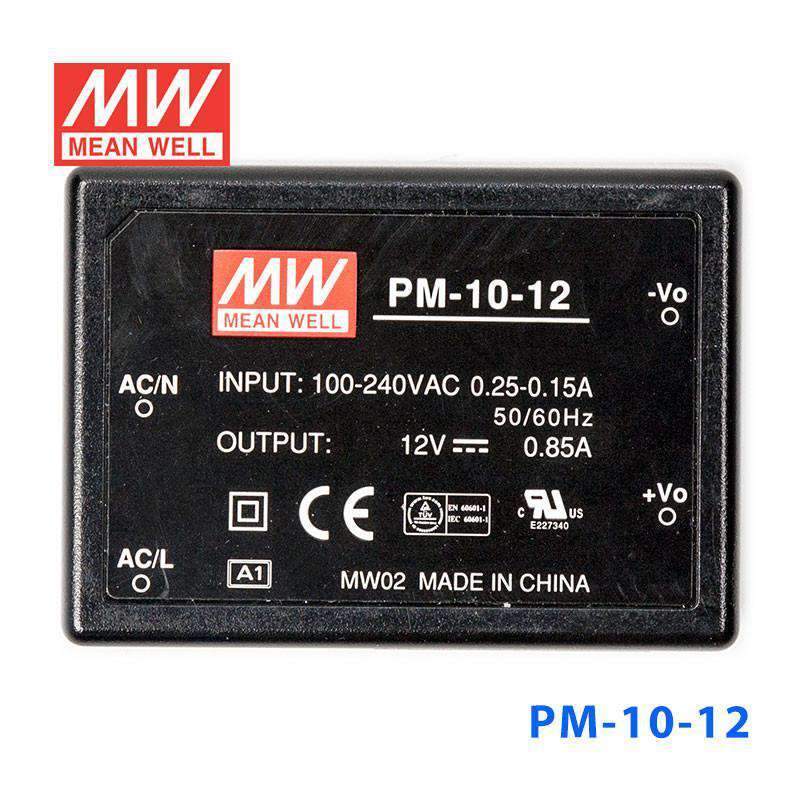

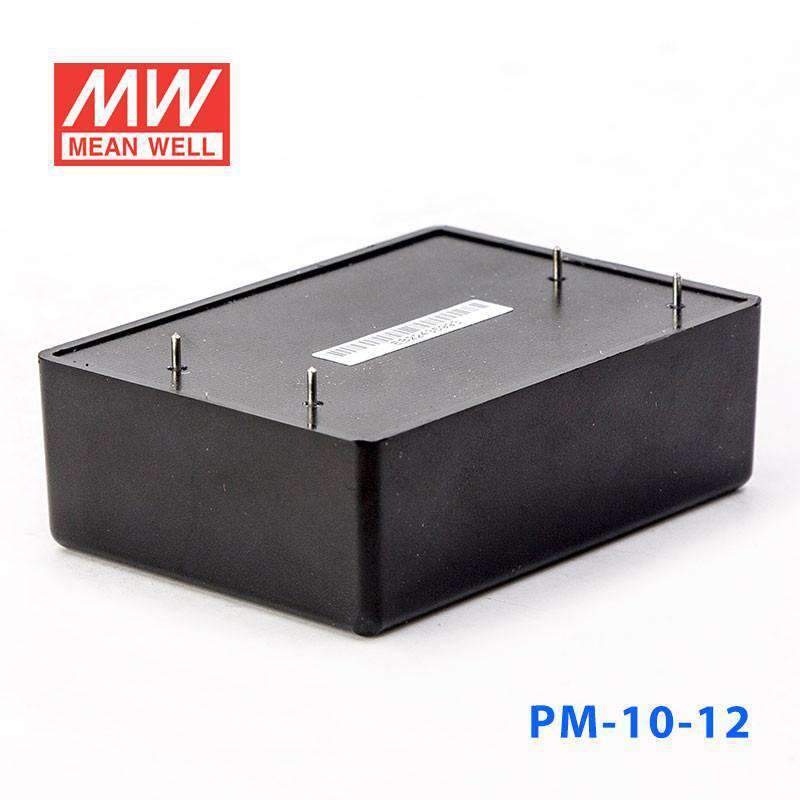

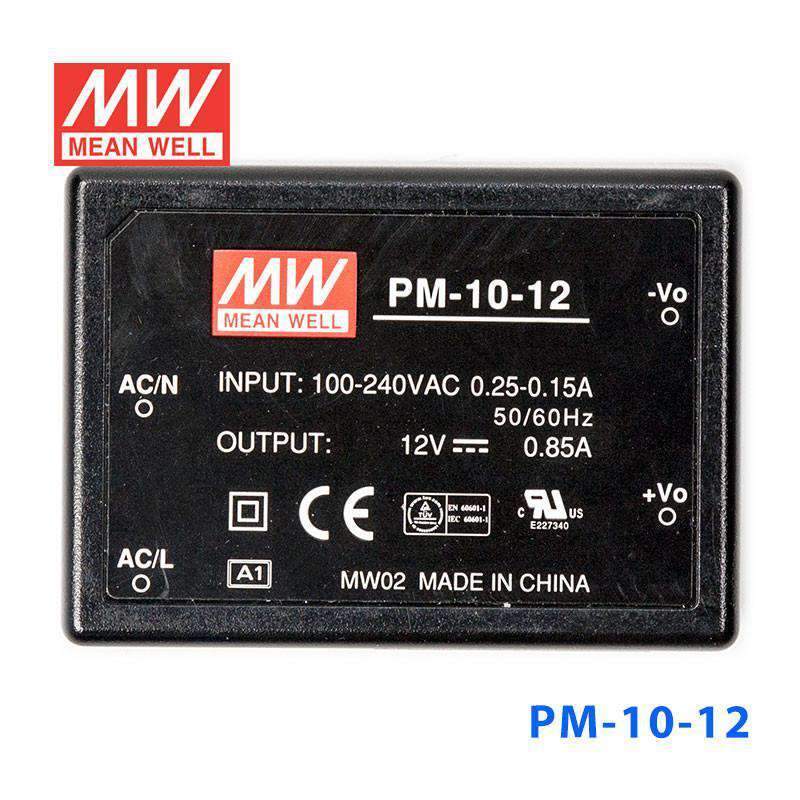

Mean Well PM-10-12 Power Supply 10W 12V
The PM-10 is a 10W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.97 in
-
Height0.89 in
-
Weight0.23 lb
::specification::
Frequently Asked Questions
Can I use the PM-10-12 for a 12V PLC accessory or small automation controller?
Yes, this model is sized for 12V constant-voltage control loads that stay within 0.85A and 10.2W. That makes it more suitable for compact PLC accessories, controllers, and low-power automation electronics than for heavier 12V loads.
Is the PM-10-12 suitable for powering 12V sensors, alarms, or signaling devices?
It can be used for 12V signaling and sensor circuits when the combined load does not exceed 0.85A. With 10.2W available, it offers more headroom than the PM-05-12 while staying in the same 12V output class.
Would this 12V supply work in a compact industrial monitoring or access-control device?
Yes, for devices designed around a fixed 12V DC rail and total consumption at or below 10.2W. The 70.0 × 50.0 × 22.7 mm form factor fits small equipment where a board-mount AC-to-DC supply is needed.
Can the PM-10-12 power a small 12V fan or relay-based control circuit?
It can support small 12V auxiliary loads as long as their combined draw stays within 0.85A and 10.2W. The key selection point is matching the connected load to the supply's constant-voltage 12V output and current limit.
How does the PM-10-12 compare with the other 12V models in the series?
The listed 12V PM models are PM-05-12 at 5.04W and 0.42A, PM-10-12 at 10.2W and 0.85A, PM-15-12 at 15W and 1.25A, and PM-20-12 at 21.6W and 1.8A. All provide 12V constant-voltage output, so the practical difference is available wattage and output current.
Can the PM-10-12 be used in outdoor control boxes or hot equipment compartments?
The operating temperature range is -20°C to +70°C, so it is specified for a broad temperature span. No IP rating is provided, so exposed outdoor service or direct moisture exposure should not be assumed from the available specs.
