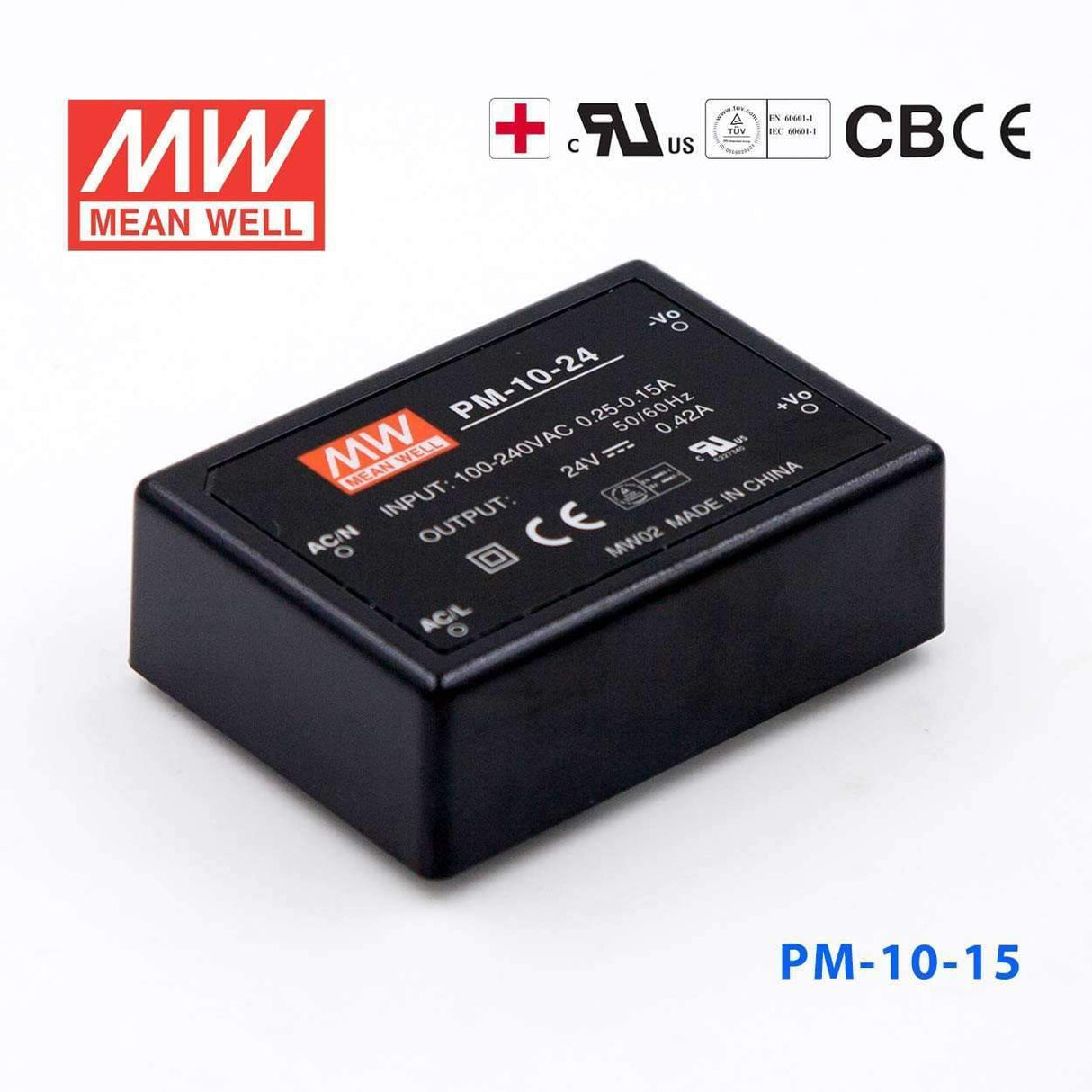

Mean Well PM-10-15 Power Supply 10W 15V
The PM-10 is a 10W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating10.05 Watt
-
Output Voltage15 Volt
-
Rated Current0.67 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.97 in
-
Height0.89 in
-
Weight0.23 lb
::specification::
Frequently Asked Questions
Can I use the PM-10-15 for a 15V instrumentation or analog control circuit?
Yes, if the equipment needs a constant 15V DC supply and the total draw stays within 0.67A and 10.05W. This output range is commonly matched to low-power instrumentation, control, and interface electronics built for 15V input.
Is the PM-10-15 suitable for a small 15V industrial sensor or transmitter assembly?
It can be appropriate for a compact 15V sensor or transmitter assembly when the total load remains under 0.67A. The supply provides a fixed 15V constant-voltage output from an 85-264VAC input range.
Would this 15V power supply work for embedded test equipment or measurement hardware?
Yes, for embedded test or measurement hardware that is designed for 15V DC input and stays within the 10.05W capacity. The 70.0 × 50.0 × 22.7 mm package can also help in space-constrained instrument housings.
Can the PM-10-15 be used for a low-power 15V control subsystem inside a machine?
It is a fit for low-power 15V subsystems where a constant-voltage output is required and the load is no more than 0.67A. It is better suited to electronics and control sections than to larger 15V power loads.
How does the PM-10-15 compare with the other 15V PM power supplies?
The 15V models listed are PM-05-15 at 4.95W and 0.33A, PM-10-15 at 10.05W and 0.67A, PM-15-15 at 15W and 1A, and PM-20-15 at 21W and 1.4A. Each one is a 15V constant-voltage supply, with output current and wattage increasing across the range.
Is the PM-10-15 rated for outdoor use or wide-temperature indoor equipment?
The published temperature range is -20°C to +70°C, which supports use across a wide indoor operating range. No IP rating is shown in the specs, so exposed outdoor or water-prone environments should not be assumed to be supported.
