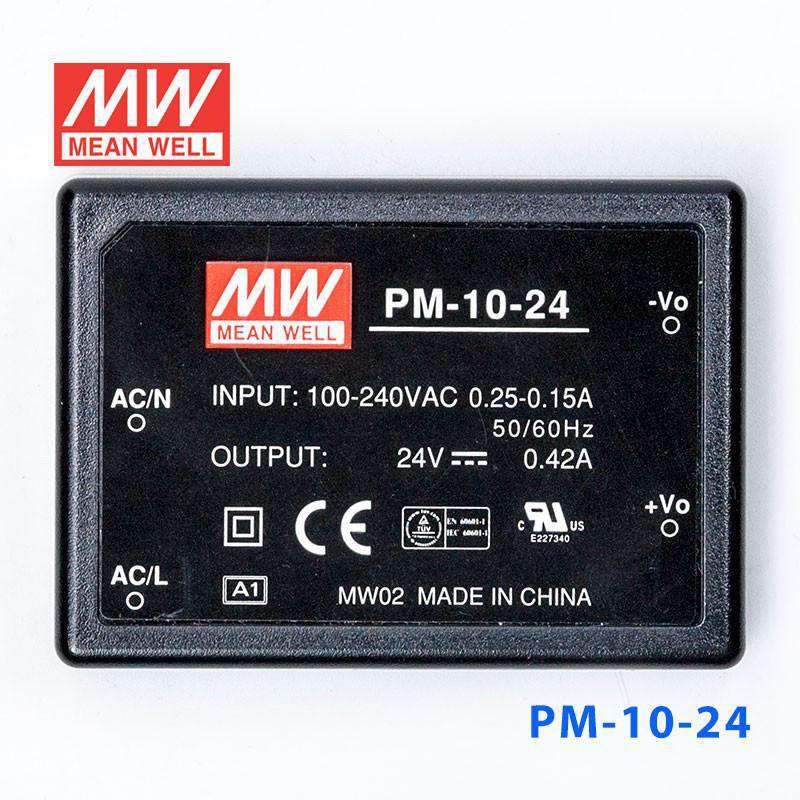

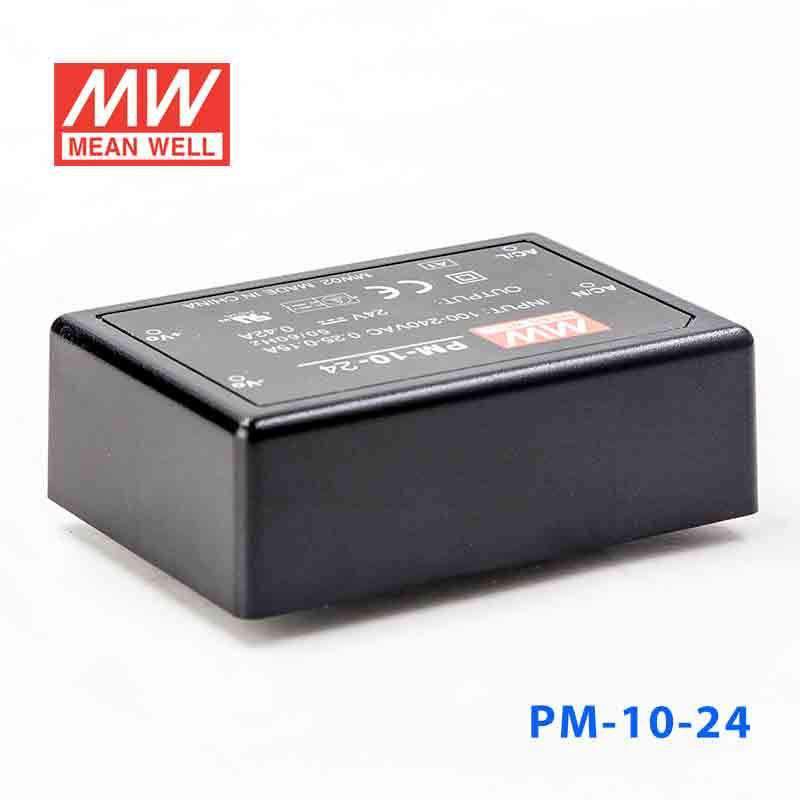

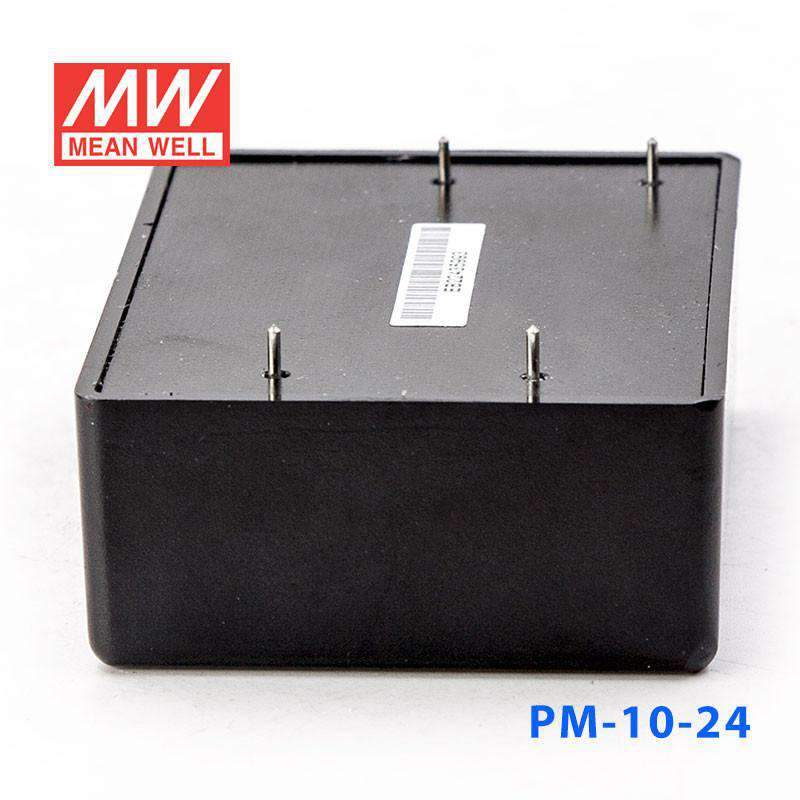

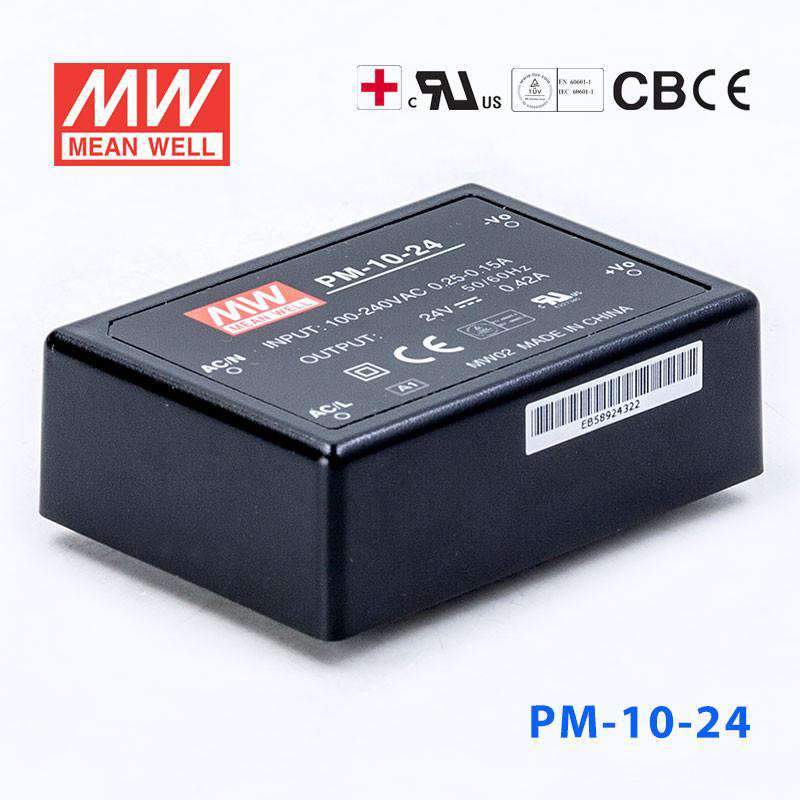

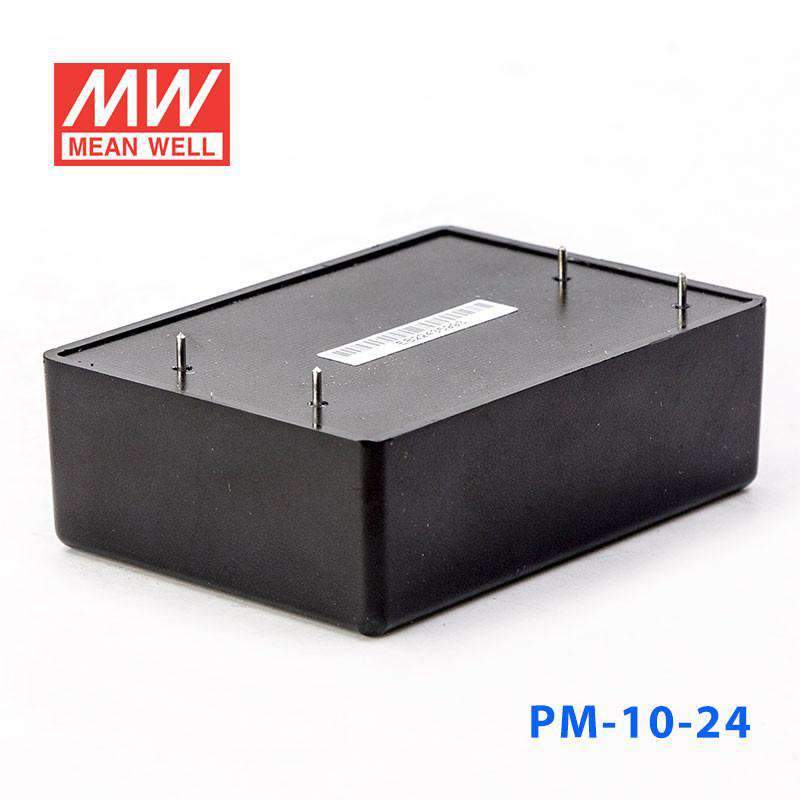

Mean Well PM-10-24 Power Supply 10W 24V
The PM-10 is a 10W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating10.08 Watt
-
Output Voltage24 Volt
-
Rated Current0.42 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.97 in
-
Height0.89 in
-
Weight0.23 lb
::specification::
Frequently Asked Questions
Can I use the PM-10-24 for a small 24V industrial sensor or control circuit?
Yes, this model is a constant-voltage 24V supply for low-power 24V DC loads. It is rated for 10.08W and 0.42A, so it fits small industrial sensors, relays, and control circuits that need 24V and stay within that output limit.
Is the PM-10-24 suitable for embedded 24V electronics inside OEM equipment?
It can be a fit for embedded 24V electronics in compact equipment because it provides constant 24V output in a 70.0 x 50.0 x 22.7 mm package. The 85-264VAC input range also supports use across common AC mains conditions.
Can I use this 24V power supply for light-duty automation interfaces?
Yes, for light-duty automation interfaces that require 24V DC, this unit can work if the total load is no more than 10.08W or 0.42A. It is intended for constant-voltage applications rather than higher-power 24V automation loads.
Is the PM-10-24 meant for outdoor or harsh exposed environments?
The listed operating temperature is -20C to +70C, but no IP rating is provided in the product specs. That makes it better suited to protected indoor equipment or enclosed systems rather than exposed wet or dusty outdoor use.
How does the PM-10-24 compare with the other 24V models in the PM series?
The 24V options in this series are PM-05-24 at 5.52W and 0.23A, PM-10-24 at 10.08W and 0.42A, PM-15-24 at 15.12W and 0.63A, and PM-20-24 at 22.08W and 0.92A. The PM-10-24 sits between the 5W-class and higher-capacity 15W and 20W versions while keeping the same 24V constant-voltage output.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PM-10 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PM-10-5 Power Supply 10W 5V | 10W | 5V | 2A | Indoor | $21.61 | View |
| Mean Well PM-10-3.3 Power Supply 10W 3.3V | 8.25W | 3.3V | 2.5A | Indoor | $20.75 | View |
| Mean Well PM-10-15 Power Supply 10W 15V | 10.05W | 15V | 0.67A | Indoor | $21.61 | View |
| Mean Well PM-10-12 Power Supply 10W 12V | 10.2W | 12V | 0.85A | Indoor | $21.61 | View |
