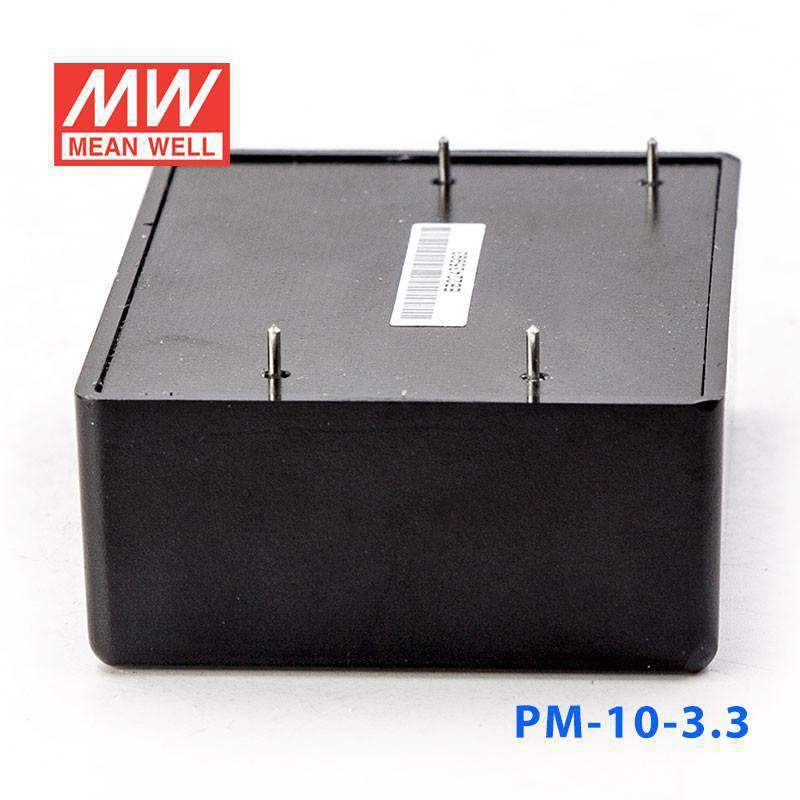

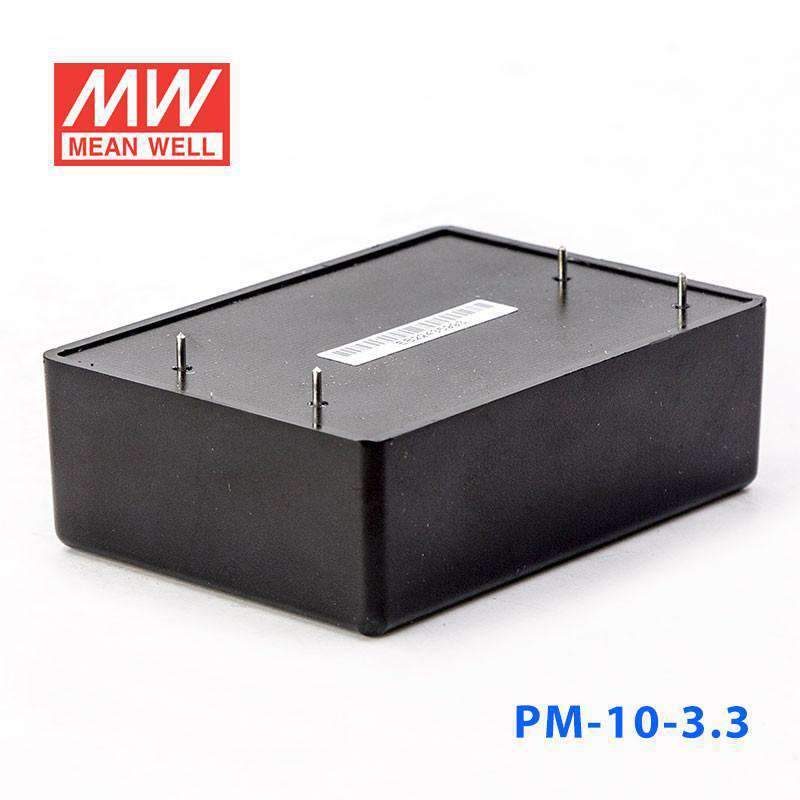

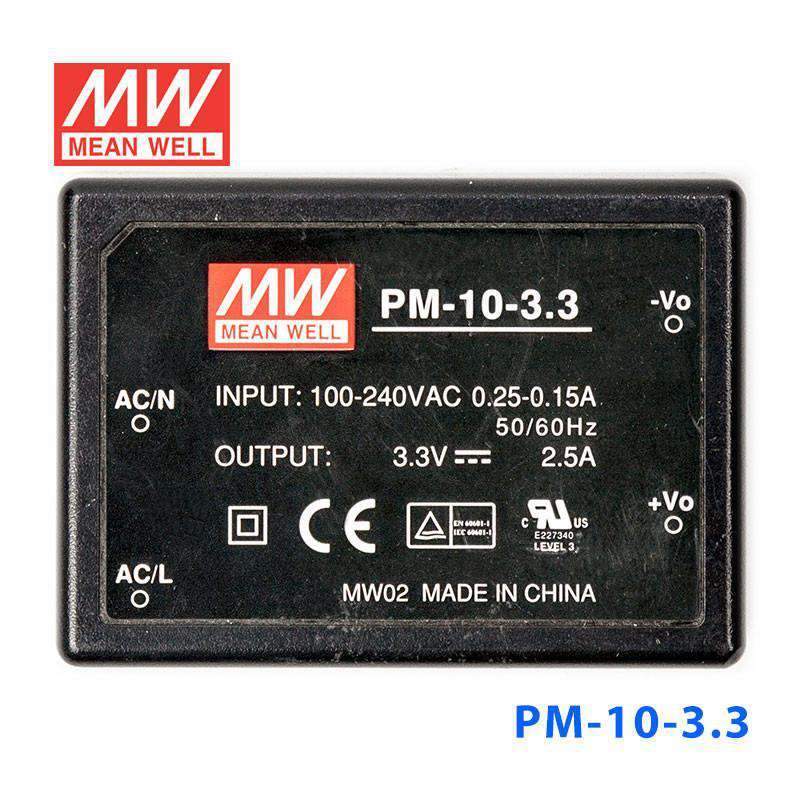

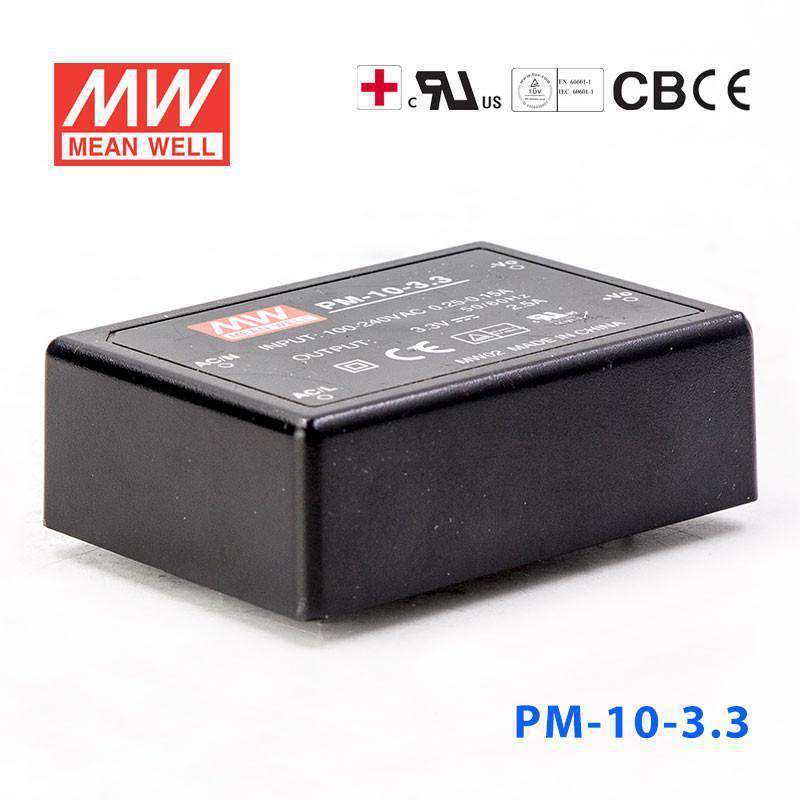

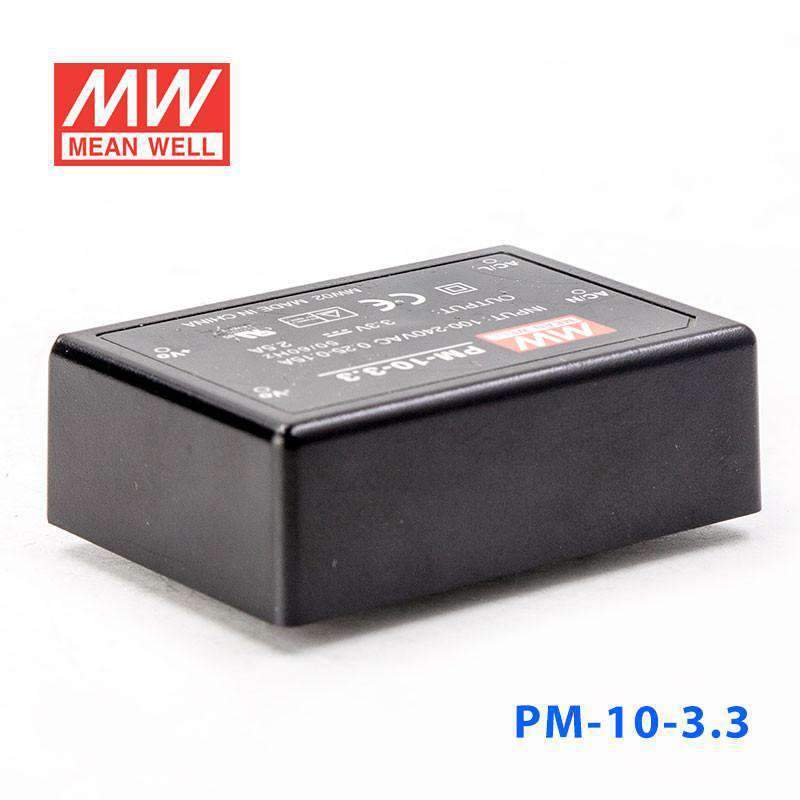

Mean Well PM-10-3.3 Power Supply 10W 3.3V
The PM-10 is a 10W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating8.25 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.97 in
-
Height0.89 in
-
Weight0.23 lb
::specification::
Frequently Asked Questions
Can I use the PM-10-3.3 for 3.3V embedded controllers or logic boards?
Yes, this model is built for constant 3.3V DC output and can support embedded logic boards, controllers, and similar electronics that require 3.3V. Its output is rated at 8.25W and 2.5A, so the connected load needs to stay within those limits.
Is the PM-10-3.3 suitable for industrial 3.3V communication or interface electronics?
It can be used for low-power industrial communication or interface electronics that run on 3.3V DC. The unit supplies up to 2.5A at 3.3V with a wide 85-264VAC input range, which suits internally powered equipment using standard AC input.
Can this power supply run a 3.3V microprocessor or embedded I/O module?
It is appropriate for 3.3V microprocessor and embedded I/O applications when the total demand stays at or below 8.25W and 2.5A. Because it is a constant-voltage design, it is intended for electronics that specifically require a regulated 3.3V supply.
Is the PM-10-3.3 intended for outdoor use?
The operating temperature range is -20C to +70C, but the specs do not list an IP rating. That usually makes it a better choice for indoor equipment, control cabinets, or other protected enclosures rather than exposed outdoor locations.
How does the PM-10-3.3 compare with the other 3.3V PM series models?
The 3.3V models in the series are PM-05-3.3 at 4.125W and 1.25A, PM-10-3.3 at 8.25W and 2.5A, PM-15-3.3 at 11.5W and 3.5A, and PM-20-3.3 at 14.85W and 4.5A. The PM-10-3.3 is the second step in output capacity while keeping the same 3.3V constant-voltage format.
