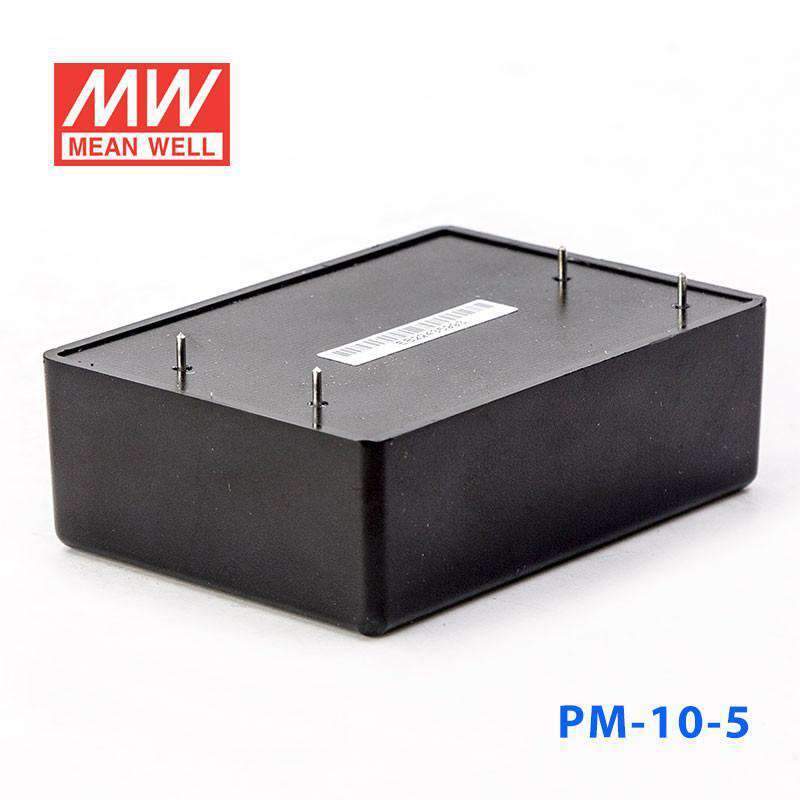

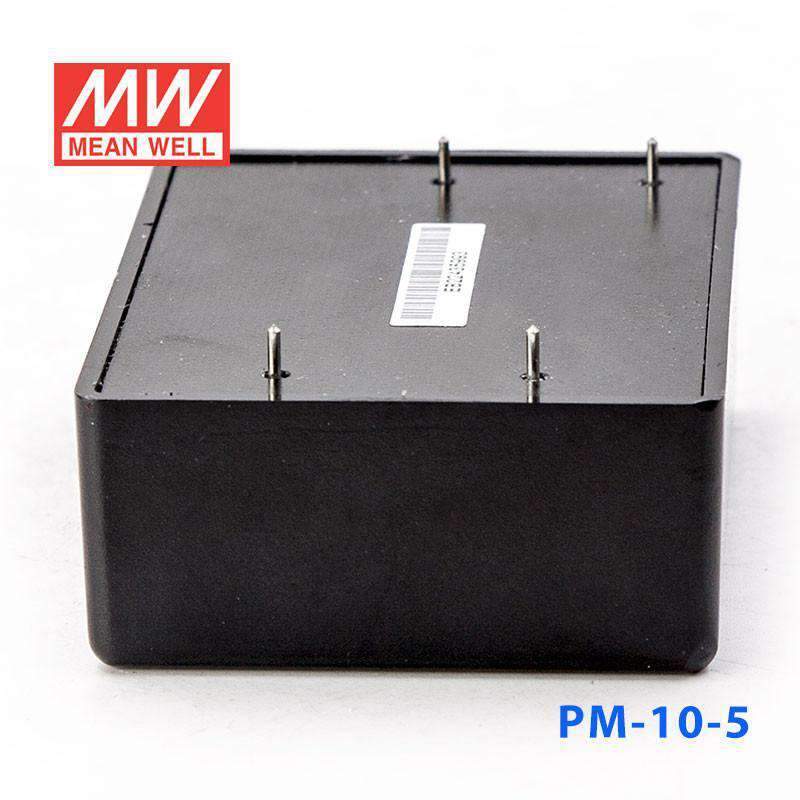

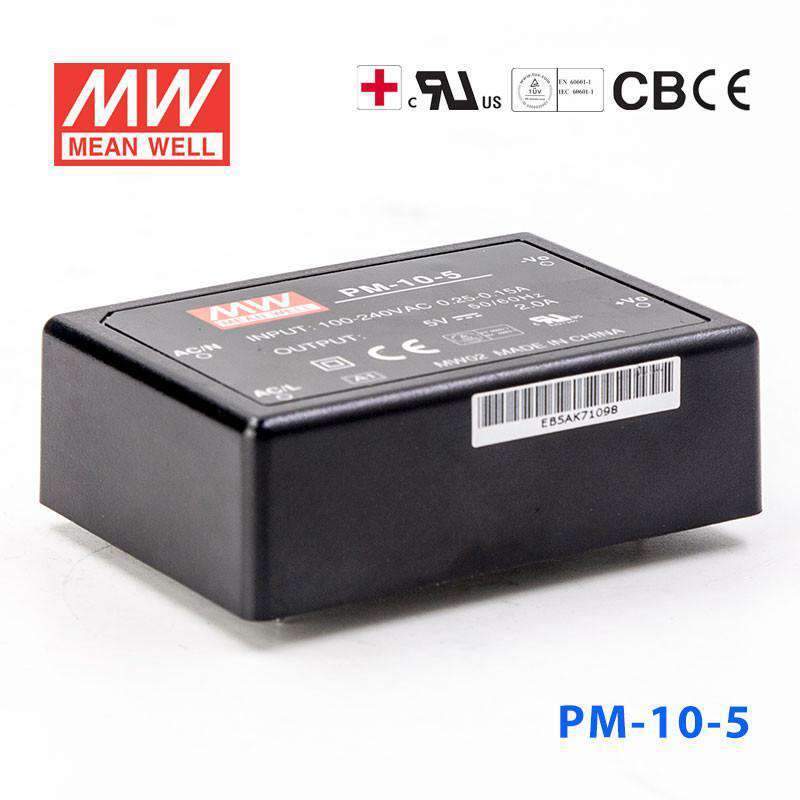

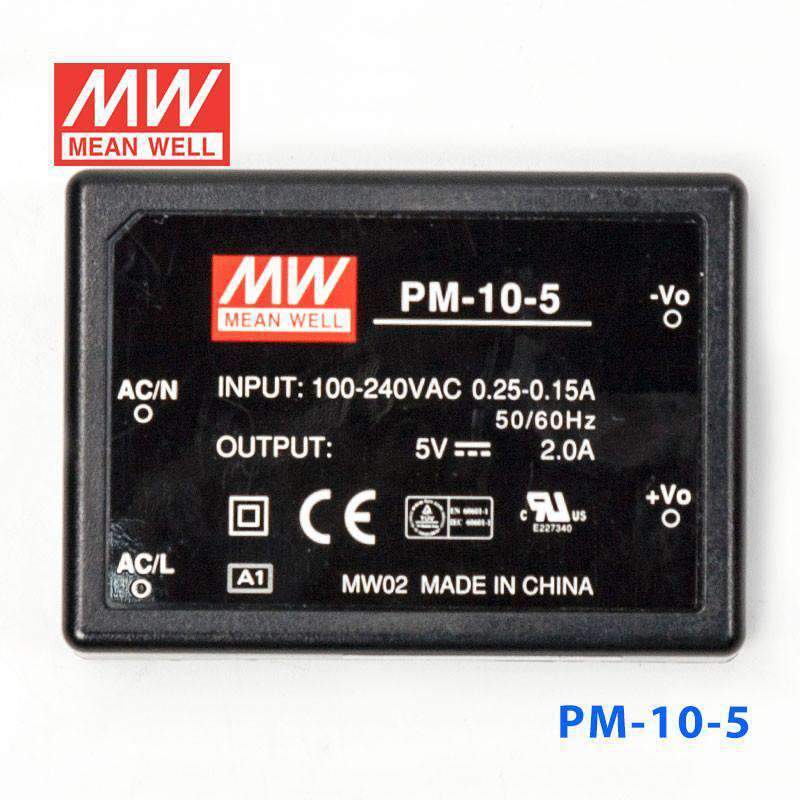

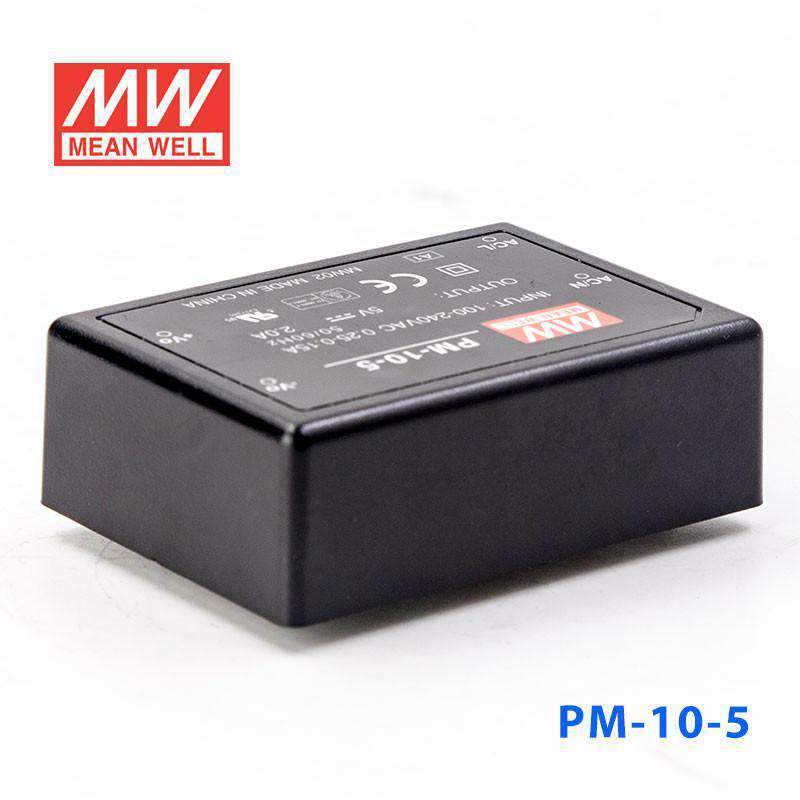

Mean Well PM-10-5 Power Supply 10W 5V
The PM-10 is a 10W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.97 in
-
Height0.89 in
-
Weight0.23 lb
::specification::
Frequently Asked Questions
Can I use the PM-10-5 for a 5V single-board computer or embedded controller?
Yes, if the device requires 5V DC and the total load does not exceed 10W or 2A. This model provides constant 5V output, which fits many embedded controllers, SBCs, and low-power digital systems.
Is the PM-10-5 suitable for USB-powered style electronics inside industrial equipment?
It can be used for 5V electronics inside industrial or OEM equipment when those devices need a regulated 5V supply from an 85-264VAC input source. The output limit is 2A, so it is best for lower-power 5V electronics rather than heavier 5V loads.
Can this 5V power supply support compact HMI, control, or communications accessories?
Yes, it can fit compact 5V accessories used in control or communications equipment if their combined demand stays within 10W and 2A. Its constant-voltage operation is intended for electronics that require a stable 5V DC rail.
How do I know if 10W is enough for my 5V load?
Match both the required voltage and the total load. This supply outputs 5V DC with a maximum of 2A and 10W, so the connected 5V equipment must stay within those ratings.
Is the PM-10-5 suitable for indoor-only applications or exposed environments?
The product is rated for -20C to +70C operation, but no IP rating is shown in the specs. That points to indoor or protected enclosure use rather than direct exposure to rain, washdown, or dust-heavy outdoor conditions.
