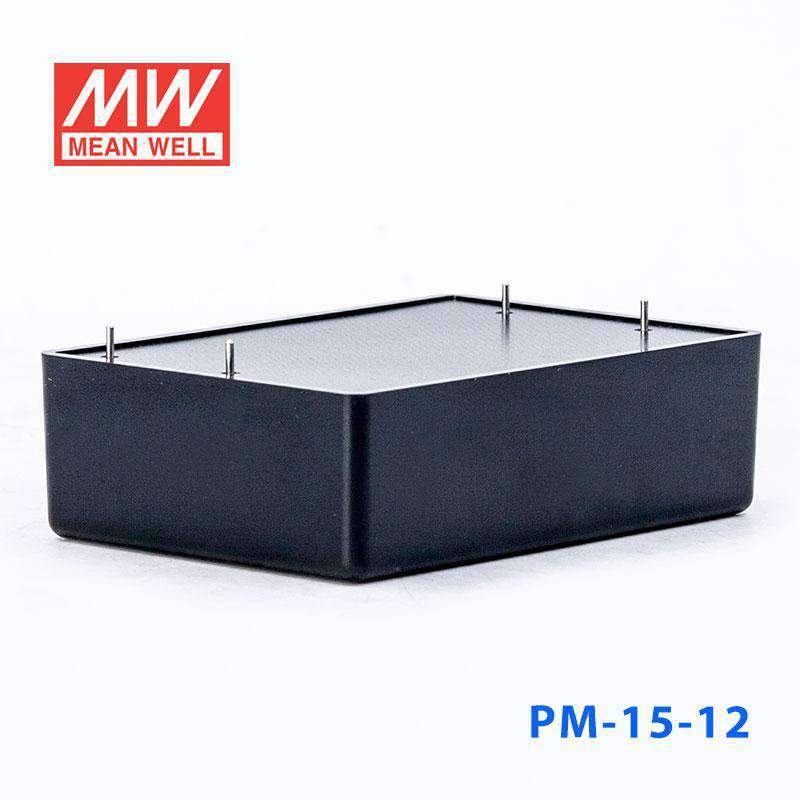

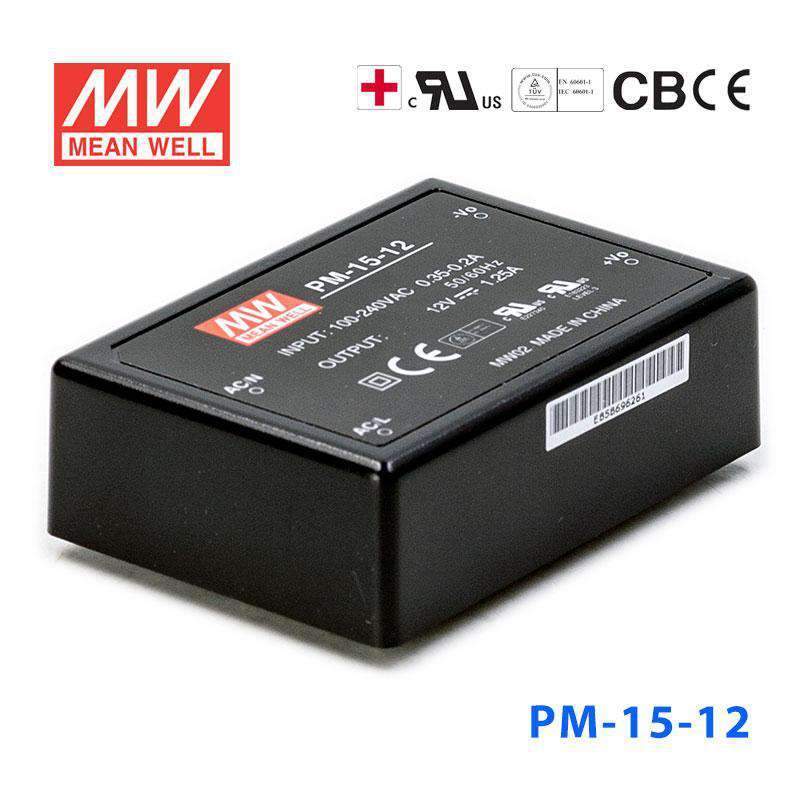

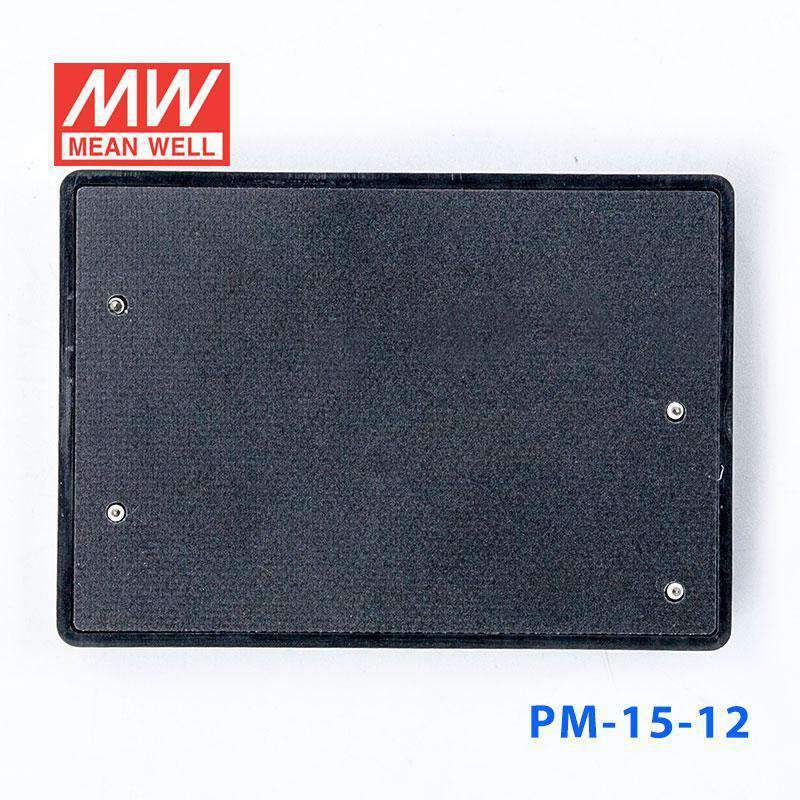

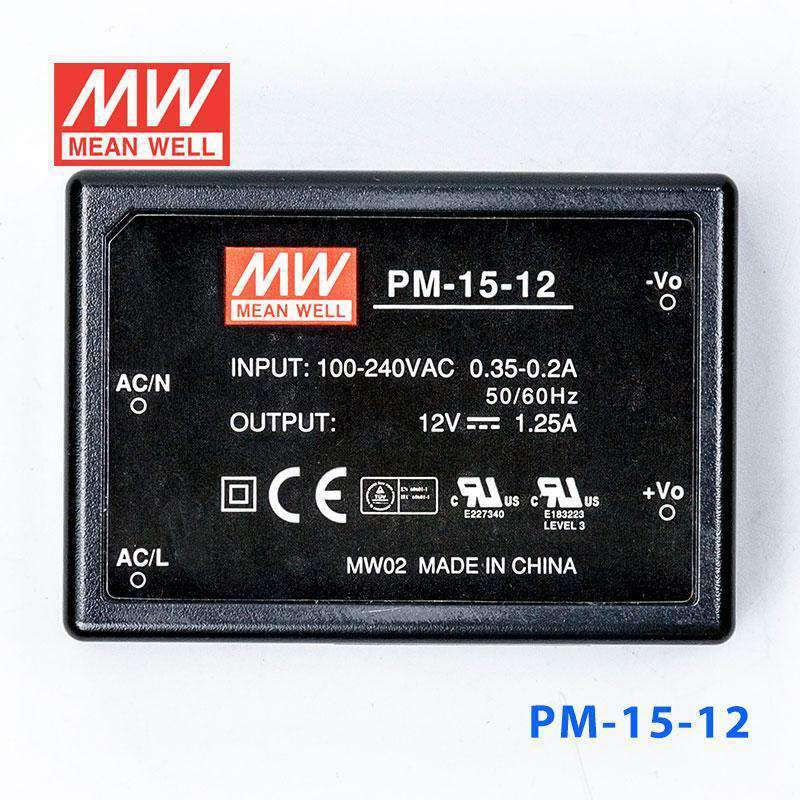

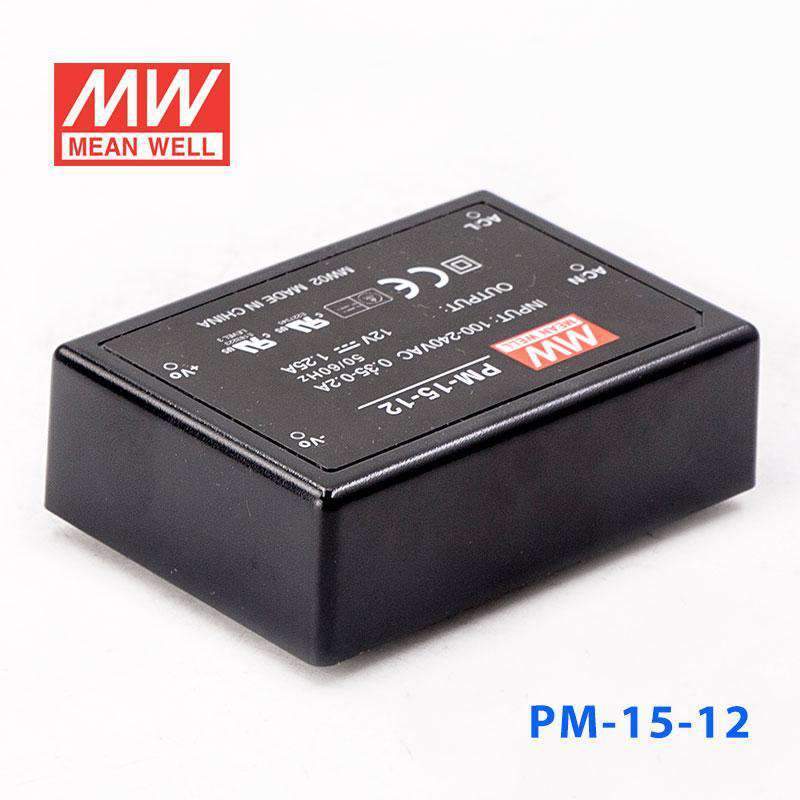

Mean Well PM-15-12 Power Supply 15W 12V
The PM-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.95 in
-
Width2.09 in
-
Height0.89 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
Can I use the PM-15-12 for a 12V industrial control device or panel accessory?
Yes, this model can power low-power 12V industrial control devices and panel accessories that require constant 12V DC. Its output is rated at 15W and 1.25A, so the total connected load needs to remain within those limits.
Is the PM-15-12 suitable for 12V embedded systems inside OEM machinery?
It can be a fit for embedded 12V systems in OEM equipment because it provides constant 12V output from an 85-264VAC input range. The compact housing measures 75.0 x 53.0 x 22.7 mm, which can help in space-limited assemblies.
Can this unit power a small 12V automation interface or alarm module?
Yes, for small 12V automation interfaces or alarm modules, this supply can work when the total requirement stays at or below 15W and 1.25A. It is intended for low-power constant-voltage 12V applications rather than larger 12V loads.
Is the PM-15-12 rated for outdoor use?
The specs list an operating temperature range of -20C to +70C, but there is no IP rating stated. That means it is better matched to indoor equipment or protected housings instead of exposed outdoor environments.
How does the PM-15-12 compare with other 12V models in the PM series?
The 12V models in this series are PM-05-12 at 5.04W and 0.42A, PM-10-12 at 10.2W and 0.85A, PM-15-12 at 15W and 1.25A, and PM-20-12 at 21.6W and 1.8A. The PM-15-12 sits above the 5W and 10W versions and below the 20W model while keeping the same 12V constant-voltage output.
