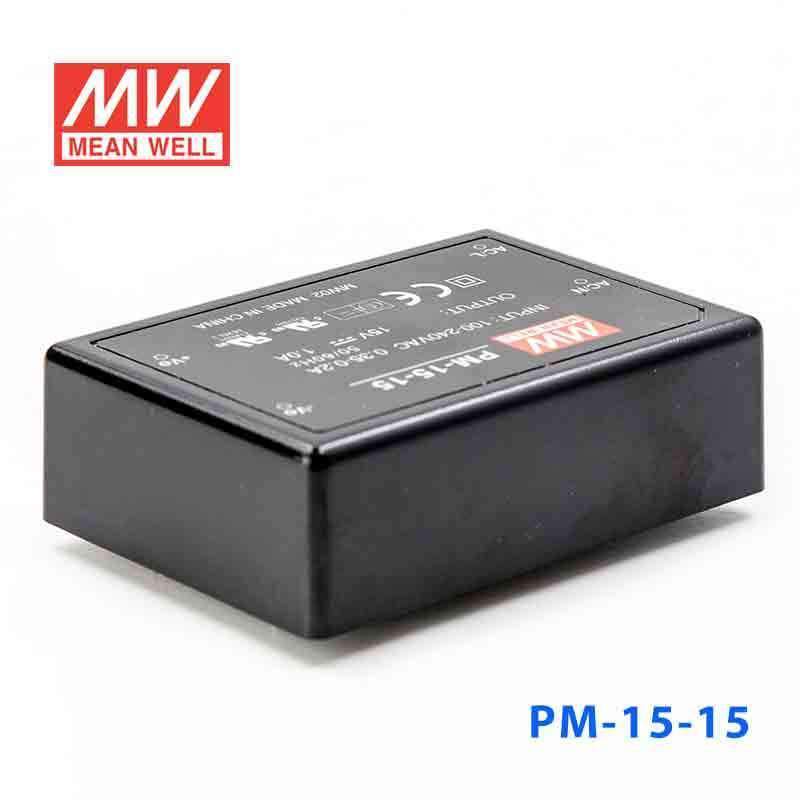

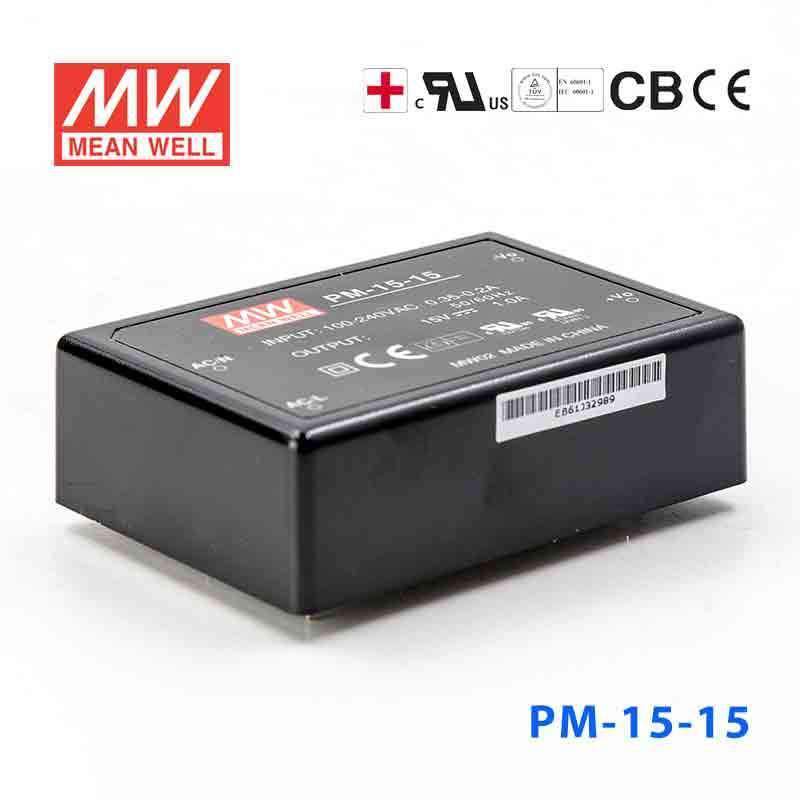

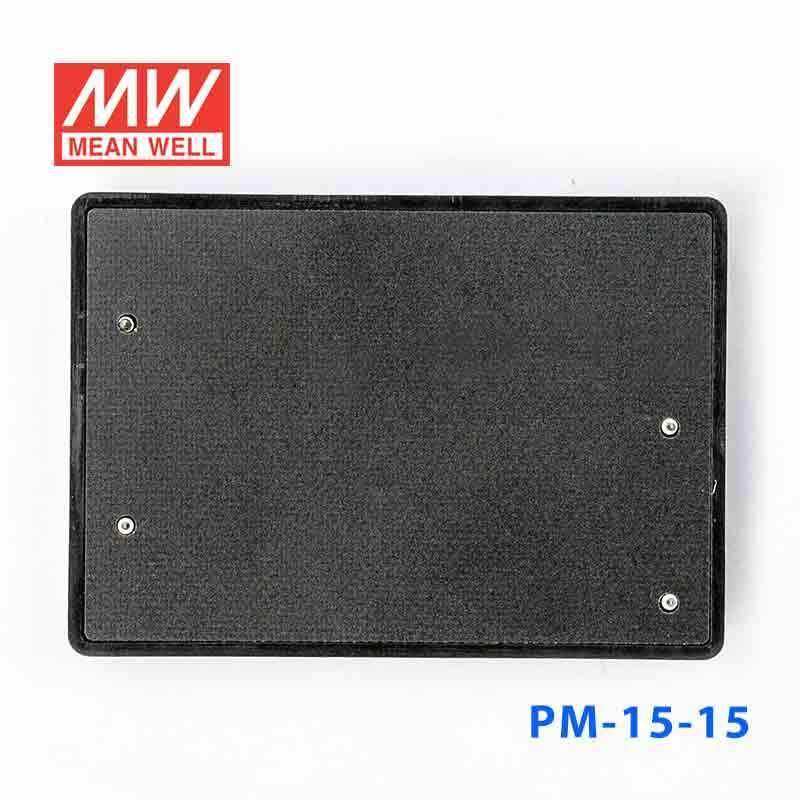

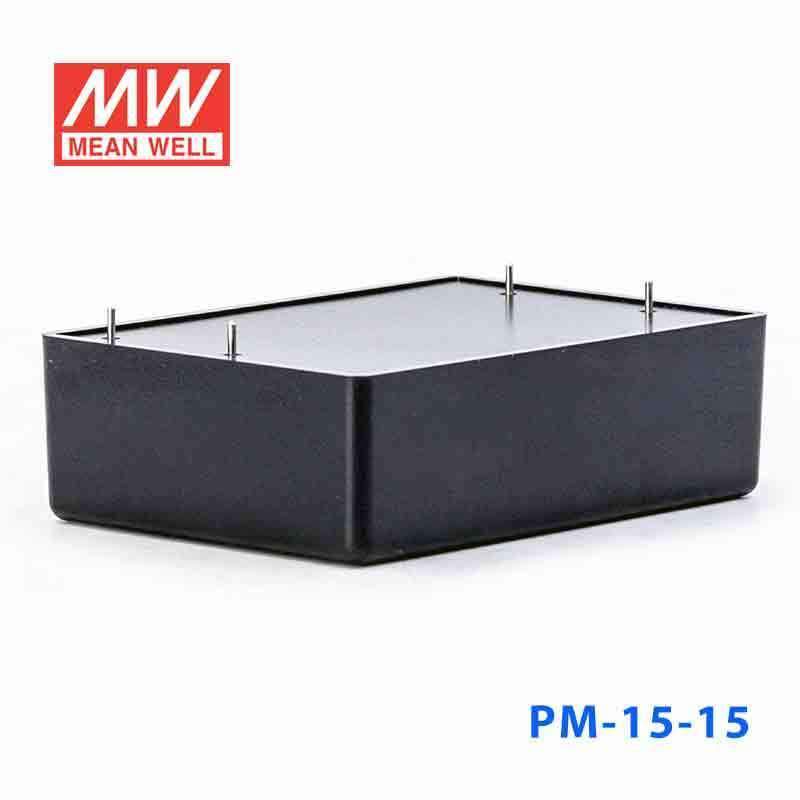

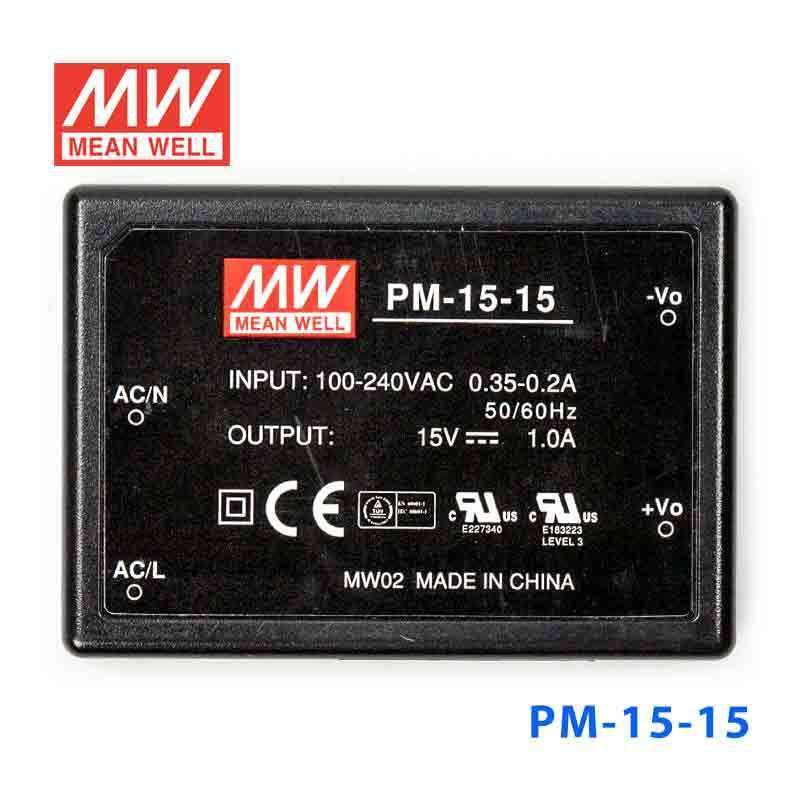

Mean Well PM-15-15 Power Supply 15W 15V
The PM-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.95 in
-
Width2.09 in
-
Height0.89 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
Can I use the PM-15-15 for a 15V industrial sensor, interface, or control board?
Yes, it is suitable for low-power 15V DC electronics such as sensors, interface boards, and control circuits that require constant voltage. The output is rated at 15W and 1A, so the load must stay within those limits.
Is the PM-15-15 a good fit for embedded 15V electronics in OEM equipment?
It can be used in embedded OEM equipment that needs a regulated 15V DC rail from an 85-264VAC input source. Its body size is 75.0 x 53.0 x 22.7 mm, which supports use in compact internal assemblies.
Can this power supply support a small 15V automation or instrumentation load?
Yes, for small automation or instrumentation loads that specifically require 15V DC, this unit can work if the total demand is no more than 15W and 1A. It is a constant-voltage supply, so it is intended for equipment designed around a fixed 15V input.
Is the PM-15-15 better for protected indoor use or exposed outdoor use?
The operating temperature range is -20C to +70C, but the product specs do not include an IP rating. That makes it a safer fit for protected indoor systems or enclosed equipment rather than direct outdoor exposure.
How does the PM-15-15 compare with the other 15V PM series models?
The 15V options in the series are PM-05-15 at 4.95W and 0.33A, PM-10-15 at 10.05W and 0.67A, PM-15-15 at 15W and 1A, and PM-20-15 at 21W and 1.4A. The PM-15-15 is the third step in output capacity while keeping the same 15V constant-voltage format.
