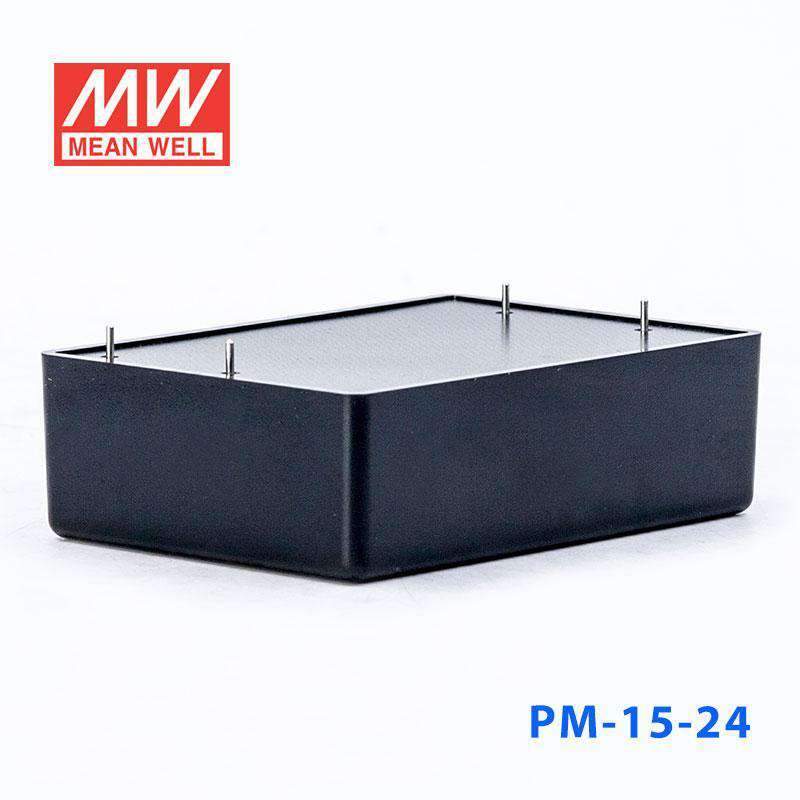

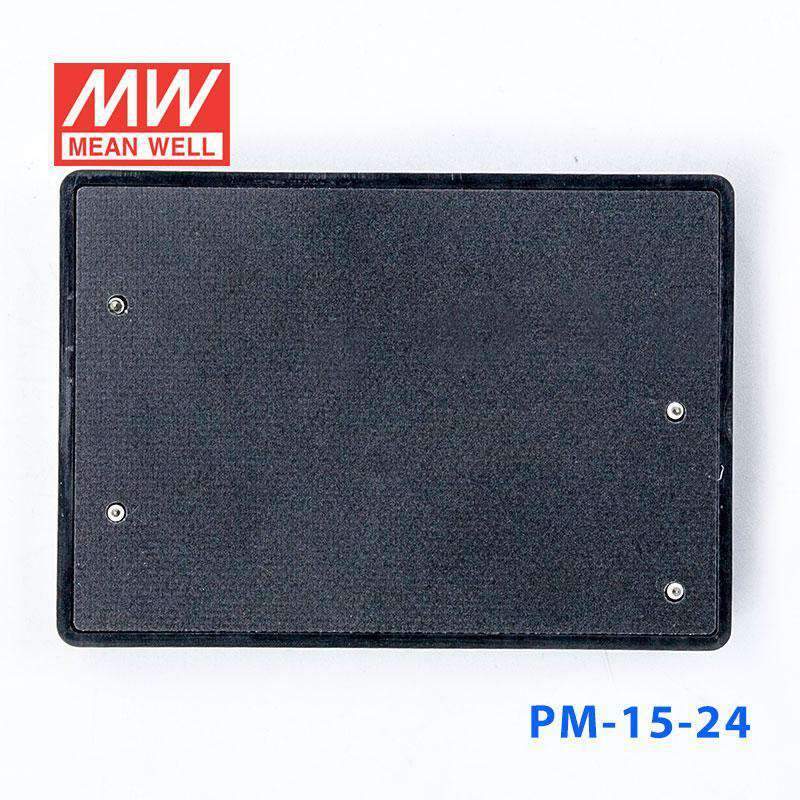

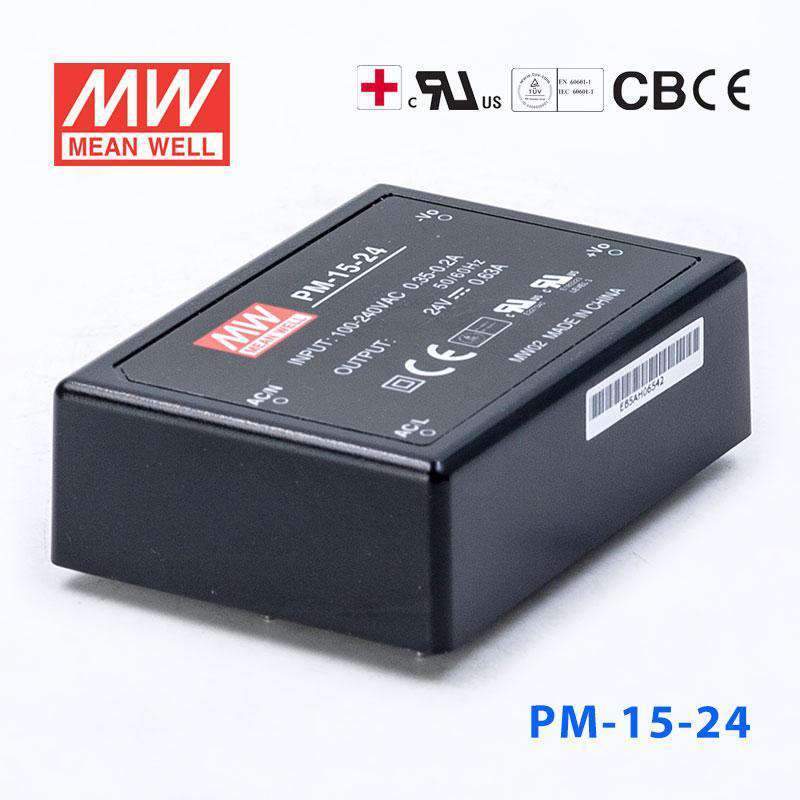

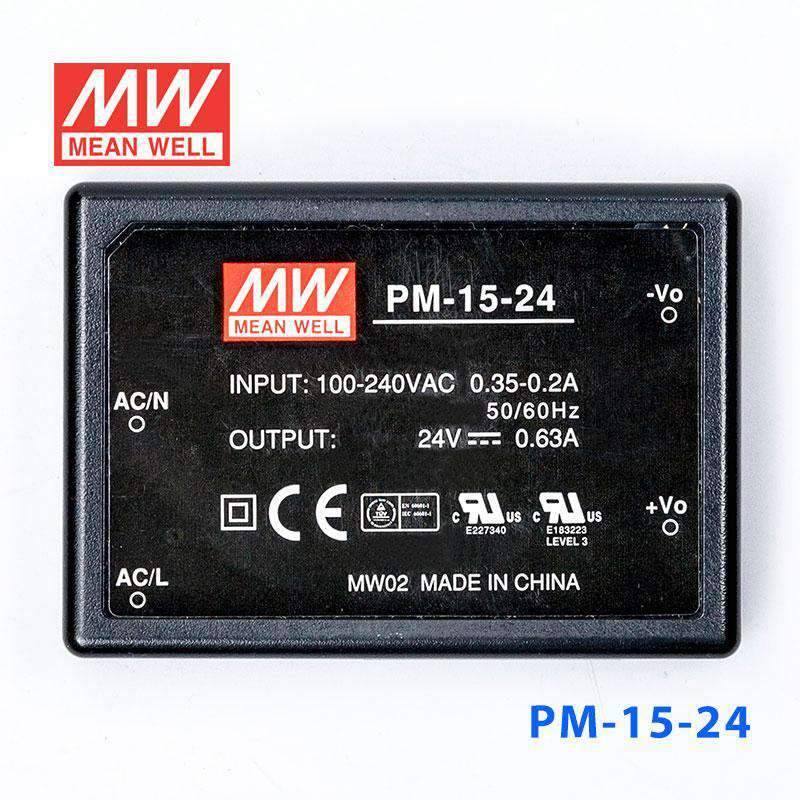

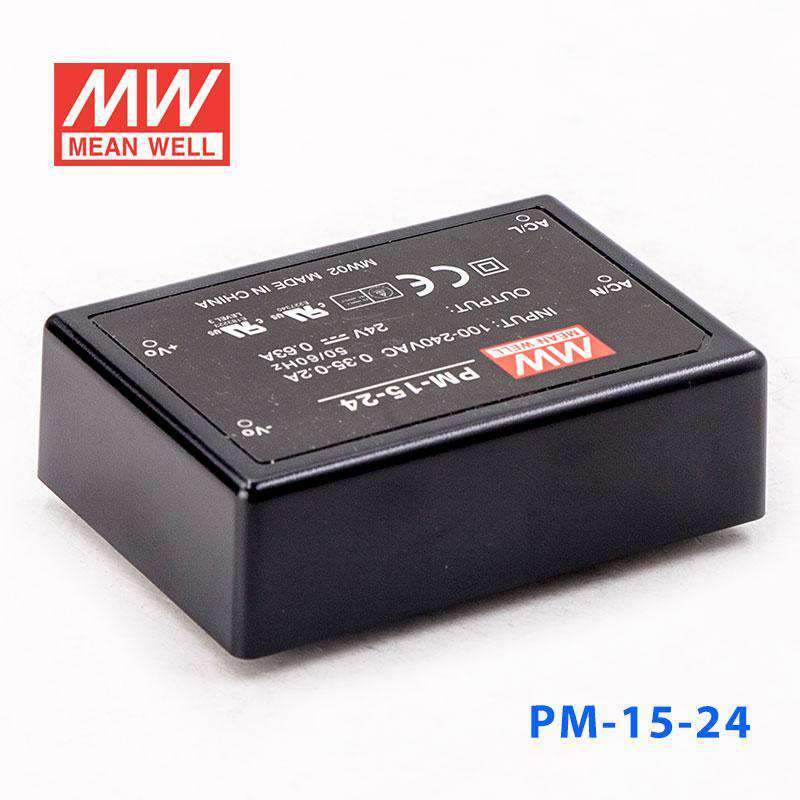

Mean Well PM-15-24 Power Supply 15W 24V
The PM-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating15.12 Watt
-
Output Voltage24 Volt
-
Rated Current0.63 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.95 in
-
Width2.09 in
-
Height0.89 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
Can I use the PM-15-24 for a small 24V industrial control circuit?
Yes, it is a constant-voltage 24V supply rated for 0.63A and 15.12W. That makes it a fit for small 24V control loads in industrial or automation equipment as long as the total demand stays within 0.63A and 15.12W.
Is the PM-15-24 suitable for powering 24V sensors and relays in an automation panel?
It can be used for 24V sensors, relays, and similar low-power panel devices that need regulated 24V DC. The key limit is the available 0.63A output current and 15.12W total output power.
Can this 24V power supply run embedded or HMI-related electronics that use 24V input?
It is intended for constant-voltage 24V applications, so it can support embedded or interface hardware designed for a 24V DC input. You need to keep the connected load at or below 15.12W and 0.63A.
Is the PM-15-24 meant for indoor or outdoor environments?
The listed operating temperature range is -20°C to +70°C, but no IP rating is provided in the product specs. Based on the available data, the product information supports temperature suitability only and does not indicate sealed outdoor or wet-location protection.
How does the PM-15-24 compare with the other 24V models in the PM series?
Within the PM series, the 24V options are PM-05-24 at 5.52W and 0.23A, PM-10-24 at 10.08W and 0.42A, PM-15-24 at 15.12W and 0.63A, and PM-20-24 at 22.08W and 0.92A. The main differences are output power and output current while staying in the same 24V constant-voltage family.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PM-15 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PM-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $23.93 | View |
| Mean Well PM-15-3.3 Power Supply 15W 3.3V | 11.5W | 3.3V | 3.5A | Indoor | $23.93 | View |
| Mean Well PM-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $23.93 | View |
| Mean Well PM-15-12 Power Supply 15W 12V | 15W | 12V | 1.25A | Indoor | $23.93 | View |
