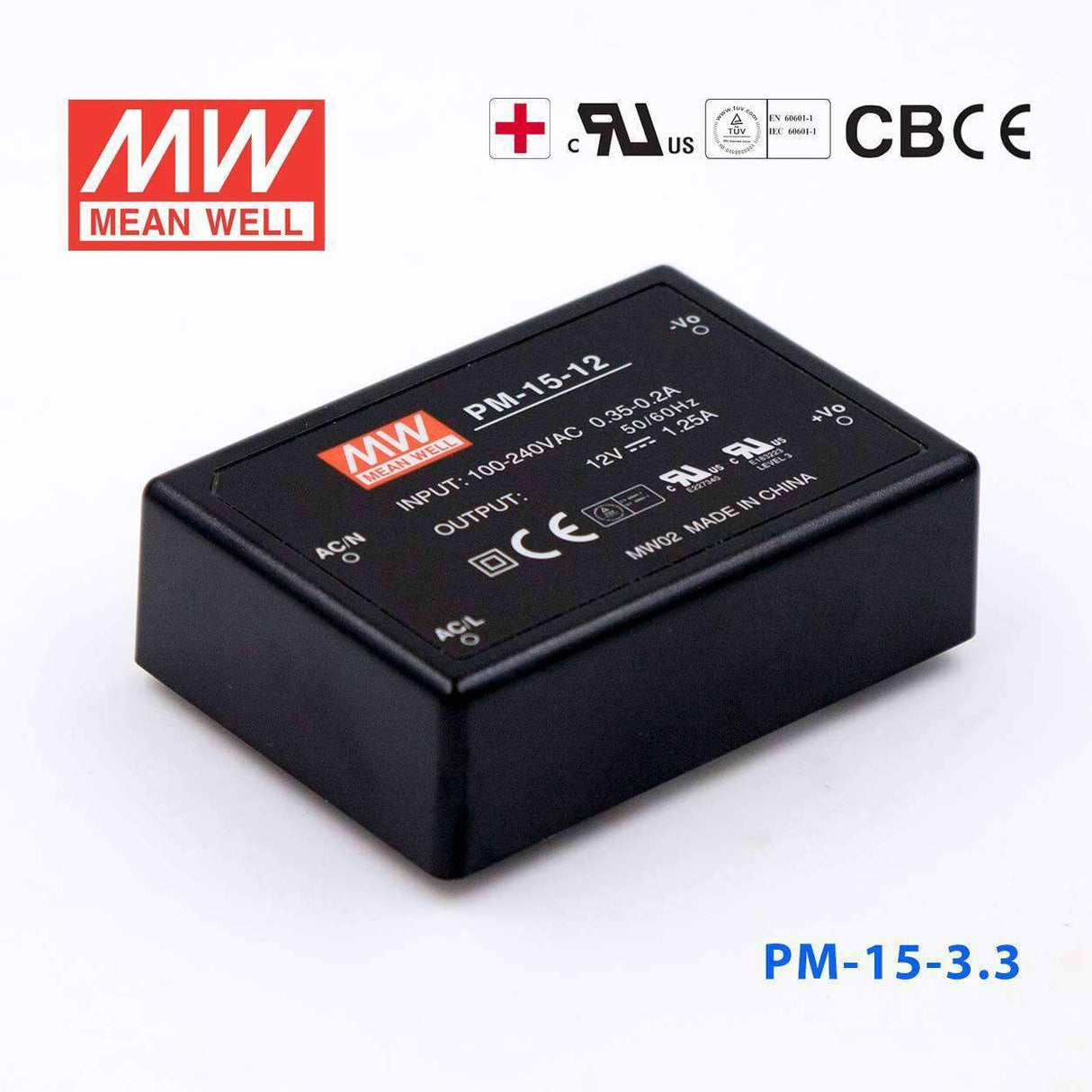

Mean Well PM-15-3.3 Power Supply 15W 3.3V
The PM-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating11.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current3.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.95 in
-
Width2.09 in
-
Height0.89 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
Can I use the PM-15-3.3 for 3.3V embedded electronics or controller boards?
Yes, it is a constant-voltage 3.3V supply with up to 3.5A output current. It is suited to embedded or control electronics that require a regulated 3.3V rail and stay within 11.5W total output.
Is the PM-15-3.3 appropriate for low-voltage logic loads in industrial equipment?
It can be a match for 3.3V logic-level loads used inside industrial or automation assemblies. The available capacity is 3.5A at 3.3V, with 11.5W maximum output power.
Can this model support a 3.3V communication or processing module in an embedded system?
It is designed for constant 3.3V output, so it can support embedded processing or communication hardware that is specified for 3.3V DC input. Load sizing still needs to remain within 3.5A and 11.5W.
Is the PM-15-3.3 suitable for outdoor or harsh exposed locations?
The operating temperature range is -20°C to +70°C, which covers a broad temperature window. However, no IP rating is listed, so the specs do not identify this unit as protected for outdoor exposure, dust ingress, or water ingress.
What are the 3.3V options in the PM series and where does the PM-15-3.3 fit?
The PM series 3.3V models are PM-05-3.3 at 4.125W and 1.25A, PM-10-3.3 at 8.25W and 2.5A, PM-15-3.3 at 11.5W and 3.5A, and PM-20-3.3 at 14.85W and 4.5A. PM-15-3.3 sits above the 5W and 10W versions and below the 20W version in current and power capacity.
