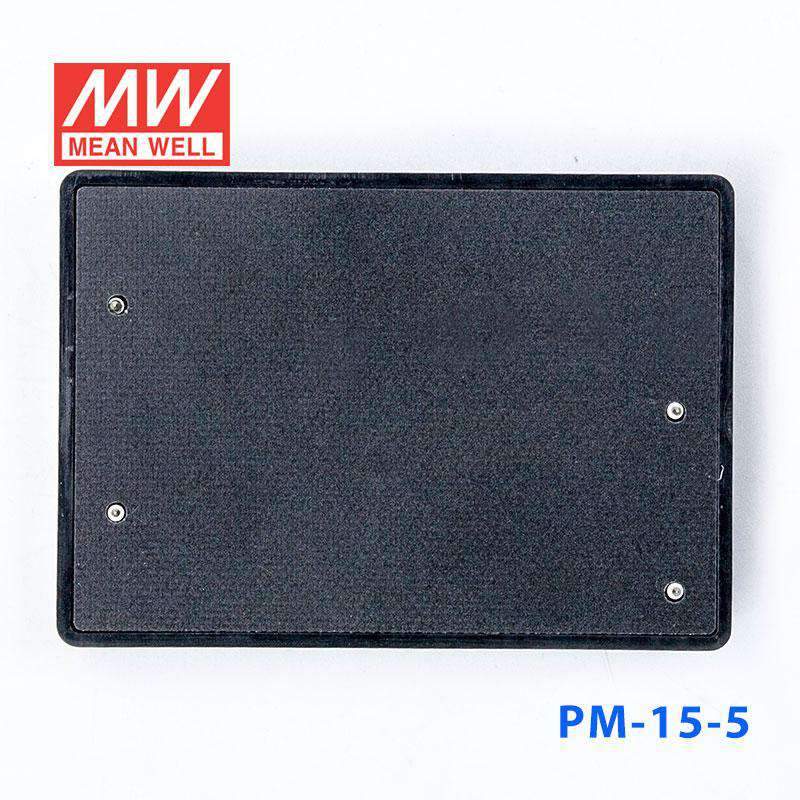

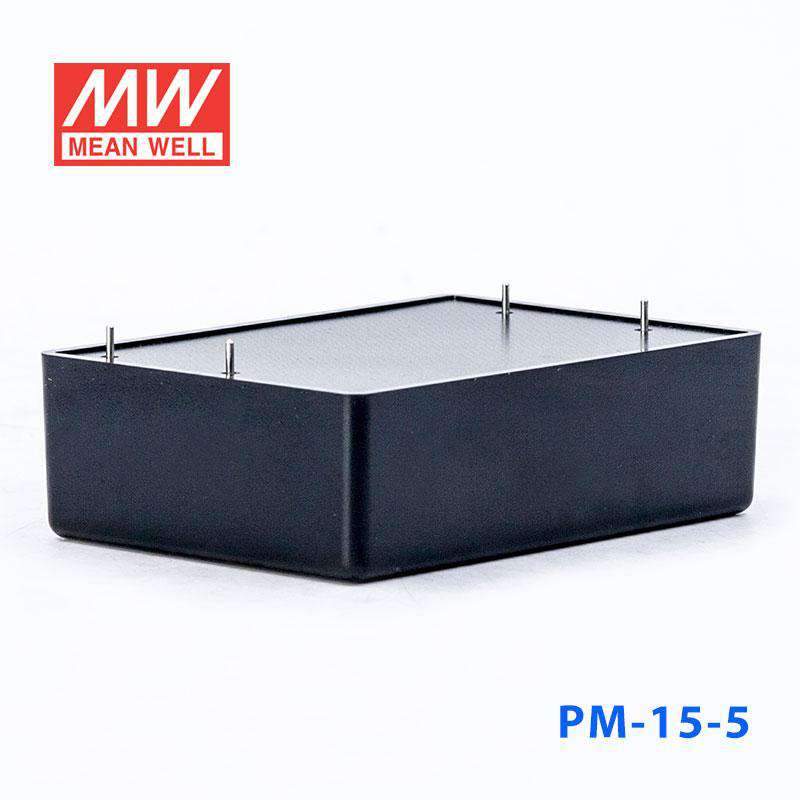

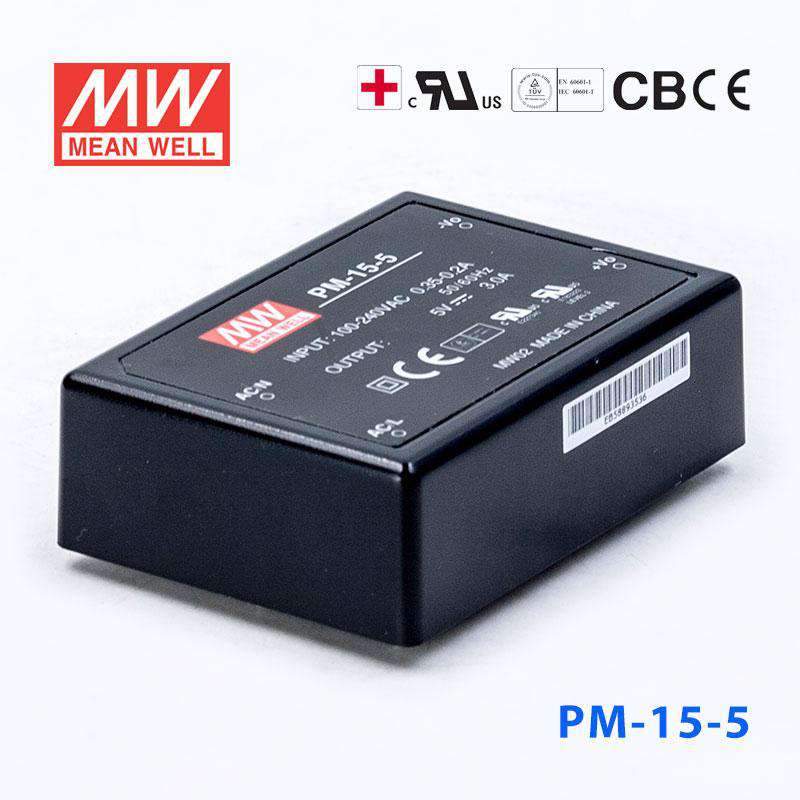

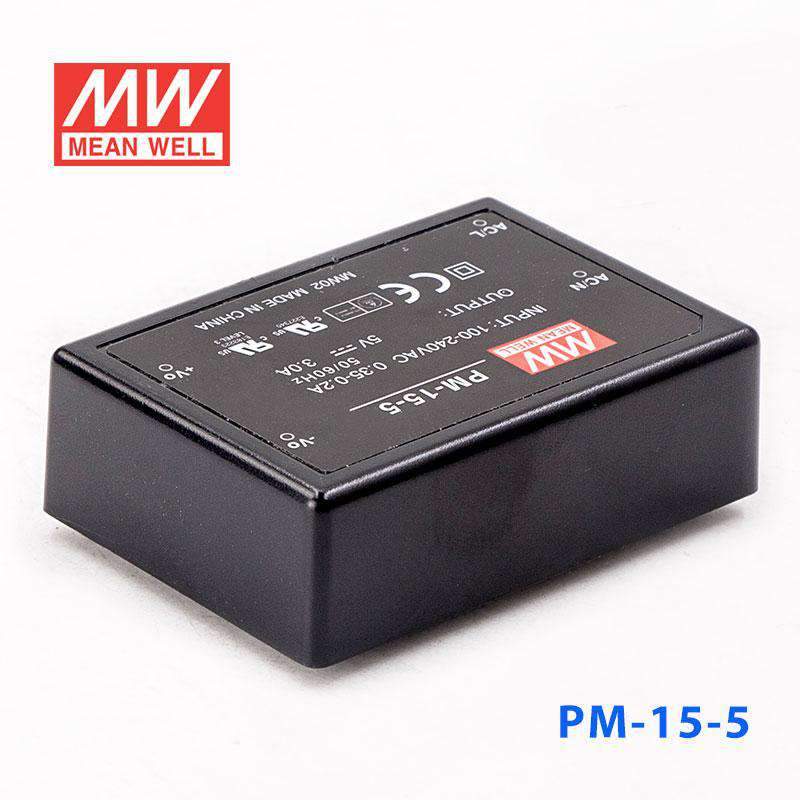

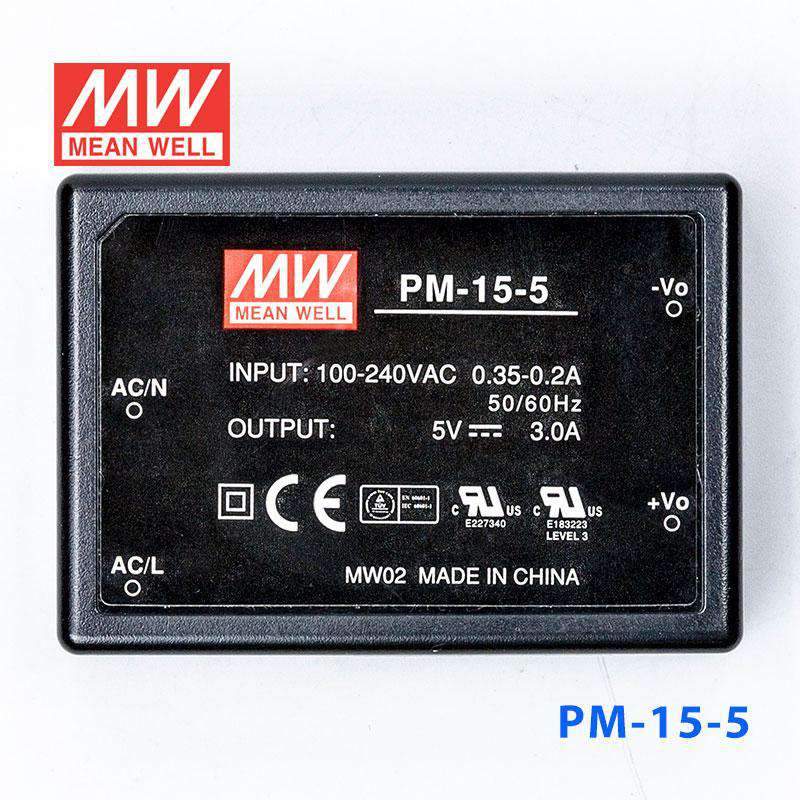

Mean Well PM-15-5 Power Supply 15W 5V
The PM-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.95 in
-
Width2.09 in
-
Height0.89 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
Can I use the PM-15-5 for 5V embedded systems or single-board control electronics?
Yes, it provides constant 5V output with up to 3A available. That makes it suitable for 5V embedded or control loads that fit within the 15W output rating.
Is the PM-15-5 a fit for 5V industrial logic or interface devices?
It can power 5V industrial logic or interface electronics where the total draw does not exceed 3A. The unit is rated for 15W total output, so both current and power need to stay within those limits.
Can this model support 5V USB-style or low-voltage automation electronics if the load is fixed at 5V?
It is intended for constant-voltage 5V applications, so it can be used for 5V electronics in automation or embedded equipment when the device accepts a regulated 5V DC supply. The sizing limit is 3A output current and 15W output power.
How much 5V load can the PM-15-5 support?
The output is rated at 5V and 3A, with 15W total power. For compatibility, the connected 5V load should stay at or below 3A and 15W.
Can the PM-15-5 be used in outdoor or unsealed equipment spaces?
The specified operating temperature range is -20°C to +70°C. No IP rating is listed, so the published specs do not show environmental sealing for outdoor, washdown, or wet-area use.
