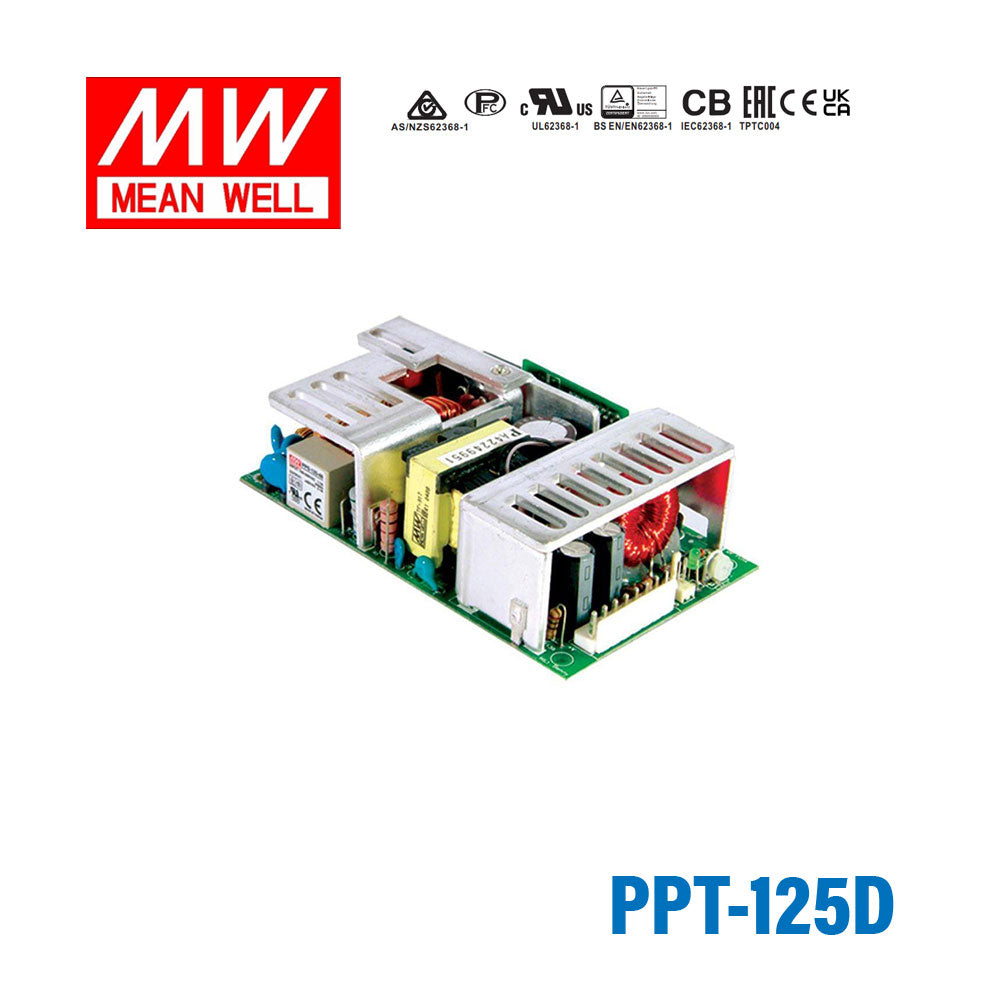

Mean Well PPT-125D Triple Output with PFC Function 125W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PPT-125D Triple Output with PFC Function 125W
Miniature size 3x5 inch, high power density
High efficiency, long life, and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Adjustable output voltage (±5%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B
Remote sense
Power on LED indicator
Short circuit, overload, and overvoltage protection
Extra peak load rating with 18CFM forced air cooling
-
BrandMean Well
-
SeriesPPT Series
-
Power Rating125 Watt
-
Output Voltage5 Volt
-
Rated Current7 Ampere
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.82 lb
::specification::
Frequently Asked Questions
Can I use the PPT-125D for industrial equipment that needs multiple regulated DC outputs from one supply?
Yes, this model is described as a triple output constant voltage power supply with 125W total power. That makes it suitable for industrial, embedded, or automation systems that need several regulated DC rails from one compact supply.
Is the PPT-125D a good choice for control systems that run from wide AC input ranges?
Yes, the input range is 90-264VAC and the CC voltage range is also listed as 90-264V. That supports use in equipment deployed across a broad AC supply range while providing regulated output power up to 125W.
Can this power supply support a 5V load rail in a larger embedded or automation assembly?
Yes, one listed output is 5V at 7A. In a multi-rail system, that 5V output can support embedded logic, control electronics, or peripherals while the unit's triple output design supports additional regulated rails within the overall 125W platform.
Is the PPT-125D suitable for space-constrained equipment builds?
It is designed in a 127.0 × 76.2 × 34.6 mm package and is described as a 5" x 3" compact size. For systems that need 125W and triple output in a relatively compact enclosure footprint, those dimensions are a relevant fit consideration.
How does the PPT-125D compare with the other PPT-125 series models?
In the listed sibling set, PPT-125A, PPT-125B, and PPT-125C are each shown at 79W, while PPT-125D is 125W. Based on the provided series data, PPT-125D is the highest-power model among those four part numbers.
Can the PPT-125D be used in demanding temperature conditions indoors?
The specified operating temperature range is -20°C to +70°C, which is broader at the high end than many enclosed AC/DC supplies. No IP rating is provided in the specs, so the data supports temperature suitability but does not confirm outdoor or water-exposed use.
