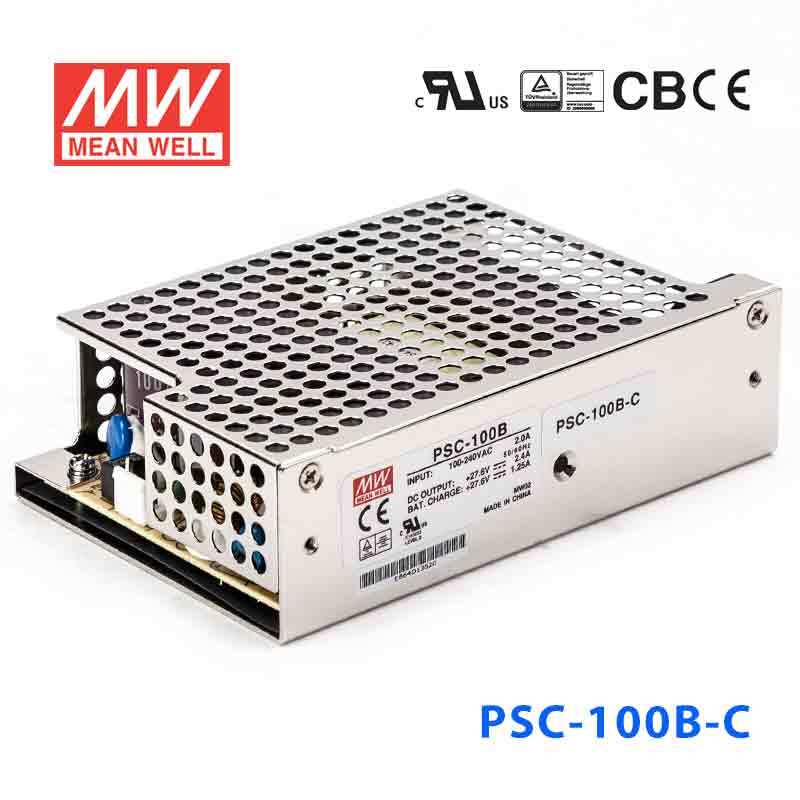

Mean Well PSC-100B-C Battery Chargers 100.74W 27.6V 2.4A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-100B-C Battery Chargers 100.74W 27.6V 2.4A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓5"x3" compact size
- ✓Models with L-Bracket and cover available(PSC-100x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Relay contact signal output for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating100.74 Watt
-
Output Voltage27.6 Volt
-
Rated Current2.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length5.12 in
-
Width3.35 in
-
Height1.46 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
Can the PSC-100B-C support a 27.6V DC backup rail in industrial equipment?
Yes, it is a constant-voltage 27.6V unit with a UPS function, which makes it suitable for battery-backed industrial equipment designed around that DC level. The connected load needs to stay within 100.74W and 2.4A.
Is the PSC-100B-C a fit for automation or control systems running from worldwide AC mains?
It is designed for broad AC compatibility because the input range is 90-264VAC. For the DC side, the equipment must be compatible with 27.6V constant-voltage output and remain within 2.4A and 100.74W.
Can I use the PSC-100B-C for a compact battery-backed communications cabinet?
It can fit smaller communications or control cabinets that use a 27.6V battery-backed supply and do not exceed 100.74W. The UPS function is relevant where backup continuity is part of the system design.
Would the PSC-100B-C work for low-power 27.6V alarm or monitoring systems?
Yes, for systems built around 27.6V DC and sized at or below 2.4A, this model is in range. It is better suited to lighter-duty loads than higher-draw 27.6V equipment that would need more than 100.74W.
How does the PSC-100B-C compare with the other PSC battery charger models?
For 27.6V output, the series includes PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A. For 13.8V output, it includes PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A.
Can the PSC-100B-C be used outdoors or in wide-temperature indoor environments?
Its operating temperature is rated from -20°C to +70°C, so the specified temperature window is broad for indoor equipment environments. The provided specs do not list an IP rating, so outdoor suitability is not established by this data.
