Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

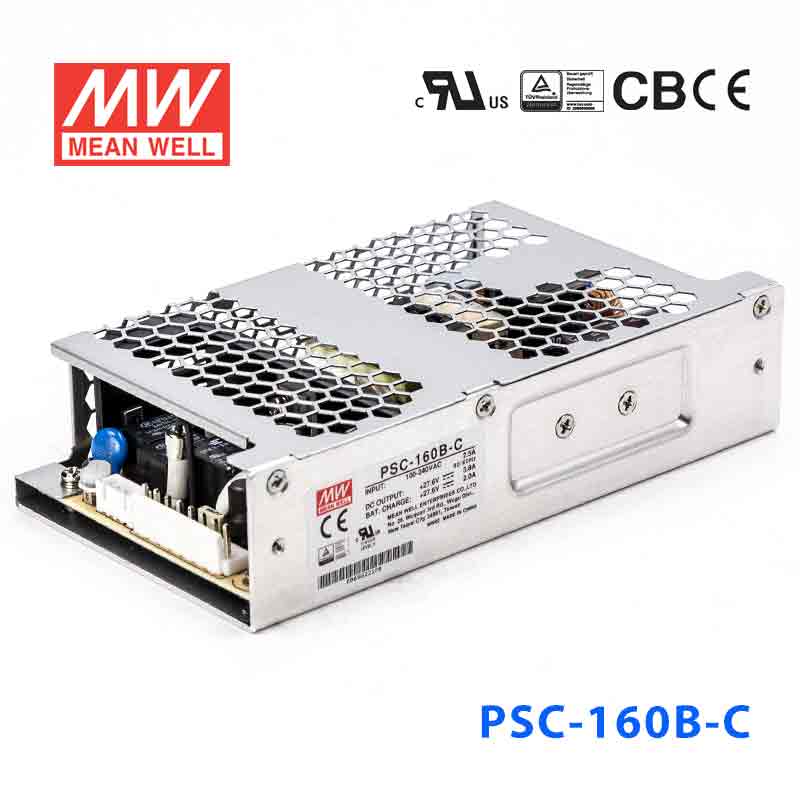

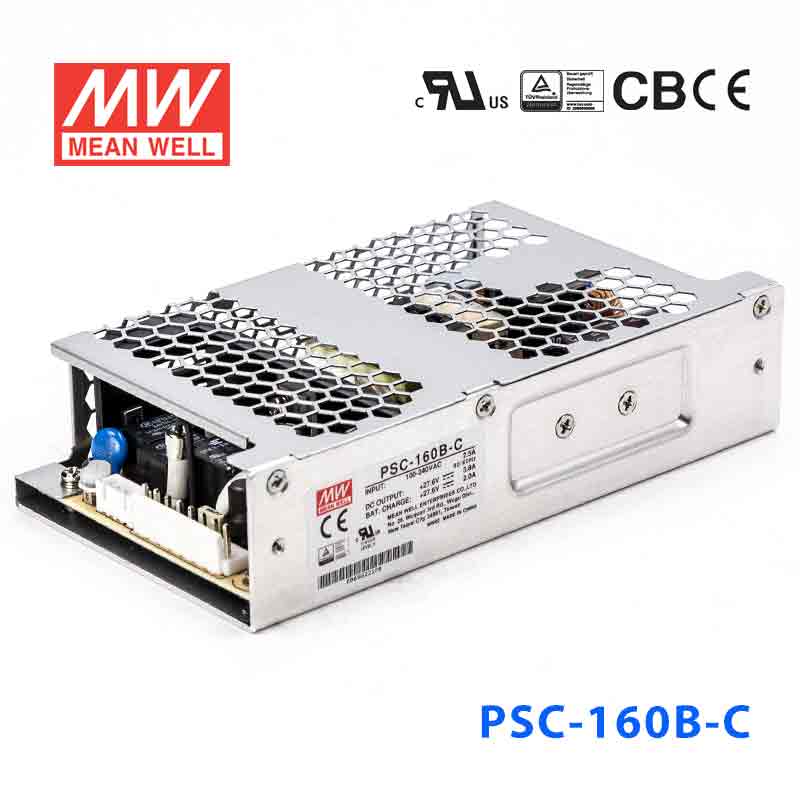

Mean Well PSC-160B-C Battery Chargers 160W 27.6V 3.8A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-160B-C Battery Chargers 160W 27.6V 3.8A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓5"x3" compact size
- ✓Models with L-Bracket and cover available(PSC-100x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Relay contat signal output for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in-test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating160 Watt
-
Output Voltage27.6 Volt
-
Rated Current3.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length6.12 in
-
Width3.35 in
-
Height1.46 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
Can I use the PSC-160B-C for a 24V industrial control panel battery backup system?
It is designed for 27.6V constant-voltage output and can deliver up to 3.8A, with 160W total output power. That makes it a fit for 24V-class control, automation, or panel backup applications that use a 27.6V charging profile and need UPS function support.
Is the PSC-160B-C suitable for telecom or IT backup equipment that runs on 24V-class DC battery systems?
This model provides 27.6V at up to 3.8A from a 90-264VAC input range, so it matches 24V-class battery-backed equipment that expects that charging voltage. Its UPS function also makes it relevant for standby power roles in IT or communications cabinets.
Can the PSC-160B-C be used in embedded or automation systems with higher DC load demand than smaller PSC models?
Yes, within its rating it offers 160W and 3.8A at 27.6V, which is higher than the 59.34W and 100.74W 27.6V models in the same series. It is better suited to 24V-class embedded or automation systems that need more charging or standby capacity than the lower-power B versions.
Is the PSC-160B-C intended for indoor or outdoor environments?
The provided specs list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. Without an IP rating in the product specs, outdoor exposure should not be assumed from this data alone.
How does the PSC-160B-C compare with other PSC 27.6V models?
Within the 27.6V group, PSC-35B and PSC-35B-C are 35.88W and 0.85A, PSC-60B and PSC-60B-C are 59.34W and 1.4A, PSC-100B and PSC-100B-C are 100.74W and 2.4A, and PSC-160B and PSC-160B-C are 160W and 3.8A. The PSC-160B-C is the highest-power 27.6V covered version listed among those siblings.
