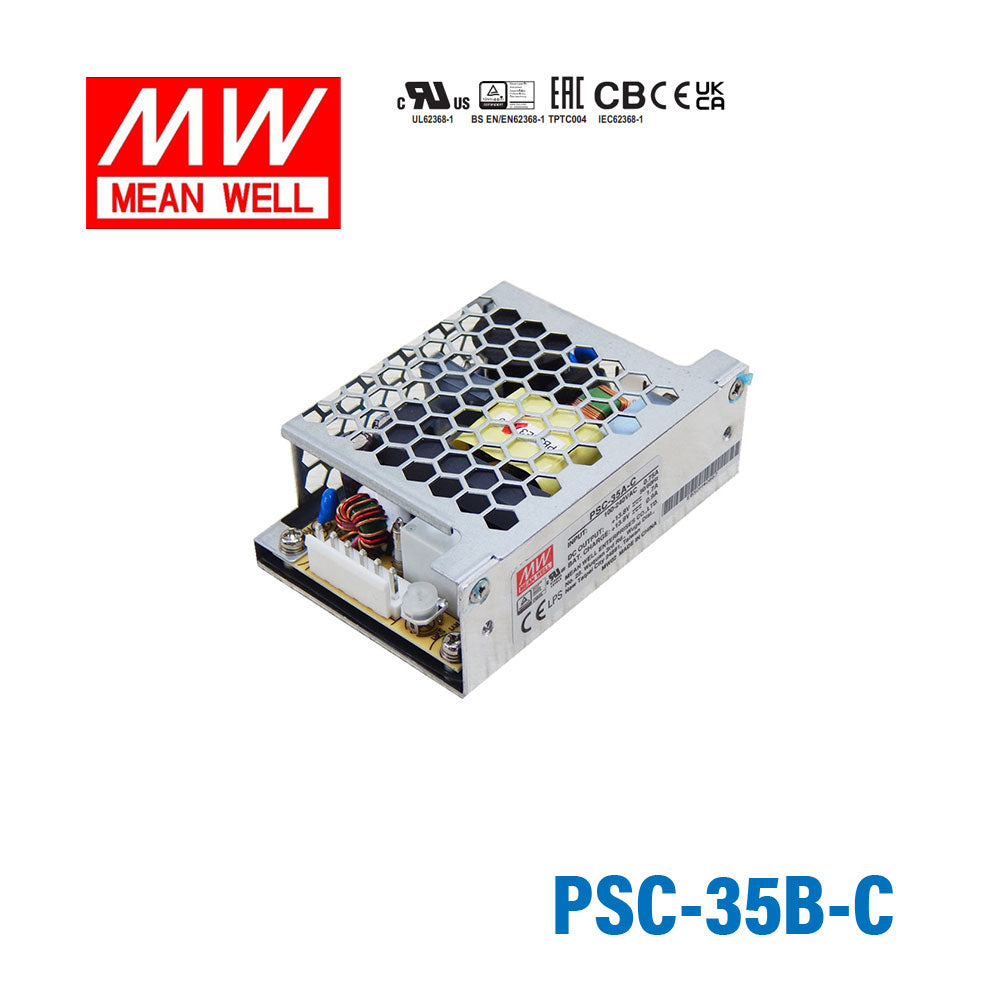

Mean Well PSC-35B-C Battery Chargers 35.88W 27.6V 0.85A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-35B-C Battery Chargers 35.88W 27.6V 0.85A - PFC
<1mA/240VAC
Key Features
- ✓Universal AC input / Full range
- ✓3.3"x2" compact PCB size
- ✓Models with L-Bracket and cover available (PSC-35x-C, X=A, B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating35.88 Watt
-
Output Voltage27.6 Volt
-
Rated Current0.85 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.4 in
-
Width2.35 in
-
Height1.18 in
-
Weight0.32 lb
::specification::
Frequently Asked Questions
Can I use the PSC-35B-C for a compact 24V control or automation backup application?
It is rated for 27.6V constant-voltage output at up to 0.85A, with 35.88W total output power. That suits lower-power 24V-class control or automation backup applications that use a 27.6V charging level.
Is the PSC-35B-C appropriate for small embedded systems that use a 24V-class battery-backed supply?
For low-power embedded equipment, this model supplies 27.6V and 0.85A from a 90-264VAC input range. It is a fit where the battery charging or standby requirement remains within 35.88W.
Can the PSC-35B-C be used when I need a covered version of a 27.6V low-power charger?
Yes, the feature list states that -C types are models with L-bracket and cover available, while this version keeps the same 27.6V, 0.85A, and 35.88W rating as PSC-35B. It is intended for the same low-power 24V-class applications with that covered variant format.
Is the PSC-35B-C suitable for outdoor enclosures?
The listed operating temperature range is -30°C to +70°C, but no IP rating is provided in the supplied specs. Without an IP rating, outdoor exposure or weather resistance should not be assumed from this information alone.
What separates the PSC-35B-C from the other 27.6V PSC models?
PSC-35B-C is rated at 35.88W, 27.6V, and 0.85A, while PSC-60B and PSC-60B-C are 59.34W and 1.4A, PSC-100B and PSC-100B-C are 100.74W and 2.4A, and PSC-160B and PSC-160B-C are 160W and 3.8A. Compared with PSC-35B, the PSC-35B-C keeps the same electrical rating but has dimensions of 86.4 × 59.6 × 30.0 mm and weight of 0.145 kg.
