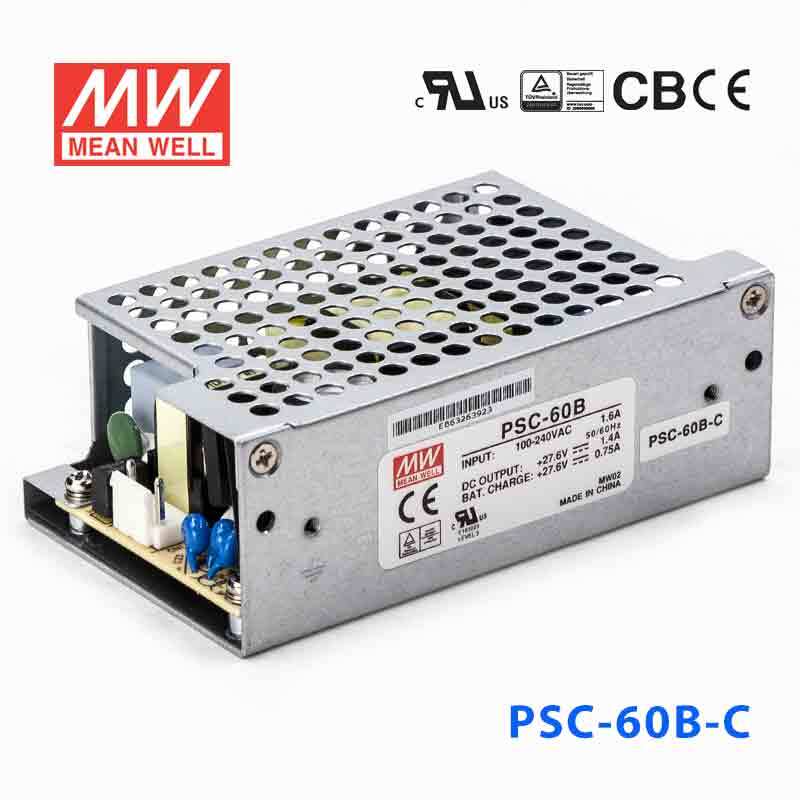

Mean Well PSC-60B-C Battery Chargers 59.34W 27.6V 1.4A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-60B-C Battery Chargers 59.34W 27.6V 1.4A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓Models with L-Bracket and cover available(PSC-60x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery reverse low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating59.34 Watt
-
Output Voltage27.6 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
Can I use the PSC-60B-C for a 24V battery-backed PLC, relay, or automation panel?
The PSC-60B-C delivers 27.6V constant-voltage output at up to 1.4A, with 59.34W total power. That makes it a candidate for smaller 24V-class backup applications where the connected control load stays within those limits.
Is the PSC-60B-C a fit for compact 24V embedded or industrial monitoring systems?
It can be used where the equipment is designed for a 27.6V source and needs no more than 1.4A or 59.34W. The built-in UPS function is useful in monitoring or automation systems that need charger and backup capability in one device.
Can the PSC-60B-C be used for lower-power 24V communications equipment?
Yes, it is positioned for lower-power 24V-class loads that are compatible with 27.6V constant-voltage output and remain within 1.4A. The -C version also has a larger 103.4 × 62.0 × 37.0 mm form factor and 0.29 kg weight, which should be checked against available panel space.
Is the PSC-60B-C suitable for outdoor cabinets or temperature-variable indoor areas?
The published operating temperature range is -20°C to +70°C, so it can handle a broad ambient range. Since no IP rating is listed in the provided specs, outdoor exposure or hose-down environments should not be assumed.
What other PSC models are available if I need a different voltage or power level than the PSC-60B-C?
For 27.6V outputs, the listed PSC options are PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A. For 13.8V outputs, the series includes PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, PSC-100A-CWE at 100.5W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A; PSC-60-CWE, PSC-60A-CWE, and PSC-100-CWE are named in the series list without full specs here.
