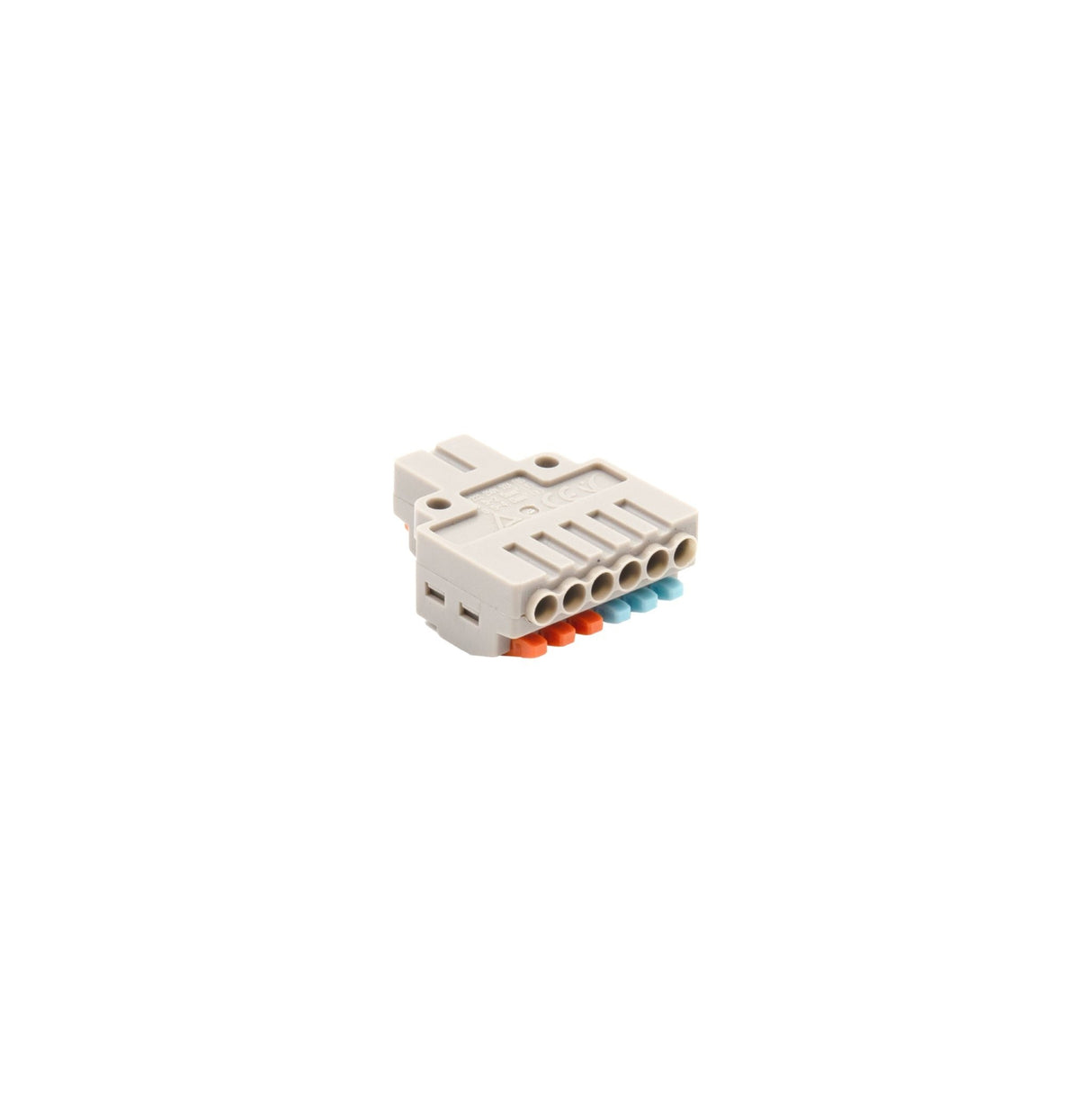

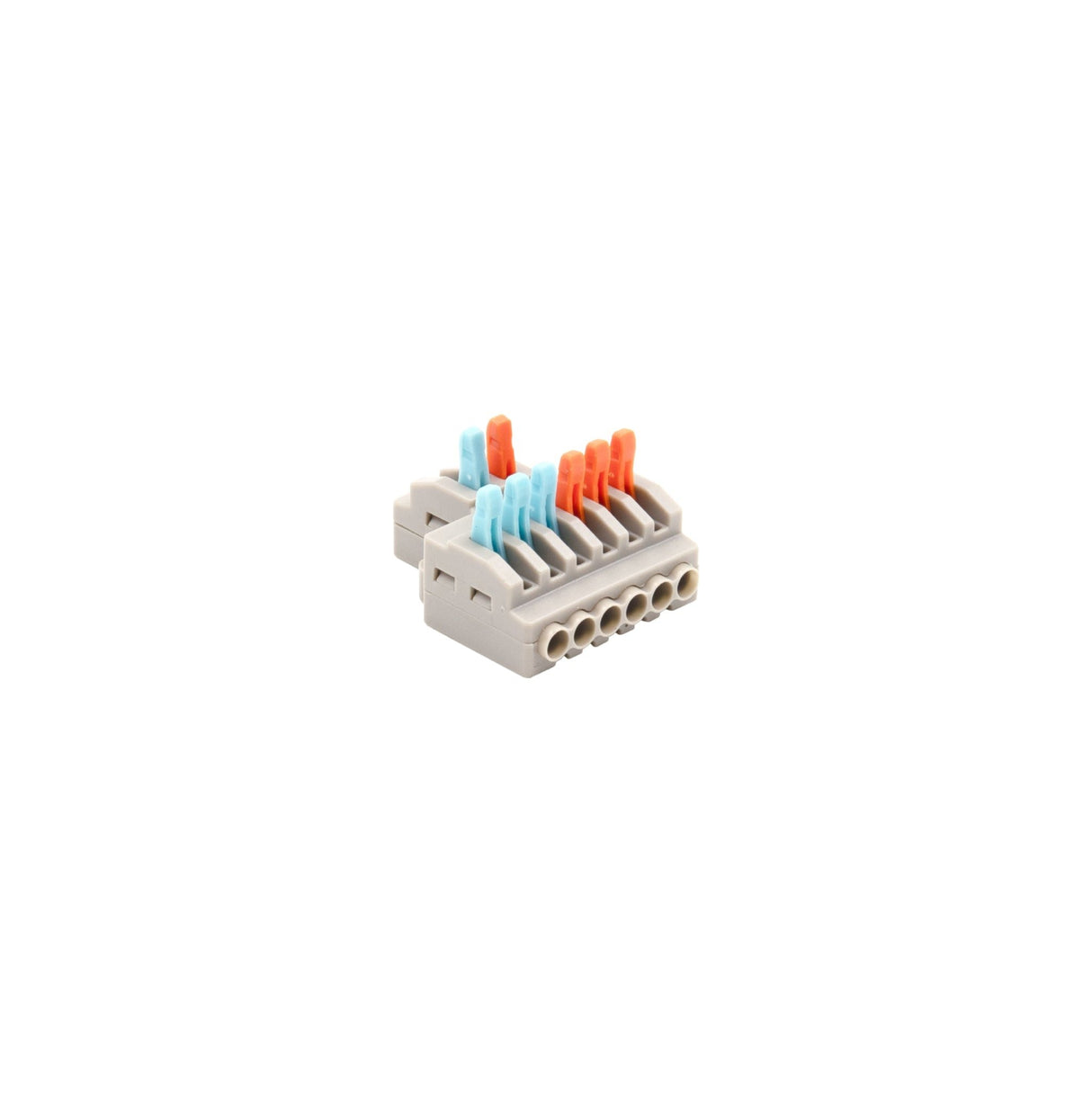

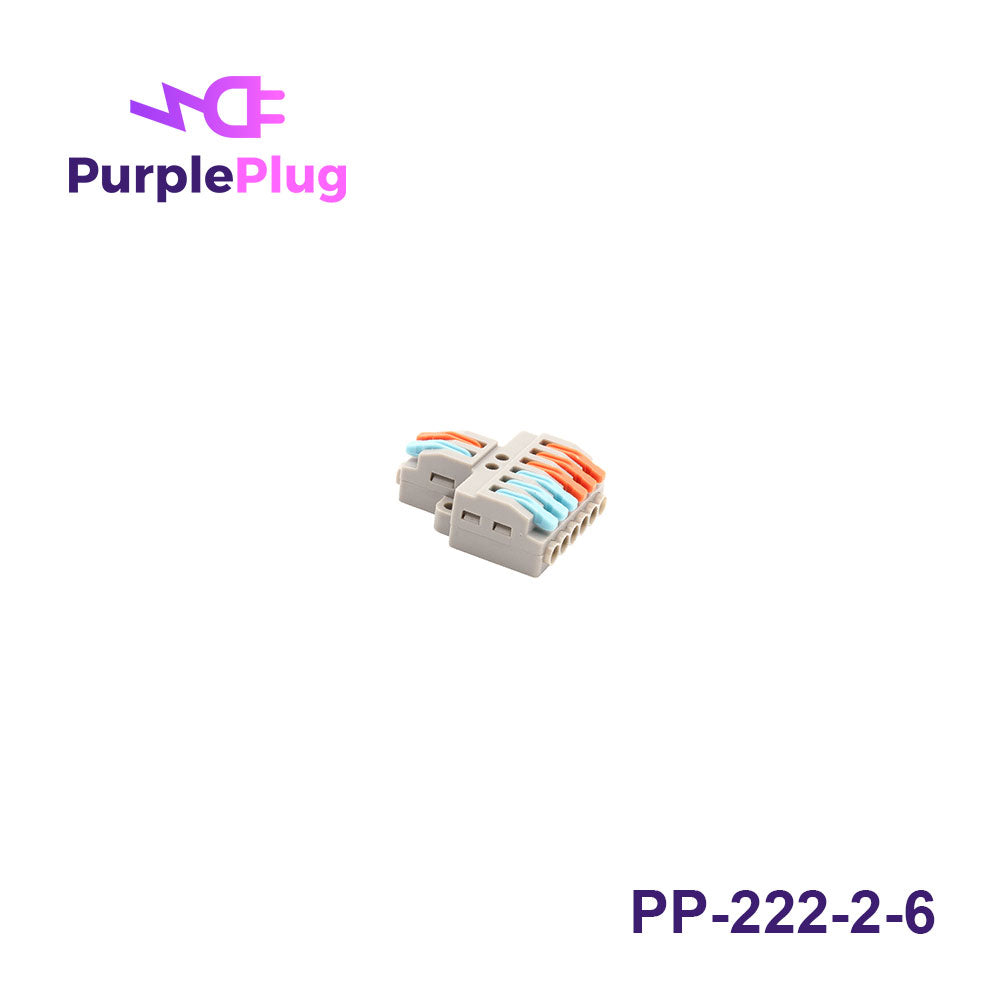

Purple Plug 222 Compact Splicing Connector, 2 in 6 out, with Lever
Notify me when it's back in stock
Your order will be processed within 24 hours
Purple Plug 222 Compact Splicing Connector, 2 in 6 out, with Lever
PurplePlug's 2-in, 6-out connector, crafted for seamless multi-wire junctions. With a robust PA66 housing and easy installation levers, secure wire connections are guaranteed.
Easy Installation and Durable Connections
Experience unmatched ease with PurplePlug's lever design, tailored for seamless navigation in even the most confined spaces. Bid farewell to tedious installations and messy removals; our connectors promise effortless connectivity, saving you time and effort. By replacing traditional electrical tape and twist-type connectors, our lever-nut design slashes wiring time by up to 70%, delivering cleaner, more space-efficient connections.
Premium Material and Safety Assurance
Our connectors feature a flame-retardant PA66 shell, delivering exceptional electrical insulation with a UL94V-2 fire rating. Crafted from insulated materials, they boast corrosion resistance, age resistance, and high-pressure resistance, ensuring long-term reliability and preventing electrical leakage. Each junction is equipped with independent shrapnel, enhancing safety and product quality by managing different wires separately.
Versatile Compatibility
PurplePlug connectors are built to withstand high loads, making them suitable for a myriad of applications. From household wiring to lighting fixtures and electrical equipment, our connectors excel in both everyday and professional settings.
Technical Specifications
- Applicable Wire: 20-12 AWG
- Europe Standard: 250V 32A; 0.5-2.5mm² (f), 0.5-4.0mm² (r)
- USA Standard: 600V 20A; 20-12AWG str/sol
- China Standard: 450V 32A; 0.5-2.5mm² (f), 0.5-4.0mm² (r)
- Shell Material: PA66
- Clamping Material: Copper
- Temperature Rating: -40°F to +185°F (-40°C to +85°C)
- Color: Blue and Orange
- UL Listed
-
BrandPurple Plug
-
SeriesPurple Plug Accessory
-
Rated Current32 Ampere
-
No of Output6
-
Warranty5 Year
-
Height0.57 in
::specification::
Frequently Asked Questions
What is the Purple Plug 222 Compact Splicing Connector, 2 in 6 out, designed for?
This model is designed for multi-wire junction applications where a compact connector helps organize several conductors in limited space. Its 2-in, 6-out format makes it a practical choice for projects that need a single connector body to support multiple branching points.
What makes the PP-222-2-6 different from simpler connector models?
The PP-222-2-6 stands out for its 2-in, 6-out configuration, which supports more complex distribution needs than basic lower-port-count connectors. It also features lever operation and a compact form factor intended to make handling easier in tighter spaces.
What are the main specifications of the Purple Plug 222 Compact Splicing Connector, 2 in 6 out, with Lever?
This model has a rated current of 32 A and uses a PA66 housing. It is sold as a compact 2-in, 6-out connector with lever operation and includes a 5-year warranty period.
Is this connector a good fit for space-constrained applications?
Yes, this model is specifically described as being tailored for use in confined spaces. Its compact design and lever style are positioned to support easier handling where larger connector formats may be less convenient.
What kind of durability or long-term reliability can buyers expect from this model?
The connector uses a robust PA66 housing and is backed by a 5-year warranty. Those two details make it a stronger option for buyers looking for a compact connector with durability expectations beyond short-term or one-off use.
