Purple Plug 222 Compact Splicing Connector, 3 Port 2 Way, with Lever
Notify me when it's back in stock
Your order will be processed within 24 hours

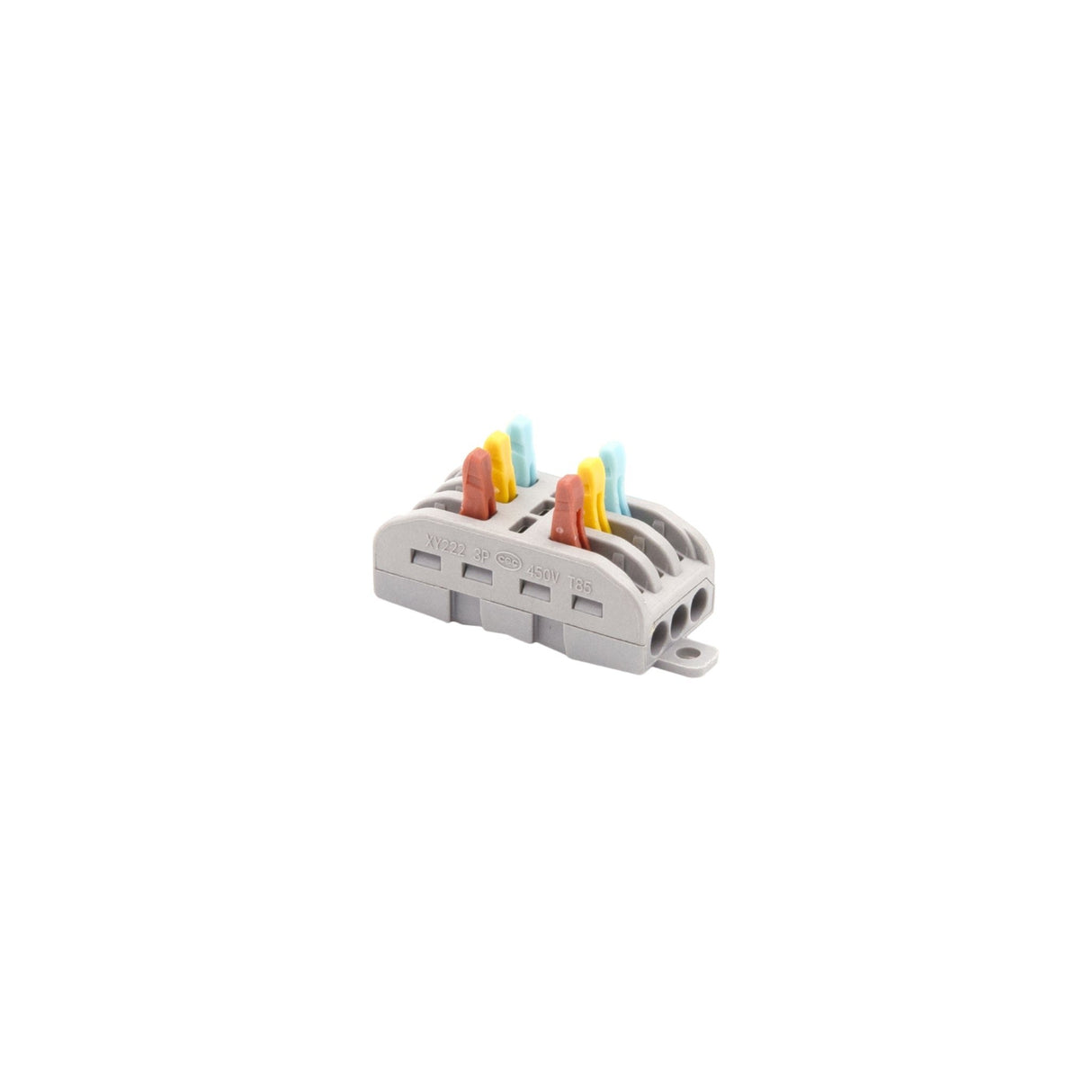

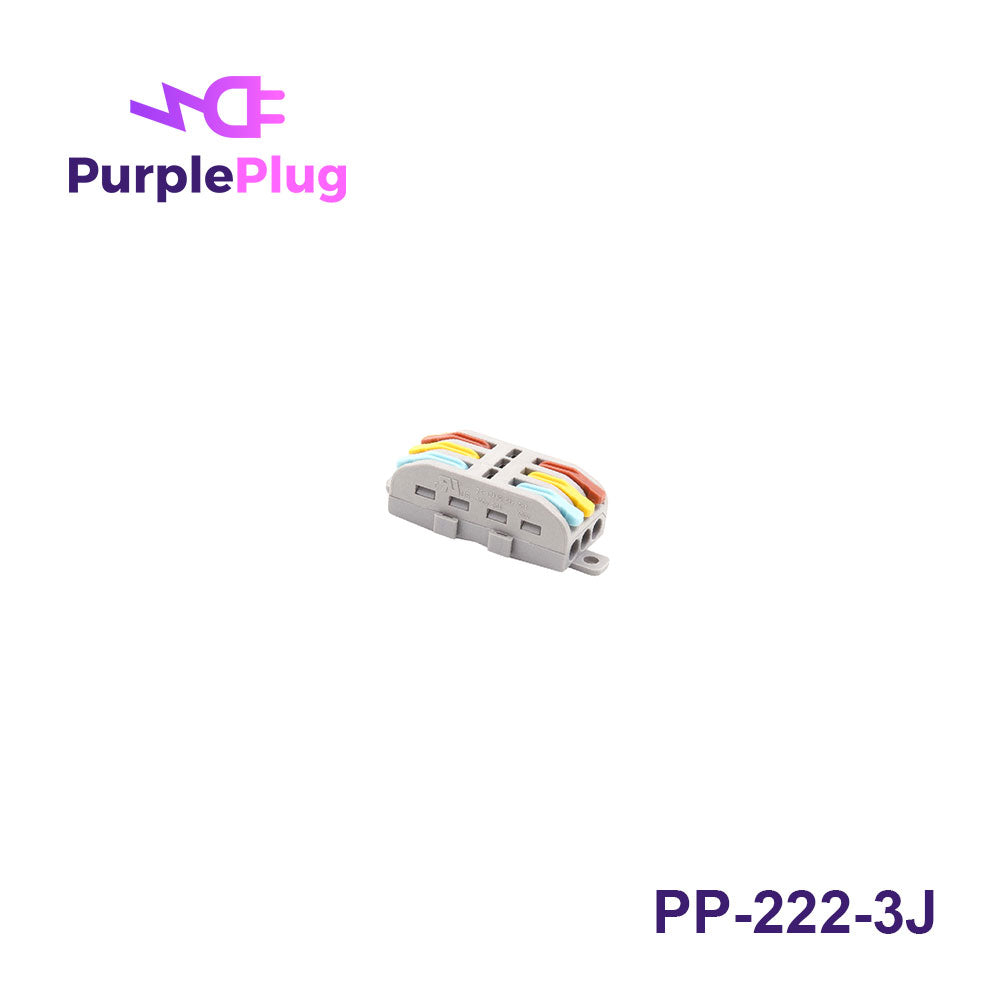

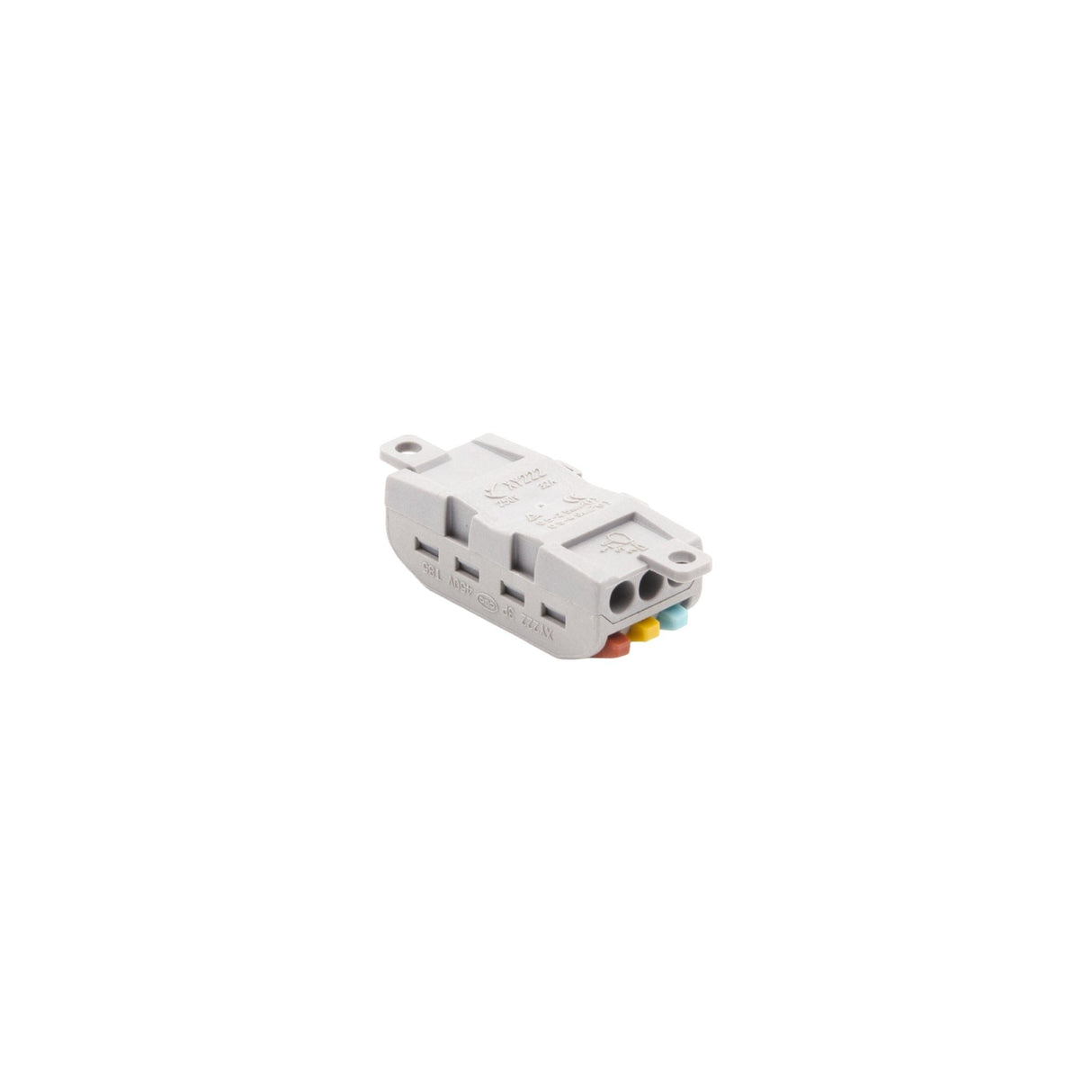

Purple Plug 222 Compact Splicing Connector, 3 Port 2 Way, with Lever
PurplePlug's 2 Port 3 Way connector, crafted for seamless multi-wire junctions. With a robust PA66 housing and easy installation levers, secure wire connections are guaranteed.
Easy Installation and Durable Connections
Experience unmatched ease with PurplePlug's lever design, tailored for seamless navigation in even the most confined spaces. Bid farewell to tedious installations and messy removals, saving you time and effort with the ability to connect wires within seconds. By replacing traditional electrical tape and twist-type connectors, our lever-nut design slashes wiring time by up to 70%, delivering cleaner, more space-efficient connections.
Premium Material and Safety Assurance
Our connectors feature a flame-retardant PA66 shell, delivering exceptional electrical insulation with a UL94V-2 fire rating. Crafted from insulated materials, they boast corrosion resistance, age resistance, and high-pressure resistance, ensuring long-term reliability and preventing electrical leakage. Each junction is equipped with independent shrapnel, enhancing safety and product quality by managing different wires separately.
Versatile Compatibility
PurplePlug connectors are engineered to endure high loads, making them suitable for a myriad of applications. From household wiring to professional installations, including lighting fixtures and electrical equipment, our connectors excel in both everyday and professional settings. Additionally, they are ideal for DIY projects, offering reliability and ease of use across various applications.
Technical Specifications
- Applicable Wire: 20-12 AWG
- Europe Standard: 250V 32A; 0.5-2.5mm² (f), 0.5-4.0mm² (r)
- USA Standard: 600V 20A; 20-12AWG str/sol
- China Standard: 450V 32A; 0.5-2.5mm² (f), 0.5-4.0mm² (r)
- Shell Material: PA66
- Clamping Material: Copper
- Temperature Rating: -40°F to +185°F (-40°C to +85°C)
- Color: Brown, yellow and blue
- UL Listed
-
BrandPurple Plug
-
SeriesPurple Plug Accessory
-
Rated Current32 Ampere
-
No of Output2
-
Warranty5 Year
-
Height0.57 in
::specification::
Frequently Asked Questions
What is the PP-222-3J used for?
The PP-222-3J is a compact splicing connector intended for multi-wire junctions in accessory and power connection applications. Its small form factor and lever-operated design make it a practical choice where space is limited and quick, clean cable management matters.
What are the main specifications of the Purple Plug 222 Compact Splicing Connector, 3 Port 2 Way, with Lever?
This model is a Purple Plug compact splicing connector with a 3 port 2 way configuration and lever-style operation. It is rated for 32 A and carries a 5-year warranty. The housing is made from PA66 for a durable construction.
How is the PP-222-3J different from a basic non-lever connector?
The main difference is its lever-based design, which is intended to make handling faster and cleaner than connectors that rely on a more fixed closure style. For buyers comparing options, this model is positioned around easier access in confined spaces while still focusing on secure wire retention.
Is the PP-222-3J a good fit for compact electrical enclosures or tight spaces?
Yes, this model is specifically described as being suited to confined spaces. Its compact body and lever format are intended to reduce the hassle of working in areas where larger connectors can be harder to manage.
Is the PP-222-3J built for durable long-term use?
This connector uses a robust PA66 housing, which supports its positioning as a durable accessory connector for repeated service and ongoing use. The included 5-year warranty also makes it a stronger fit for buyers who need a dependable component rather than a short-life consumable.
What should buyers check for compatibility when selecting the PP-222-3J?
Buyers should confirm that the application needs a compact splicing connector in this exact 3 port 2 way format rather than a larger or different connector style. This model is best matched to use cases that value a lever-operated connector, a 32 A rating, and a compact footprint.
