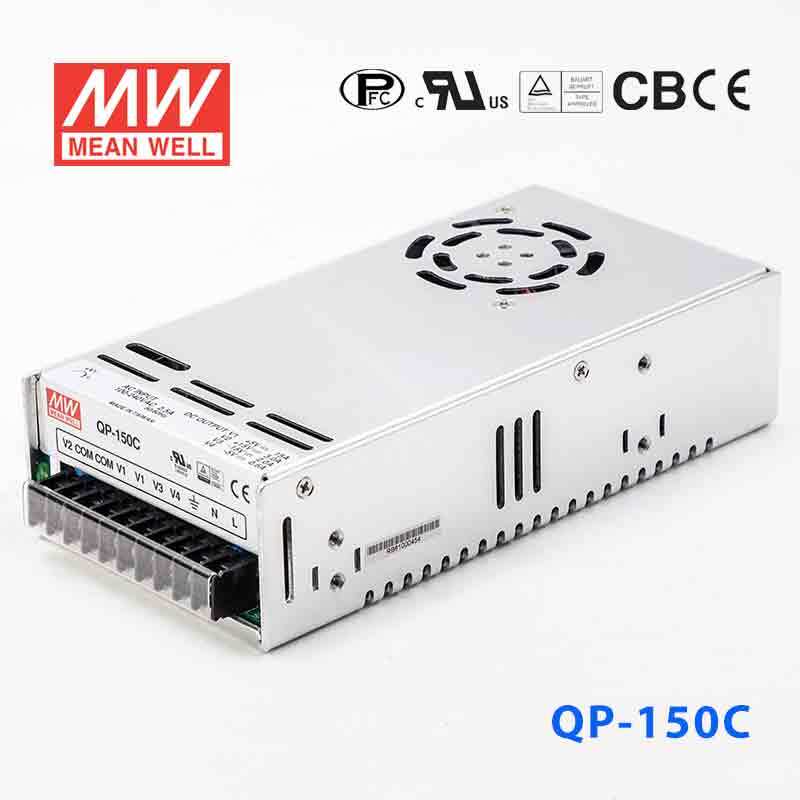

Mean Well QP-150-3C Power Supply 150W 5V 3.3V 15V -15V
The QP-150 is a 150W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesQP Series
-
Power Rating152 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output4
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.9 in
-
Height1.97 in
-
Weight2.05 lb
::specification::
Frequently Asked Questions
Can I use the QP-150-3C for an industrial controller that needs 5V logic and plus/minus analog rails?
Yes, this model is built for mixed-voltage equipment because it provides 5V, 3.3V, 15V, and -15V outputs in one quad-output supply. Its main 5V rail is rated at 10A and the total power is 152W, which suits control and interface hardware that combines digital logic with analog sections.
Is the QP-150-3C a fit for embedded test benches with multiple board voltages?
It can be a practical fit for embedded development or validation benches when the boards need 5V, 3.3V, 15V, and -15V from one constant-voltage source. The unit accepts 90-264VAC input and is rated for 152W, so it is aimed at fixed powered equipment rather than a single-rail design.
Can this power supply support legacy instrumentation or industrial I/O electronics that use +/-15V rails?
Yes, the inclusion of 15V and -15V makes it relevant for older measurement, interface, or signal-conditioning equipment that still uses bipolar rails alongside 5V and 3.3V logic. With 152W total power and a 10A 5V output, it is better suited to multi-rail electronic assemblies than to a simple single-voltage load.
Is the QP-150-3C suitable for outdoor or harsh-environment use?
The provided specs do not list an IP rating, so this product should not be treated as weatherproof or outdoor-rated from the information here. Its operating temperature range is -10C to +60C, so the installation environment needs to stay within that range.
How does the QP-150-3C compare with nearby QP series multi-output models?
Within the 150 class shown here, QP-150-3A is 146W with 5V and 10A, QP-150-3B is 150.2W with 5V and 10A, QP-150-3C is 152W with 5V and 10A, QP-150-3D is 146W, QP-150C is 146W, QP-150D is 146W, QP-150F is 146W, and QP-150B is listed without spec detail in the provided sibling data. The same family also spans 100W models, 200W models such as QP-200-3A at 200W with 5V and 15A and QP-200D at 203.4W with 5V and 15A, 316W models QP-320D and QP-320F with 5V and 20A, and 375W to 378W models including 24V and 5V variants.
