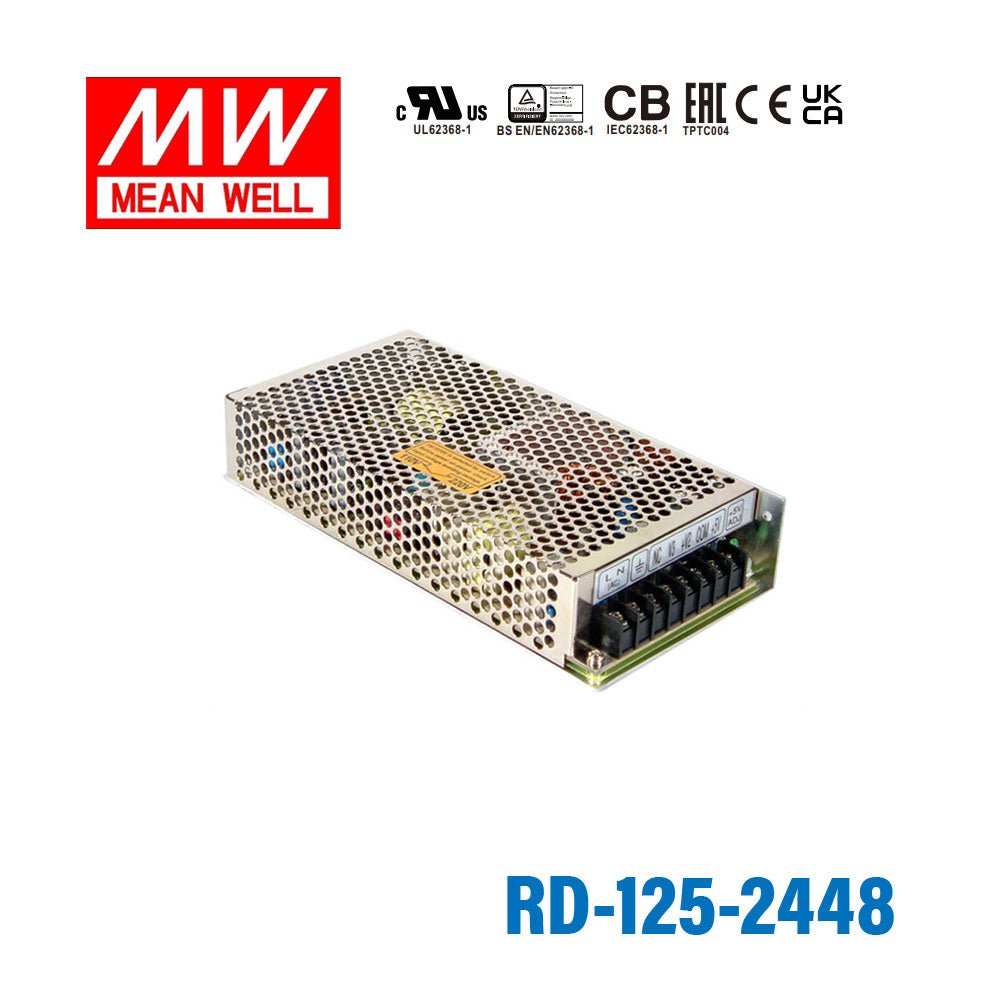

Mean Well RD-125-2448 AC-DC Dual output enclosed power supply 125W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RD-125-2448 AC-DC Dual output enclosed power supply 125W
The RD-125 is a 125W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRD Series
-
Power Rating125 Watt
-
Output Voltage24 Volt
-
Rated Current2 Ampere
-
Input Voltage88V~132V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the RD-125-2448 for a compact 24V control or automation enclosure?
Yes, this model provides a listed 24V output at 2A in a 125W enclosed AC-DC power supply format. That makes it relevant for smaller control or automation assemblies built around a 24V rail. Its miniature 199.0 × 98.0 × 38.0 mm housing can also help in tighter enclosures.
Is the RD-125-2448 suitable for 24V embedded equipment that needs dual outputs?
It can be a fit where the equipment needs a 24V rail and benefits from a dual output power supply. The listed output is 24V at 2A, with total rated power of 125W. Its enclosed construction and 0.7 kg weight also make it practical for compact equipment builds.
Can this model be used in industrial monitoring or light process equipment with 24V electronics?
For light process or monitoring equipment using 24V electronics, the RD-125-2448 offers a 24V output at 2A in a 125W class supply. The features also specify 5G vibration resistance and operation up to +70°C. Those are relevant specs for indoor equipment exposed to more demanding operating conditions.
Is the RD-125-2448 designed for outdoor service or wide indoor temperature swings?
The operating temperature range is listed as -25°C to +70°C, so it is specified for wide-temperature indoor use. No IP rating appears in the provided specs, so the available data does not confirm outdoor ingress protection. The environmental details given are the temperature range and 5G vibration resistance.
How does the RD-125-2448 compare with other RD models in the same family list?
Within the 125W subgroup shown here, RD-125-1224 is 125W 12V 3.7A, RD-125-1248 is 125W 12V 2.3A, and this RD-125-2448 is 125W 24V 2A. The rest of the provided siblings include RD-125A at 130.9W 5V 7.7A, RD-125B at 133.4W 5V 4.6A, RD-3513 at 35.1W 13.5V 1.3A, RD-35A at 32W 5V 4A, RD-35B at 35W 5V 2.2A, RD-50A at 54W 5V 6A, RD-50B at 53.6W 5V 4A, RD-65A at 66W 5V 6A, RD-65B at 68W 5V 4A, and RD-85A and RD-85B at 88W 5V 8A. RD-125-2412, RD-125-4812, RD-125-4824, RD-125A-OB, RD-125NB, and RD-65A-OB are listed without complete specs in the provided data.
