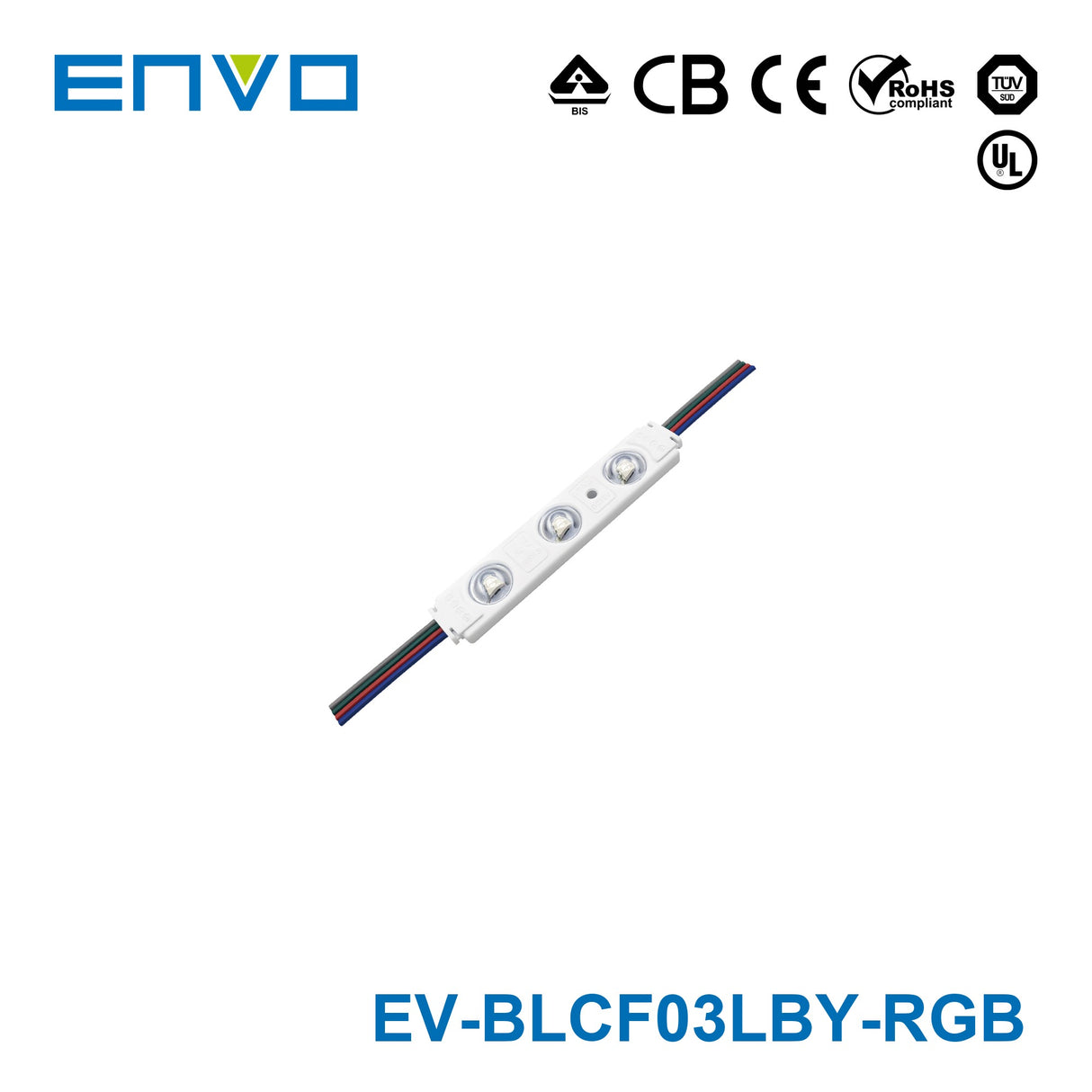

ENVO ChromaFlux LED Module Backlit - Triple LED
The EV-BLCF03LBY-RGB is an ENVO LED module (12VDC, 0.65W, operating temperature: -25~+60°C).
Key Features
- ✓ Input voltage: 12VDC
- ✓ Power: 0.65W
- ✓ Rated current: 0.054A
- ✓ Dimmable
- ✓ Ingress protection: IP66
- ✓ Operating temperature: -25~+60°C
- ✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesChromaFlux
-
Power Rating0.65 Watt
-
Rated Current0.05 Ampere
-
Dimming ControlDimmable
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length3.43 in
-
Width0.69 in
-
Height0.33 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the ENVO ChromaFlux LED Module Backlit - Triple LED RGB designed for?
This module is designed for backlit signage where strong visibility and RGB color output are important. It is suited to commercial environments such as airports, metros, banks, buildings, shopping malls, and other illuminated sign applications.
What sign depth is this LED module best suited for?
The ENVO ChromaFlux LED Module is intended for signs with a depth of 8-20 cm. That makes it a practical fit for a range of backlit channel letters and illuminated sign cabinets that need even light coverage.
How bright is each module, and what is its beam angle?
Each module is rated at 33 lm of light output. It also uses a 160° optic lens, which helps spread light broadly and evenly across the sign face.
Is this LED module dimmable?
Yes, this model is listed as dimmable. That makes it suitable for signage projects where brightness control is needed to match ambient conditions or visual requirements.
Is this module suitable for demanding indoor or outdoor environments?
It is rated for operation from -25 °C to 60 °C, which supports use in a wide range of environmental conditions. This temperature range makes it appropriate for many commercial signage applications exposed to heat, cold, or seasonal weather changes.
What are the power and current ratings of this model?
This LED module is rated at 0.6500 W with a rated current of 0.0540 A. These specifications make it a low-power signage lighting option for projects that need efficient illumination.
How long is the expected service life, and what warranty is offered?
The module has a stated lifetime of 50,000 hours. It also carries a 5-year warranty period, which supports long-term use in professional signage applications.
What makes this RGB signage module different from a standard narrow-beam module?
This model combines RGB output with a wide 160° beam angle, helping deliver broader and more uniform illumination across backlit signage. Its triple LED design and 33 lm output per module make it better suited to applications where color and even light distribution both matter.
