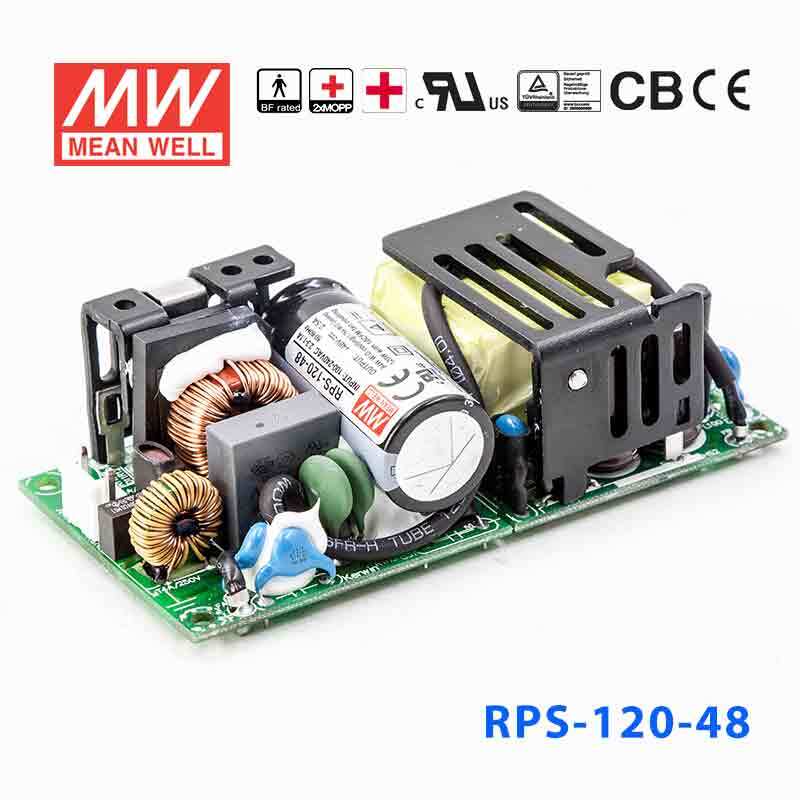

Mean Well RPS-120-48 Green Power Supply W 48V 2.5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-120-48 Green Power Supply W 48V 2.5A - Medical Power ...
The RPS-120 is a 120W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION RESISTANCE IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating84 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPS-120-48 for a 48V telecom or network device?
Yes, if the equipment needs a constant 48V DC output and draws no more than 2.5A. Its 84W rating and 80-264VAC input range make it suitable for 48V equipment powered from common AC mains.
Is this power supply suitable for 48V industrial control or monitoring equipment?
It can be used for industrial or monitoring equipment that specifically requires 48V constant voltage at up to 2.5A. The main sizing check is that the total load stays within 84W and does not exceed 2.5A.
Can the RPS-120-48 power compact embedded or communication hardware?
It is a compact option for embedded or communications hardware needing 48V DC at up to 2.5A. The small 101.6 × 50.8 × 29.0 mm form factor and 0.15 kg weight help in space-sensitive equipment designs.
Is the RPS-120-48 a fit for medical-grade 48V equipment?
The unit is described as medical safety approved and features extremely low leakage current. That makes it relevant for medical equipment requiring 48V constant voltage, provided the load is within 2.5A and 84W.
Can I use the RPS-120-48 outside or in a cold equipment room?
The specified operating range is -30°C to +70°C, so it covers cold and warm operating conditions within that band. No IP rating is provided in the specs, so outdoor suitability is not confirmed by this product data.
What are the main output options around the RPS-120-48 in the same series?
The RPS-120 family includes RPS-120-12 and RPS-120-12-C at 84W, 12V, 10A; RPS-120-15 and RPS-120-15-C at 84W, 15V, 8A; RPS-120-24 and RPS-120-24-C at 84W, 24V, 5A; RPS-120-27 and RPS-120-27-C at 85W, 27V, 4.5A; and RPS-120-48 plus RPS-120-48-C at 84W, 48V, 2.5A. The related RPS-120S family steps up to RPS-120S-12 at 114W, 12V, 9.5A; RPS-120S-15 at 114W, 15V, 7.6A; RPS-120S-24 at 120W, 24V, 5A; RPS-120S-27 at 119.9W, 27V, 4.44A; and RPS-120S-48 at 120W, 48V, 2.5A.
