Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

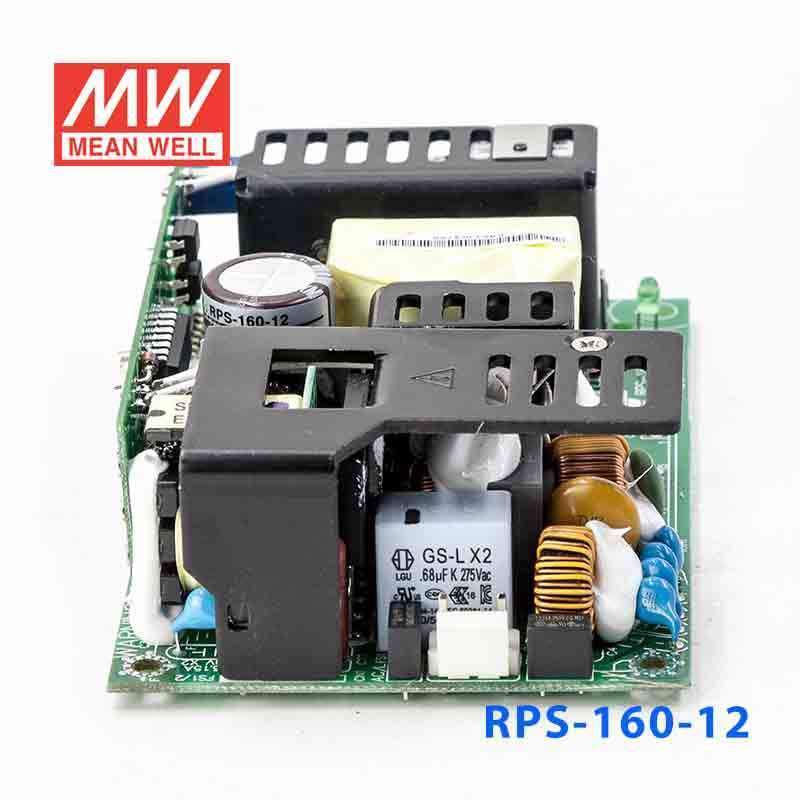

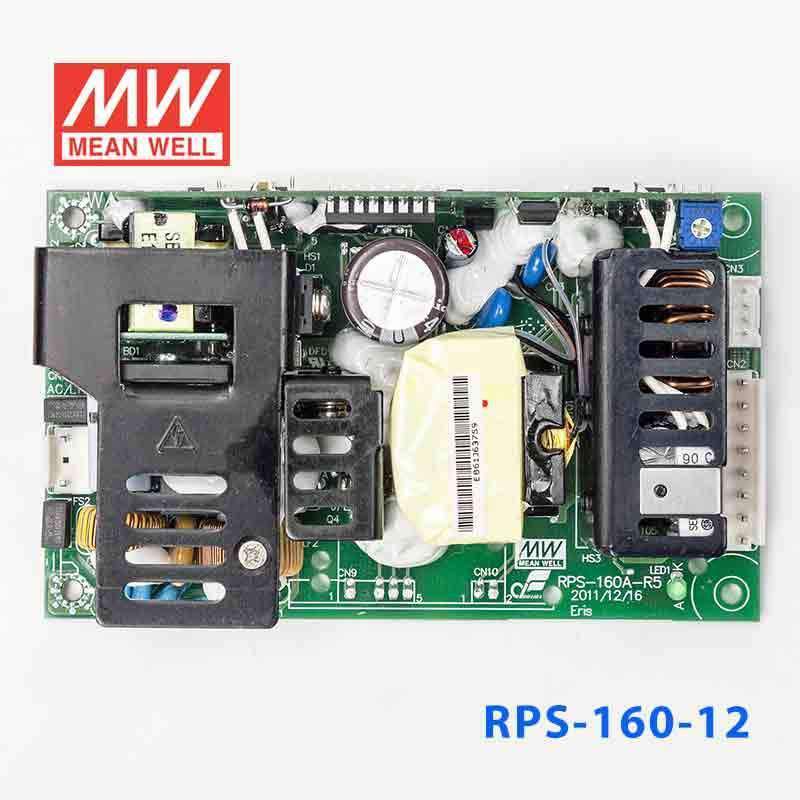

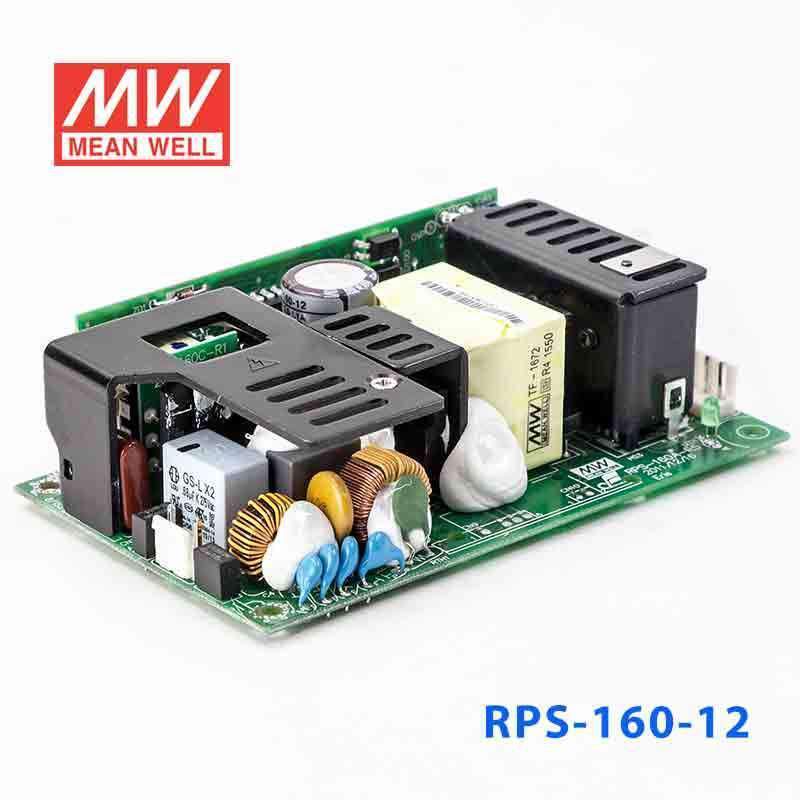

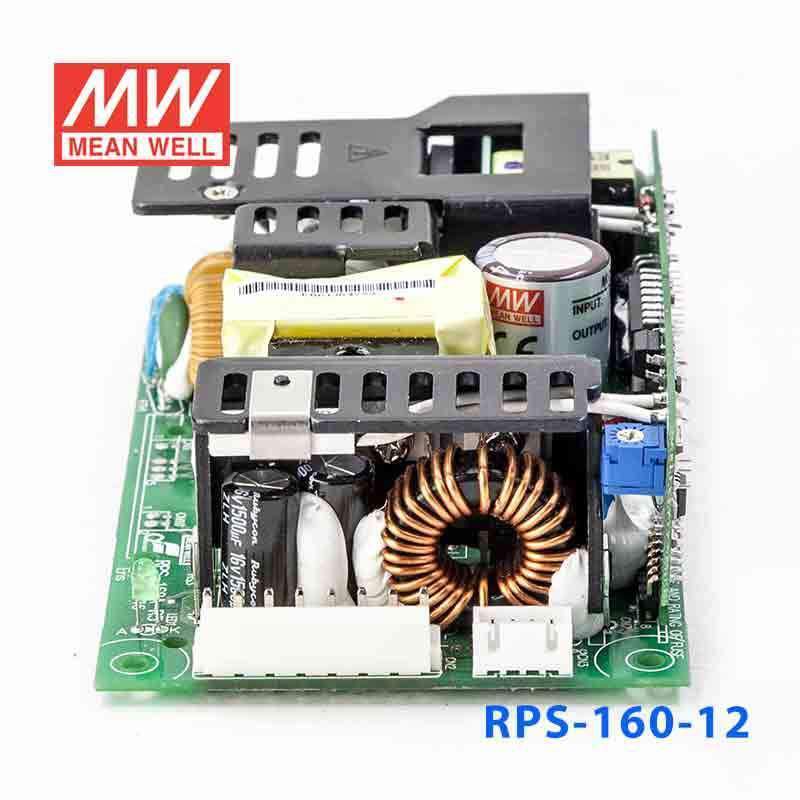

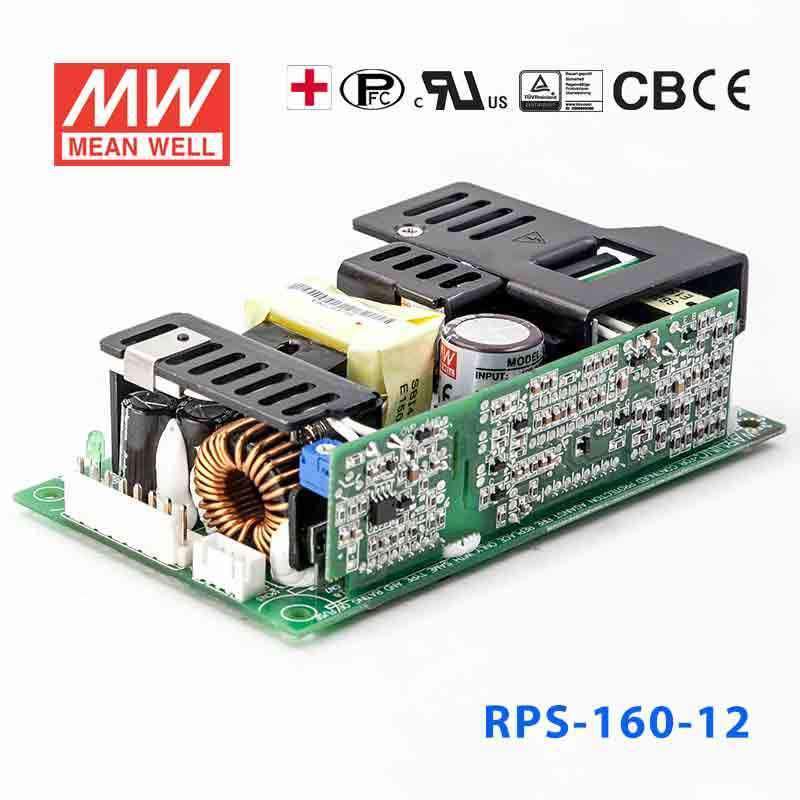

Mean Well RPS-160-12 Green Power Supply W 12V 9.1A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-160-12 Green Power Supply W 12V 9.1A - Medical Power ...
The RPS-160 is a 160W Mean Well power converter (input range: 90~264VAC, operating temperature: -20~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating112.2 Watt
-
Output Voltage12 Volt
-
Rated Current9.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can the RPS-160-12 power a 12V industrial control panel or automation assembly?
Yes, it is a constant voltage 12V supply rated for 9.1A and 112.2W. That makes it suitable for 12V control electronics, monitoring hardware, or automation assemblies that stay within those limits.
Is the RPS-160-12 a fit for embedded systems with higher 12V current demand?
It can be a good match for embedded systems that need more current on a 12V rail, because it provides up to 9.1A. The 127.0 x 76.2 x 34.6 mm form factor is larger than the smaller RPS-120S units, but still compact for enclosed equipment.
Can I use this power supply for 12V medical or laboratory equipment?
It is medical safety approved, so it can be considered for 12V medical or lab equipment that requires that approval class and fits within 112.2W. Its no load power consumption is specified at less than 0.5W, which can also matter in low-idle systems.
Is the RPS-160-12 suitable for outdoor installations or unsealed enclosures?
No IP rating is listed, so this model is better suited to indoor equipment or protected housings instead of exposed outdoor locations. The operating temperature range is -20°C to +70°C, so temperature capability should be considered along with enclosure protection.
How does the RPS-160-12 compare with the other RPS-160 models?
The RPS-160 family includes 5V at 20A and 103W, 12V at 9.1A and 112.2W, 15V at 7.3A and 112.5W, 24V at 4.6A and 113.4W, and 48V at 2.3A and 113.4W. The family keeps a similar power class while changing output voltage and current for different DC bus requirements.
