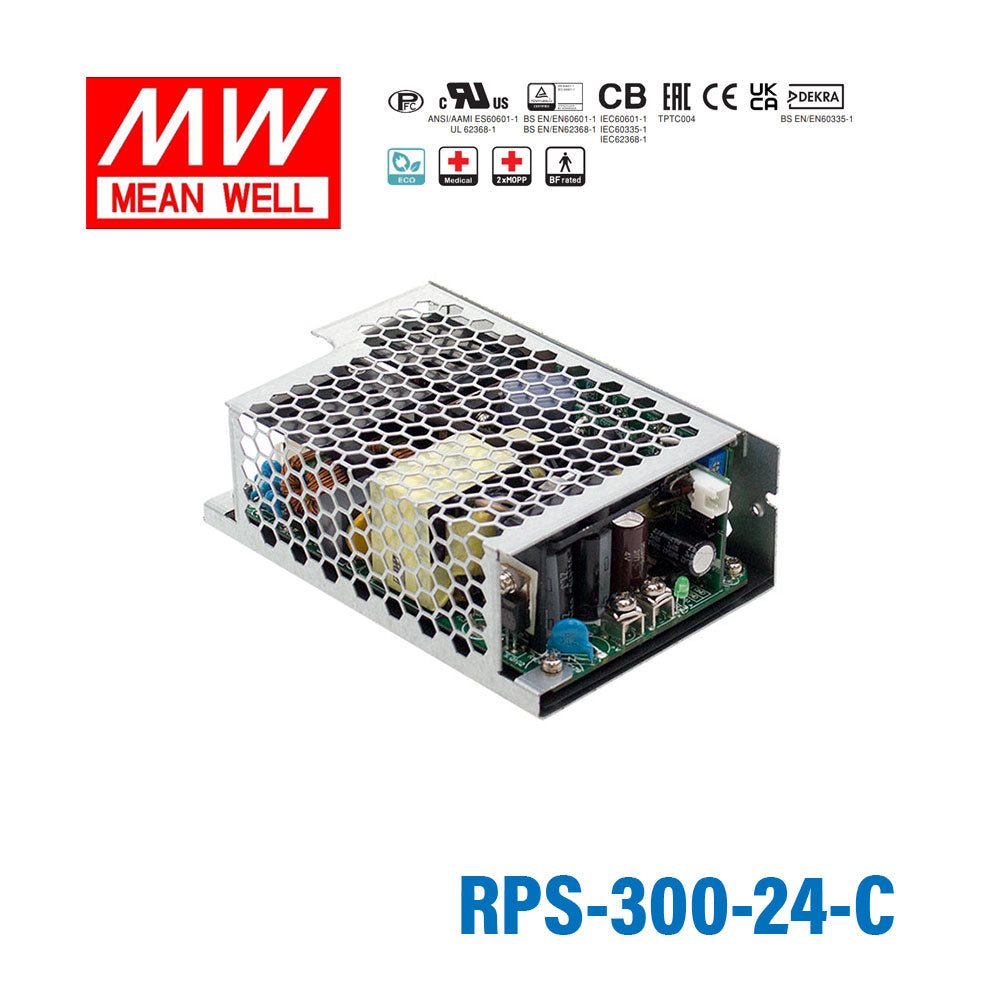

Mean Well RPS-300-24-C Green Power Supply W 24V 8.33A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-300-24-C Green Power Supply W 24V 8.33A - Medical Pow...
The RPS-300-24 is a 300W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.33 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-300-24-C for a 24V control cabinet or industrial subsystem?
Yes, if the load requires constant 24V output and the total demand does not exceed 8.33A or 200W. That makes it suitable for 24V control, automation, and embedded equipment that needs a regulated DC source.
Is this a fit for 24V medical electronics or diagnostic systems?
It is specified as a medical power supply and includes medical safety approval along with extremely low leakage current. For 24V devices that need up to 8.33A and 200W, the published output rating supports that class of application.
Can the RPS-300-24-C power a 24V test or instrumentation platform with multiple modules?
It can when the combined platform operates from a constant 24V bus and remains within 8.33A and 200W total. Its 90-264VAC input range also helps in equipment that may be used across different AC input conditions.
What environment is the RPS-300-24-C rated for?
The unit is rated for operation from -30°C to +70°C, which covers a wide temperature window. No IP rating is listed in the provided specifications, so these specs do not verify suitability for direct outdoor exposure or washdown conditions.
What are the sibling output options around the RPS-300-24-C?
Within the RPS-300 family, the output choices are 12V at 16.67A and 200W, 15V at 13.33A and 200W, 24V at 8.33A and 200W, 27V at 7.4A and 200W, and 48V at 4.17A and 200.2W. This model is the 24V, 8.33A, 200W -C version, with listed dimensions of 130.0 × 86.0 × 43.0 mm and weight of 0.563 kg.
