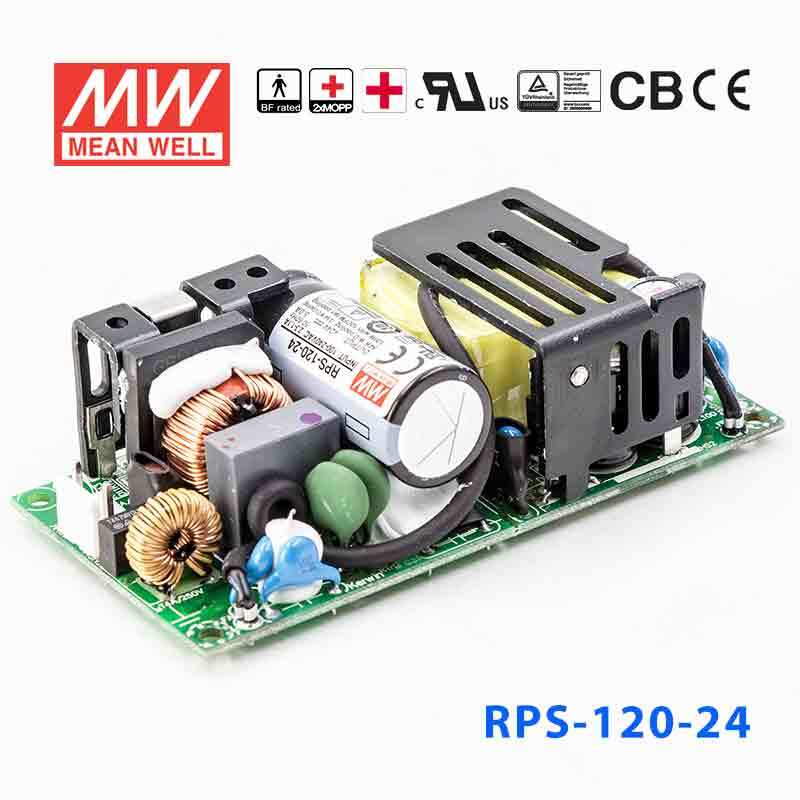

Mean Well RPS-120-24 Green Power Supply W 24V 5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-120-24 Green Power Supply W 24V 5A - Medical Power Su...
The RPS-120 is a 120W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION RESISTANCE IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating84 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPS-120-24 for a 24V industrial controller or PLC accessory?
Yes, if the equipment requires constant 24V DC and draws no more than 5A or 84W. That makes it suitable for many 24V control, automation, and interface loads within those limits.
Is the RPS-120-24 suitable for 24V sensors, relays, or industrial I/O assemblies?
It can be used where the total 24V load stays within 5A and 84W. Because it is a constant-voltage model, it fits equipment designed to run from a regulated 24V DC rail rather than a constant-current source.
Can this model power 24V medical or laboratory equipment?
Yes, for medical or lab devices that need 24V DC and stay at or below 5A output current. The unit is medical safety approved, which is relevant when the power supply is being selected for medical equipment builds.
Will the RPS-120-24 work in low-temperature or high-temperature indoor equipment?
The specified operating temperature range is -30°C to +70°C, so it covers a wide indoor operating window. Since no IP rating is listed, it is best used inside equipment or a protective enclosure rather than in direct outdoor exposure.
How does the RPS-120-24 differ from the other RPS-120 voltage versions?
In the RPS-120 range, the main outputs are 12V 10A 84W, 15V 8A 84W, 24V 5A 84W, 27V 4.5A 85W, and 48V 2.5A 84W. The RPS-120-24 is the 24V 5A 84W version, while the RPS-120-24-C keeps the same electrical rating with a different 103.4 × 62.0 × 40.0 mm, 0.24 kg housing instead of 101.6 × 50.8 × 29.0 mm and 0.15 kg.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-120 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-120-24-C Green Power Supply W 24V 5A - Medical Power Supply | 84W | 24V | 5A | Indoor | $26.43 | View |
| Mean Well RPS-120-12 Green Power Supply W 12V 10A - Medical Power Supply | 84W | 12V | 10A | Indoor | $25.45 | View |
