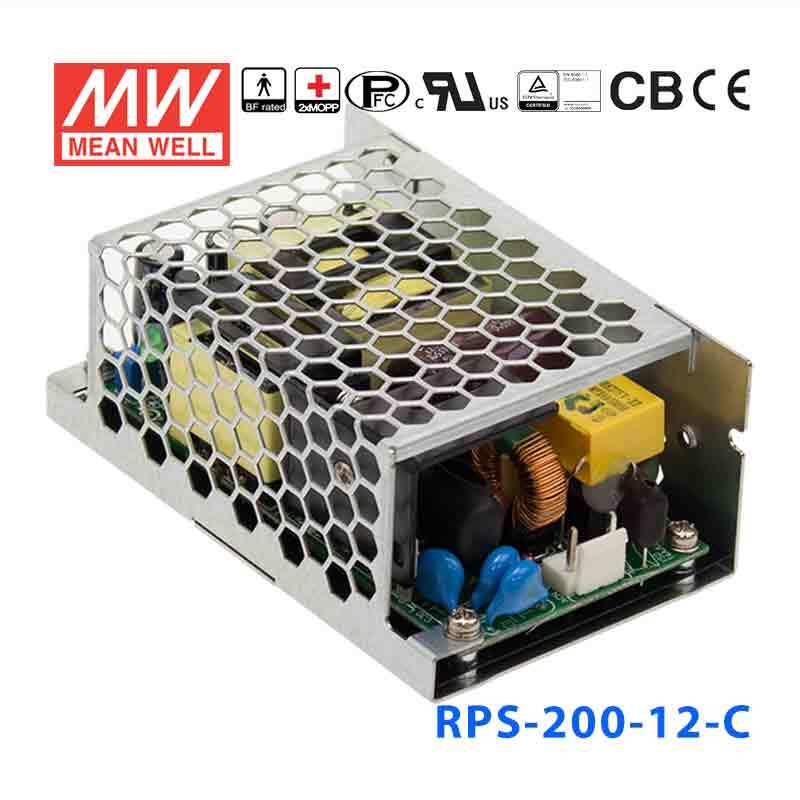

Mean Well RPS-200-12-C Green Power Supply W 12V 11.7A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-12-C Green Power Supply W 12V 11.7A - Medical Pow...
The RPS-200-12 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating140.4 Watt
-
Output Voltage12 Volt
-
Rated Current11.7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-12-C for a 12V automation cabinet or machine-control build?
Yes, it is a constant-voltage 12V power supply rated for 11.7A and 140.4W, which fits higher-current 12V control and automation loads. With no IP rating listed, it should be considered for protected indoor enclosures rather than exposed use.
Is the RPS-200-12-C suitable for 12V monitoring, HMI, or embedded equipment?
It can support 12V embedded electronics, HMI hardware, or monitoring systems that stay within the 11.7A output limit. The 80-264VAC input range is also useful when the AC source may vary by region or facility.
Can this model be used for compact 12V medical or diagnostic electronics?
Yes, the product is listed as a medical power supply with medical safety approval. Its dimensions are 103.4 x 62.0 x 40.0 mm, which may help in compact medical equipment layouts.
Would the RPS-200-12-C work for a 12V lab instrument or inspection station?
Yes, it is appropriate for 12V lab or inspection equipment that needs constant-voltage output up to 11.7A. The listed feature of extreme low leakage current can also matter in sensitive electronic equipment.
Is the RPS-200-12-C meant for outdoor use?
The operating temperature range is -30°C to +70°C, so the temperature specification supports demanding indoor equipment environments. No IP rating is provided, so it should not be treated as an outdoor or weather-exposed power supply.
What is the practical difference between the RPS-200-12 and RPS-200-12-C?
The two models share the same electrical ratings: 140.4W, 12V, 11.7A, with 80-264VAC input and the same operating temperature range of -30°C to +70°C. The listed difference here is the physical package, with the RPS-200-12 at 101.6 x 50.8 x 29.0 mm and 0.19 kg, and the RPS-200-12-C at 103.4 x 62.0 x 40.0 mm and 0.3 kg.
