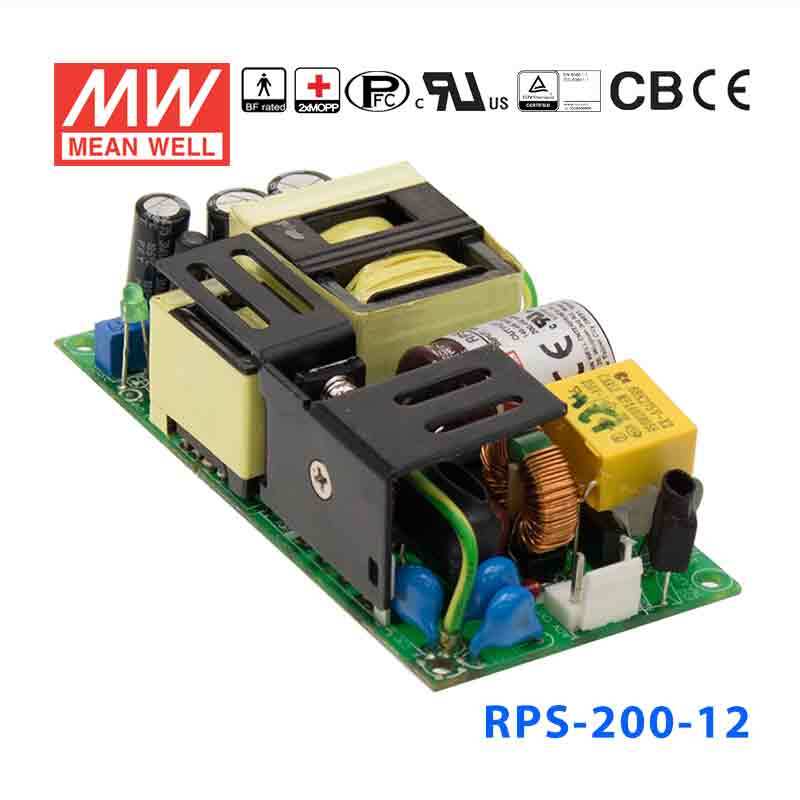

Mean Well RPS-200-12 Green Power Supply W 12V 11.7A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-12 Green Power Supply W 12V 11.7A - Medical Power...
The RPS-200 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating140.4 Watt
-
Output Voltage12 Volt
-
Rated Current11.7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-12 for a 12V industrial automation or control panel?
Yes, this constant-voltage model delivers 12V at up to 11.7A, with 140.4W available for 12V automation loads. It is suitable for protected control-panel use where a higher-current 12V rail is needed.
Is the RPS-200-12 a good fit for 12V embedded systems or industrial PCs?
It can be a fit for 12V embedded computing, industrial PC, or controller platforms that stay within the 11.7A output limit. The 80-264VAC input range also makes it easier to use across varied AC input conditions.
Can this power supply run 12V instrumentation, sensors, or test equipment?
Yes, the regulated 12V output and 140.4W rating suit 12V instrumentation and test systems that need a stable DC source. The compact 101.6 x 50.8 x 29.0 mm footprint is also useful when enclosure space is tight.
Is the RPS-200-12 suitable for medical electronic equipment?
Yes, it is specified as a medical power supply and includes medical safety approval. The listed certifications are CB, CE, cUL, EAC, and c_shide, and the features note extreme low leakage current.
Can the RPS-200-12 be used in cold or hot indoor equipment environments?
The specified operating temperature range is -30°C to +70°C, which covers a broad indoor operating window. Since no IP rating is listed, it should be used in protected indoor equipment rather than exposed outdoor locations.
How does the RPS-200-12 compare with other RPS-200 output versions?
In the RPS-200 group, the 12V versions are 140.4W at 11.7A, the 15V versions are 141W at 9.4A, the 24V versions are 141.6W at 5.9A, the 27V versions are 143.1W at 5.3A, and the 48V versions are 144W at 3A. The `-C` versions shown here keep the same electrical ratings as their non-`-C` counterparts.
