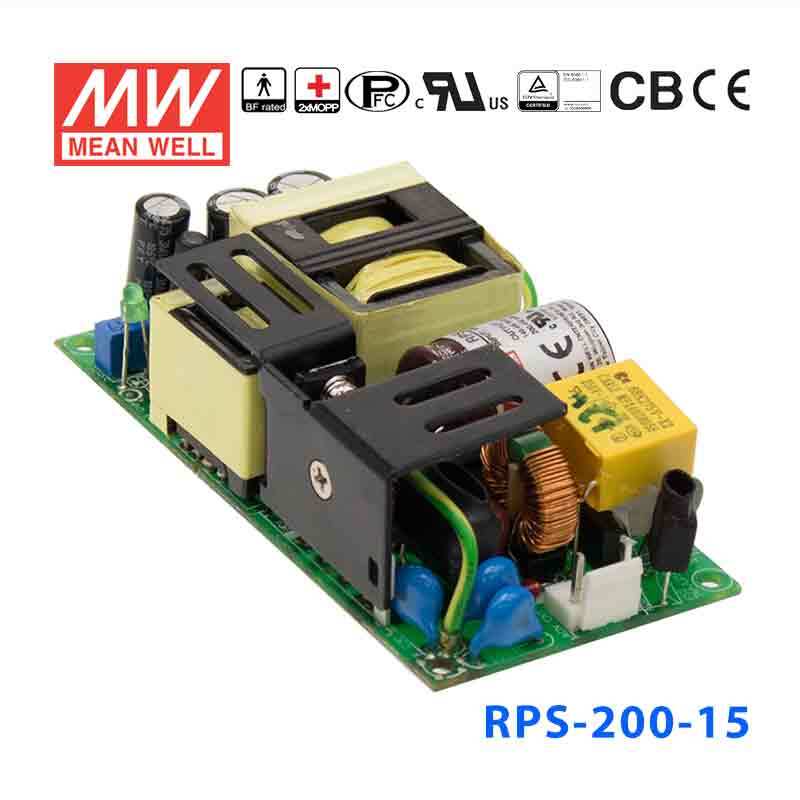

Mean Well RPS-200-15 Green Power Supply W 15V 9.4A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-15 Green Power Supply W 15V 9.4A - Medical Power ...
The RPS-200 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating141 Watt
-
Output Voltage15 Volt
-
Rated Current9.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-15 for a 15V industrial control or instrumentation system?
Yes, this model provides constant-voltage 15V output up to 9.4A, with 141W available for 15V industrial electronics. It is a good fit for protected instrumentation or control assemblies that require a dedicated 15V rail.
Is the RPS-200-15 suitable for 15V analog or embedded electronics?
It can be used for 15V embedded, analog, or measurement electronics that operate within the 9.4A output limit. The wide 80-264VAC input range also supports deployment across varied AC mains conditions.
Can this power supply support 15V medical or laboratory equipment?
Yes, it is identified as a medical power supply and includes medical safety approval. The feature list also calls out extreme low leakage current, which can be relevant for medical and lab equipment designs.
Would the RPS-200-15 work in a compact 15V control enclosure?
Yes, the unit combines 141W output with a compact 101.6 x 50.8 x 29.0 mm size and a weight of 0.19 kg. That can make it easier to integrate into compact enclosed systems that need 15V DC power.
Can the RPS-200-15 operate in demanding indoor temperatures?
Its specified operating temperature range is -30°C to +70°C, which supports a broad indoor temperature window. Because no IP rating is listed, it should still be installed in protected indoor equipment rather than exposed outdoor environments.
How does the RPS-200-15 compare with the other RPS-200 voltage options?
Within the RPS-200 family, the 12V versions are 140.4W at 11.7A, this 15V version is 141W at 9.4A, the 24V versions are 141.6W at 5.9A, the 27V versions are 143.1W at 5.3A, and the 48V versions are 144W at 3A. The `-C` variants listed for the family keep the same electrical ratings as the matching standard versions.
