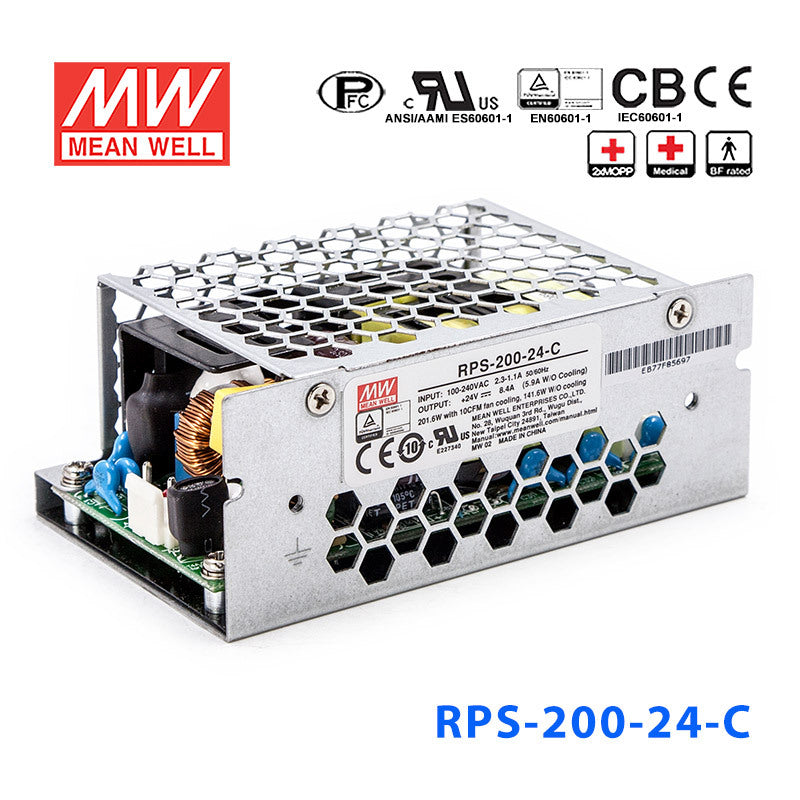

Mean Well RPS-200-24-C Green Power Supply W 24V 5.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-24-C Green Power Supply W 24V 5.9A - Medical Powe...
The RPS-200-24 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating141.6 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.57 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can the RPS-200-24-C power a 24V automation cabinet or control subsystem?
Yes, if the subsystem needs constant 24V DC and the load remains within 5.9A and 141.6W. That makes it suitable for 24V automation and control assemblies designed around a regulated 24V bus. The 80-264VAC input range also works well where incoming AC supply may vary by region or facility.
Is this a good choice for 24V embedded or industrial computing equipment?
It can be when the equipment is specified for 24V constant voltage and draws no more than 5.9A or 141.6W. The compact 103.4 x 62.0 x 40.0 mm form factor can also matter in tightly packed embedded or industrial designs. Voltage match is the first requirement, so it should be used only on 24V equipment.
Can I use the RPS-200-24-C in a medical electronics application?
This model is identified as a medical power supply and includes medical safety approval plus extreme low leakage current in the listed features. For medical electronics that need constant 24V DC, it can deliver up to 5.9A and 141.6W. The actual equipment still needs to be checked against the 24V, 5.9A, and 141.6W limits.
Will the RPS-200-24-C handle cold or hot indoor environments?
Its operating temperature range is -30C to +70C, so it is suited to a wide indoor temperature span. No IP rating is provided, which means the specs do not establish outdoor or washdown suitability. From the listed data, temperature range is broad, but the enclosure protection is not defined for exposed environments.
What is the difference between the RPS-200-24-C and other RPS 24V siblings?
Across the sibling list, 24V models include RPS-30-24 at 30W and 1.25A, RPS-45-24 at 45.6W and 1.9A, RPS-60-24 at 60W and 2.5A, RPS-65-24 at 65W and 2.71A, RPS-75-24 at 76.8W and 3.2A, RPS-120-24 and RPS-120-24-C at 84W and 5A, RPS-120S-24 at 120W and 5A, RPS-160-24 at 113.4W and 4.6A, RPS-200-24 and RPS-200-24-C at 141.6W and 5.9A, RPS-300-24 variants at 200W and 8.33A, RPS-400-24 variants at 252W and 10.5A, and RPS-500-24 variants from 309.6W to 499.2W with 12.9A to 20.8A. The RPS-200-24-C shares the same 24V, 5.9A, and 141.6W electrical rating as the non-C RPS-200-24.
