Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

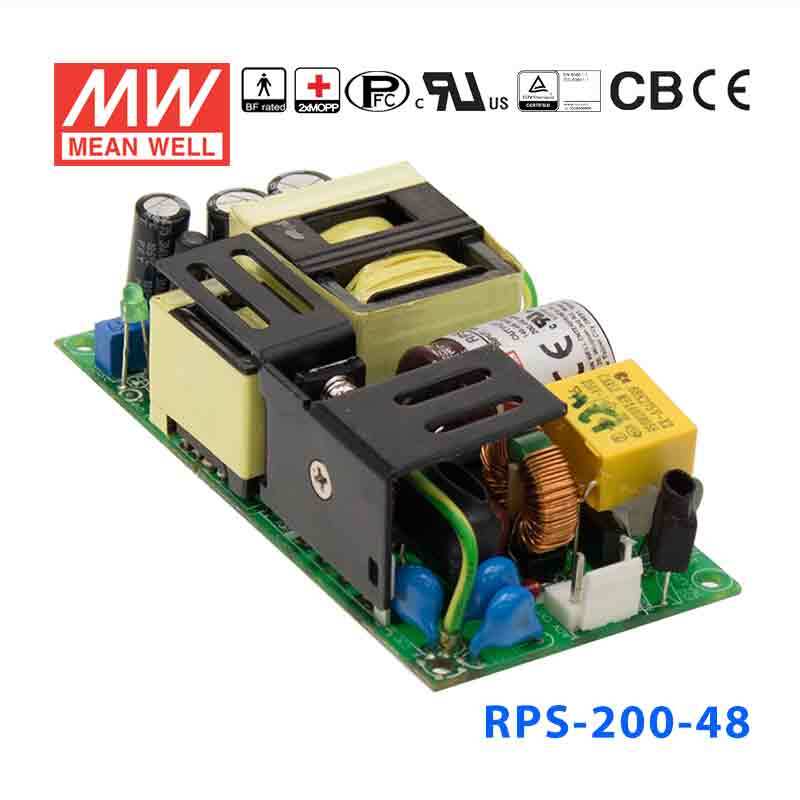

Mean Well RPS-200-48 Green Power Supply W 48V 3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-48 Green Power Supply W 48V 3A - Medical Power Su...
The RPS-200 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating144 Watt
-
Output Voltage48 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-48 for a 48V industrial control or automation system?
Yes, it is a constant-voltage 48V supply rated for 3A and 144W, which fits automation equipment that requires a regulated 48V DC source within that load range. Its 80-264VAC input also supports use in facilities with a wide AC input range.
Is the RPS-200-48 suitable for 48V telecom or network equipment?
It can be a fit for 48V equipment that runs on constant voltage and stays within 3A and 144W. Buyers should match the equipment's required DC voltage and total load to the unit's 48V, 3A output rating.
Can this power supply be used in medical or lab equipment?
Yes, this model is described as medical safety approved and features extreme low leakage current, which makes it relevant for medical or laboratory devices that require 48V DC. The output remains limited to 48V at 3A with a total power rating of 144W.
How does the RPS-200-48 compare with other RPS-200 models?
Within the RPS-200 range, the 12V models are 140.4W at 11.7A, the 15V models are 141W at 9.4A, the 24V models are 141.6W at 5.9A, the 27V models are 143.1W at 5.3A, and the 48V models are 144W at 3A. The RPS-200-48 and RPS-200-48-C share the same electrical rating, while the series changes output voltage and current across the other variants.
Can the RPS-200-48 be used in outdoor or harsh-temperature locations?
The operating temperature range is -30°C to +70°C, so the temperature specification is broad for demanding equipment environments. However, no IP rating is listed in the provided specs, so it should be used where the final system enclosure provides the required environmental protection.
