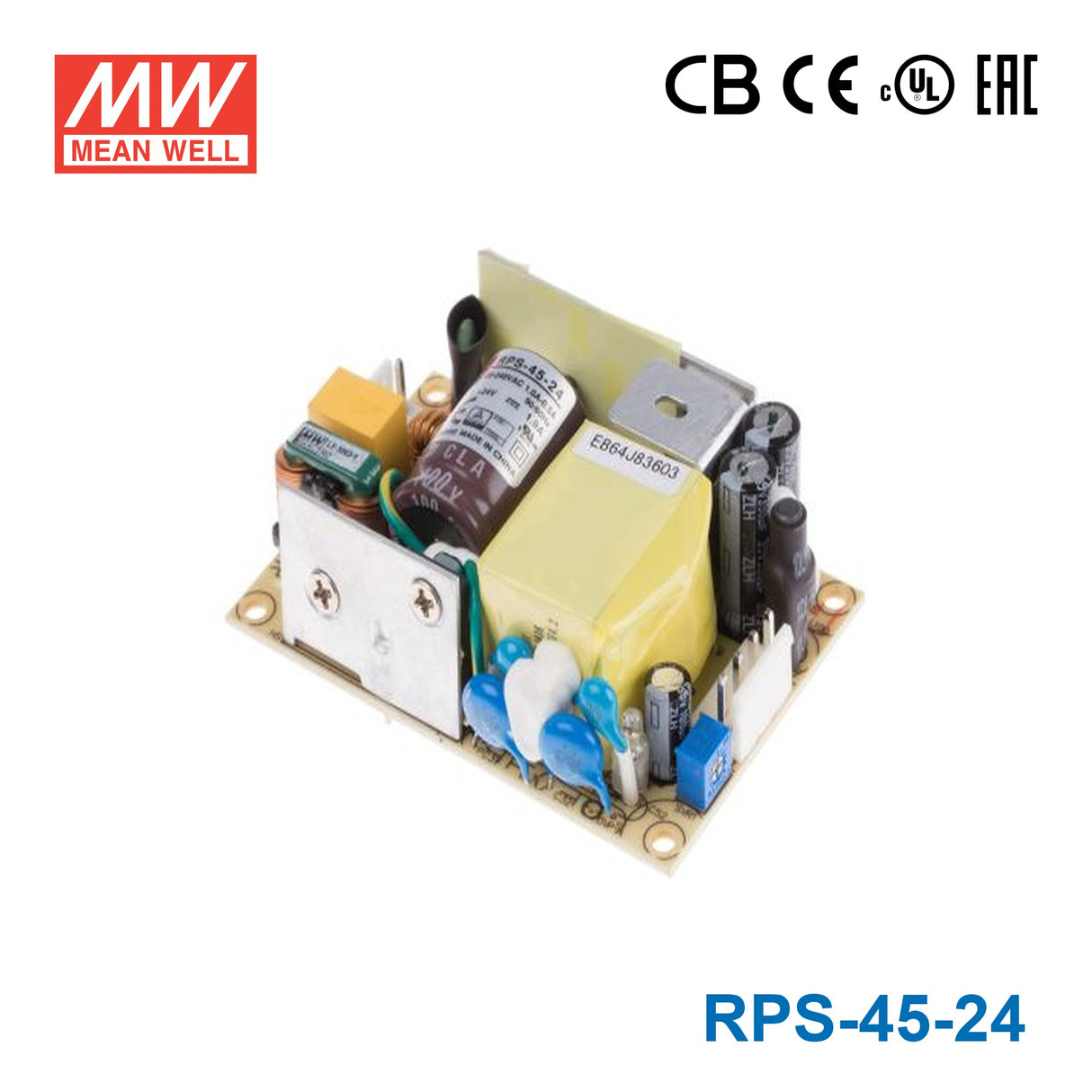

Mean Well RPS-45-24 Green Power Supply W 24V 1.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-45-24 Green Power Supply W 24V 1.9A - Medical Power S...
The RPS-45 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14- Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating45.6 Watt
-
Output Voltage24 Volt
-
Rated Current1.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-45-24 for a small 24V PLC, relay, or automation load?
Yes, it is a constant voltage 24V supply rated for 1.9A and 45.6W. It fits compact 24V automation electronics as long as the total demand stays within 1.9A and 45.6W.
Is the RPS-45-24 suitable for 24V industrial sensors or monitoring electronics?
It can be used for 24V industrial or monitoring electronics that need a steady constant voltage source. The available output is 24V at up to 1.9A, with a total power ceiling of 45.6W.
Can this model power a low-power 24V embedded or control subsystem?
Yes, for low-power 24V subsystems that do not exceed 1.9A or 45.6W. Its constant voltage output makes it suitable where the downstream equipment is designed for 24V input.
Is the RPS-45-24 appropriate for a medical or diagnostic device that requires 24V input?
Yes, this unit is listed as a medical power supply and includes medical safety approval with extremely low leakage current. The device still needs to operate from a constant 24V source and remain within 1.9A and 45.6W.
Can the RPS-45-24 be used outside or in unconditioned spaces?
The specified operating temperature is -30°C to +70°C, so it covers a broad temperature range. No IP rating is shown in the provided specs, so the data does not confirm outdoor or wet-location suitability.
How does the RPS-45-24 compare with the other RPS-45 versions?
The RPS-45 series includes 3.3V 8A 26.4W, 5V 8A 40W, 7.5V 5.4A 40.5W, 12V 3.8A 45.6W, 15V 3A 45W, 24V 1.9A 45.6W, and 48V 0.94A 45.1W models. The RPS-45-24 is the 24V option in that set, rated for 1.9A and 45.6W.
