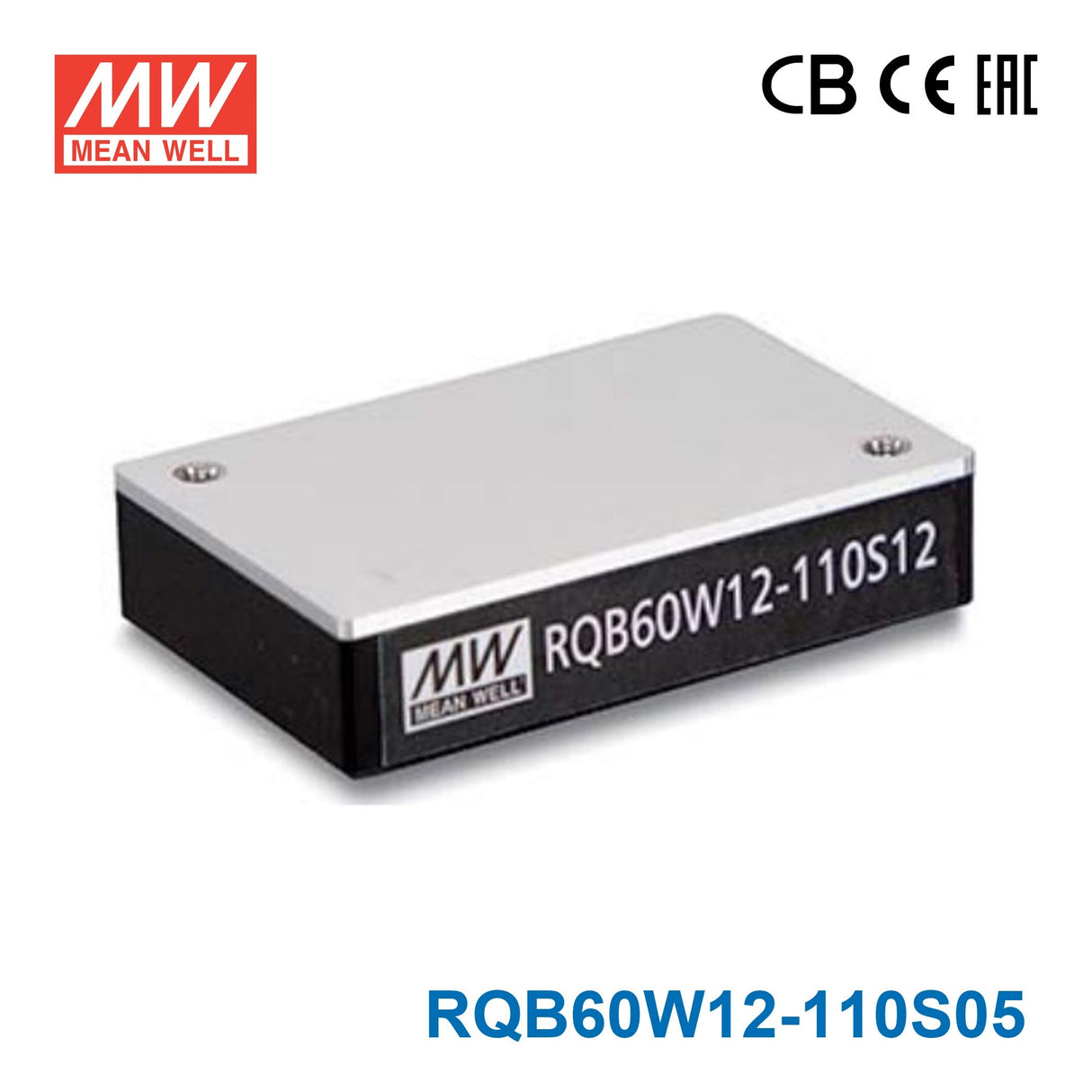

Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Railway DC-DC Converter, 60W, 5V output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RQB60W12-110S05 1/4 Brick, 14-160VDC Ultra Wide Input Rai...
The RQB60W12 is a 60W Mean Well power converter (input range: 14~160Vdc).
Key Features
- ✓ Input voltage range: 14~160Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1, UL62368-1, EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRQB60W12 Series
-
Power Rating60 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage14V~160V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.28 in
-
Width1.45 in
-
Height0.5 in
-
Weight0.15 lb
::specification::
Frequently Asked Questions
What is the main use case for the Mean Well RQB60W12-110S05?
This model is a 60W railway DC-DC converter designed for applications that need a regulated 5V DC output from a very wide DC input range. It is suited to railway and other mobile or industrial systems where the input supply can vary significantly but the load still needs stable low-voltage power.
What input range does the RQB60W12-110S05 support?
The RQB60W12-110S05 supports an ultra-wide 14 to 160VDC input range, which is a 12:1 range. That makes it useful for systems where the available DC bus voltage may vary widely across operating conditions or platforms.
What output does this DC-DC converter provide?
This model provides a single 5V DC output rated at up to 10A, with a total power rating of 60W. It also supports output trimming of plus or minus 10%, which can help when a tightly controlled output level is required within the model's adjustment range.
Is the RQB60W12-110S05 suitable for harsh temperature environments?
Yes. The specified operating temperature range is -40°C to +90°C, which is broader than many general-purpose DC-DC converters. That makes it a fit for demanding environments where temperature extremes are a design concern.
Does this model meet railway-related standards?
Yes. The product description states compliance with EN50155 and that the design meets EN45545-2, both of which are relevant to railway applications. That makes this model more appropriate for railway-focused projects than a standard industrial converter without those references.
What protection and reliability features are included in the RQB60W12-110S05?
This converter includes continuous short circuit protection, overload protection, over temperature protection, over voltage protection, and input under voltage protection. It is also fully encapsulated, requires no minimum load, provides 3KVDC or 2KVAC input-to-output isolation, and carries a 3-year warranty.
