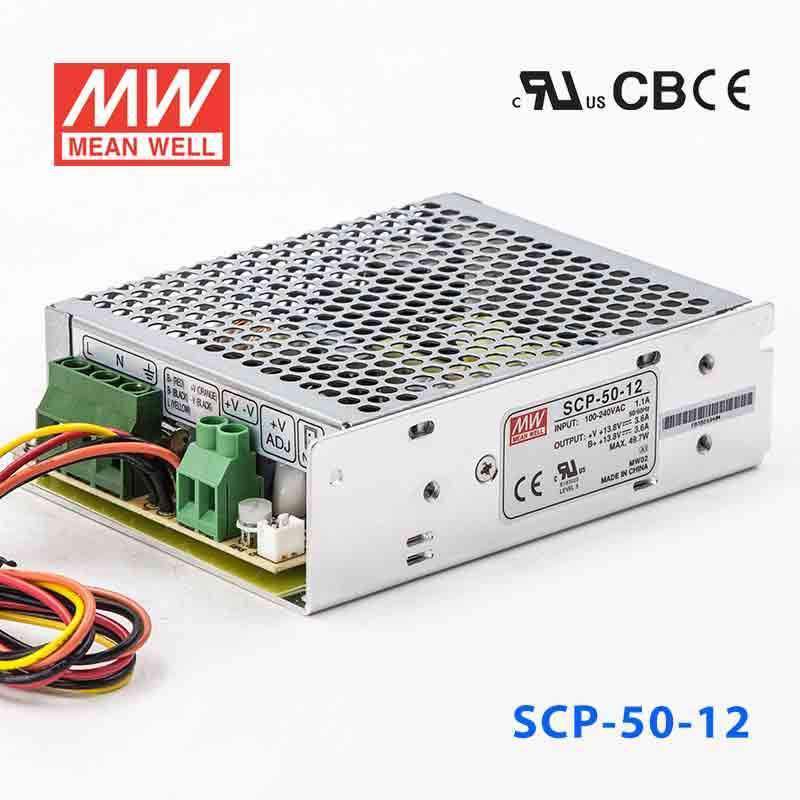

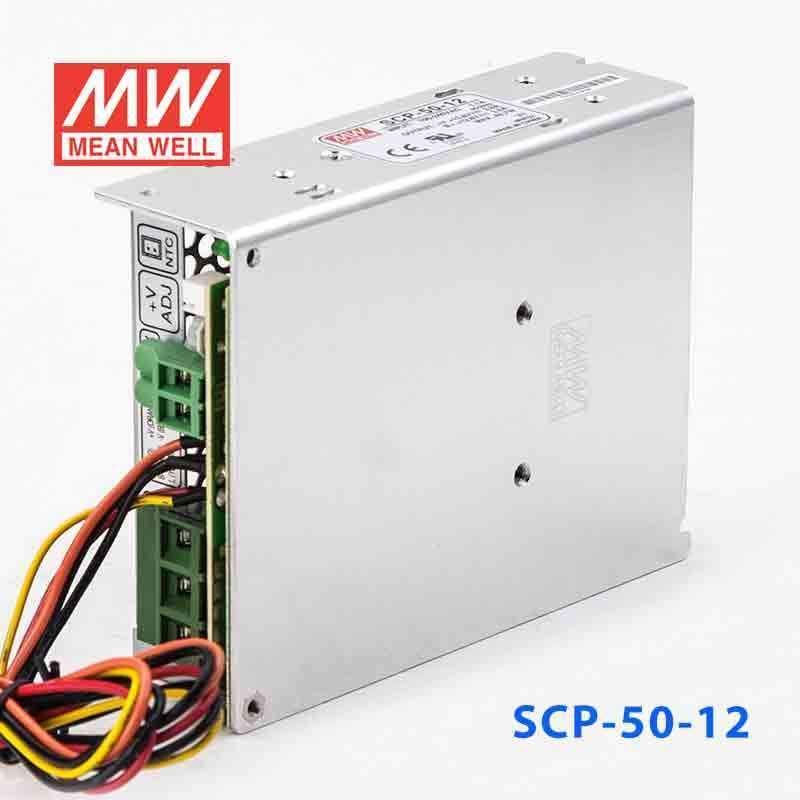

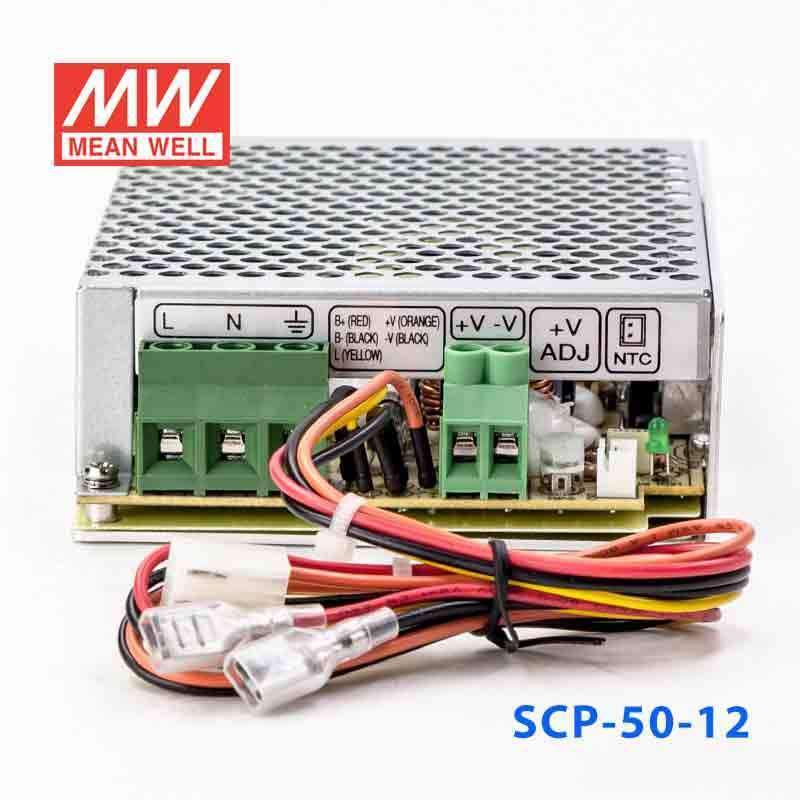

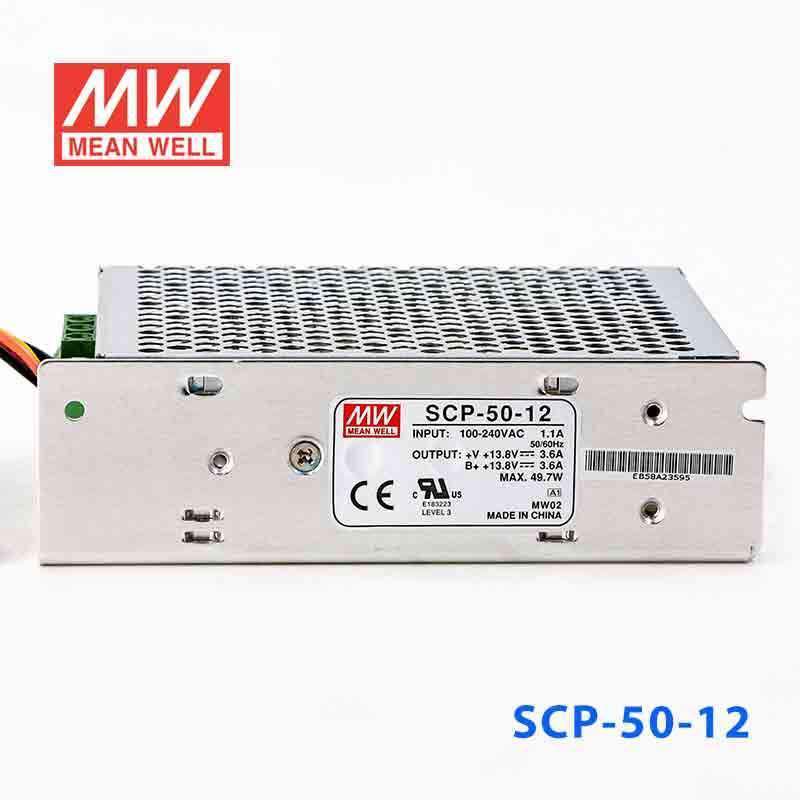

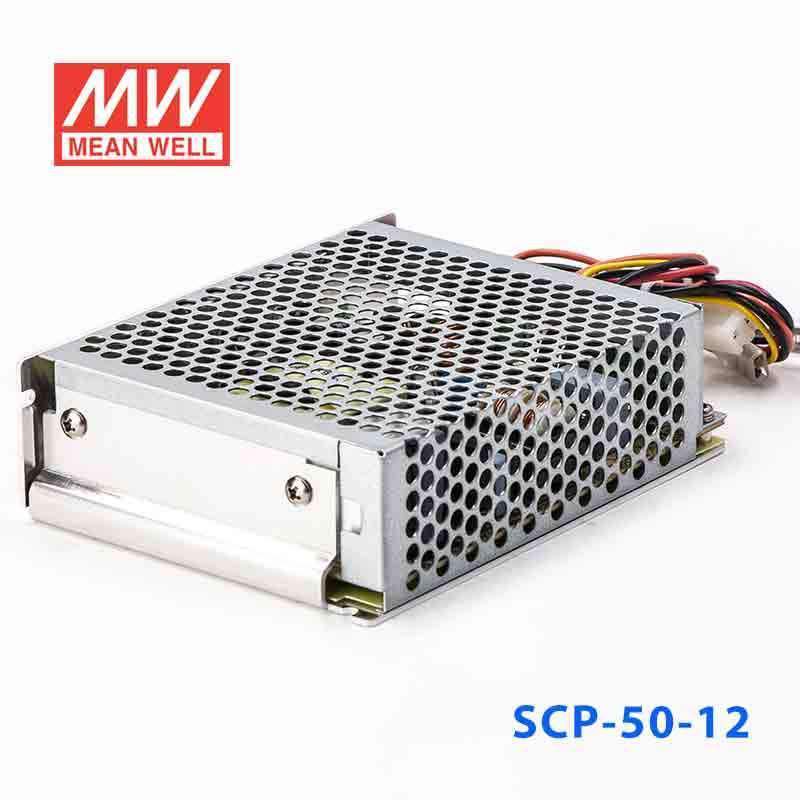

Mean Well SCP-50-12 Power supply 49.7W 13.8V 3.6A
The SCP-50 is a 50W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCP Series
-
Power Rating49.7 Watt
-
Output Voltage13.8 Volt
-
Rated Current3.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
Can I use the SCP-50-12 for a mid-size 13.8V automation or control load?
Yes, if the equipment requires constant 13.8V DC and stays within 3.6A and 49.7W. That gives it more headroom than the 35.9W version for moderately larger control or embedded loads.
Is the SCP-50-12 suitable for communications or network-support hardware that runs on 13.8V DC?
It can be, provided the connected hardware is designed for 13.8V DC and the total load does not exceed 3.6A. The 85-264VAC input is also useful where the same equipment may be deployed across different AC mains environments.
Would this power supply fit a 13.8V panel with several low-power devices instead of one small load?
Potentially yes, because the available output is 13.8V at up to 3.6A with a 49.7W rating. It suits grouped low-power electronics better than a 2.6A unit, as long as the combined load remains inside the published limits.
Is the SCP-50-12 intended for indoor or outdoor environments?
Its operating temperature is -20°C to +60°C, so it can fit many indoor industrial or utility enclosures with that temperature profile. The provided specs do not include an IP rating, so outdoor weather exposure is not confirmed here.
How does the SCP-50-12 differ from the other SCP family members?
This model provides 49.7W at 13.8V and 3.6A. The other listed versions are SCP-35-12 at 35.9W, 13.8V, 2.6A; SCP-35-24 at 38.6W, 27.6V, 1.4A; SCP-50-24 at 49.7W, 27.6V, 1.8A; SCP-75-12 at 74.5W, 13.8V, 5.4A; and SCP-75-24 at 74.5W, 27.6V, 2.7A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SCP-50 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SCP-50-24 Power supply 49.7W 27.6V 1.8A | 49.7W | 27.6V | 1.8A | Indoor | $24.15 | View |
