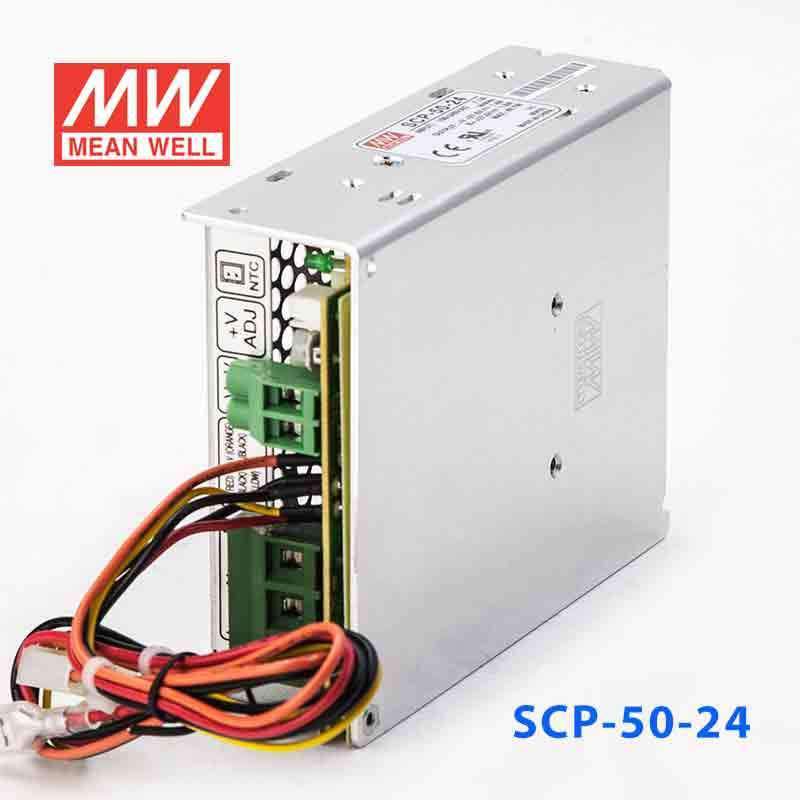

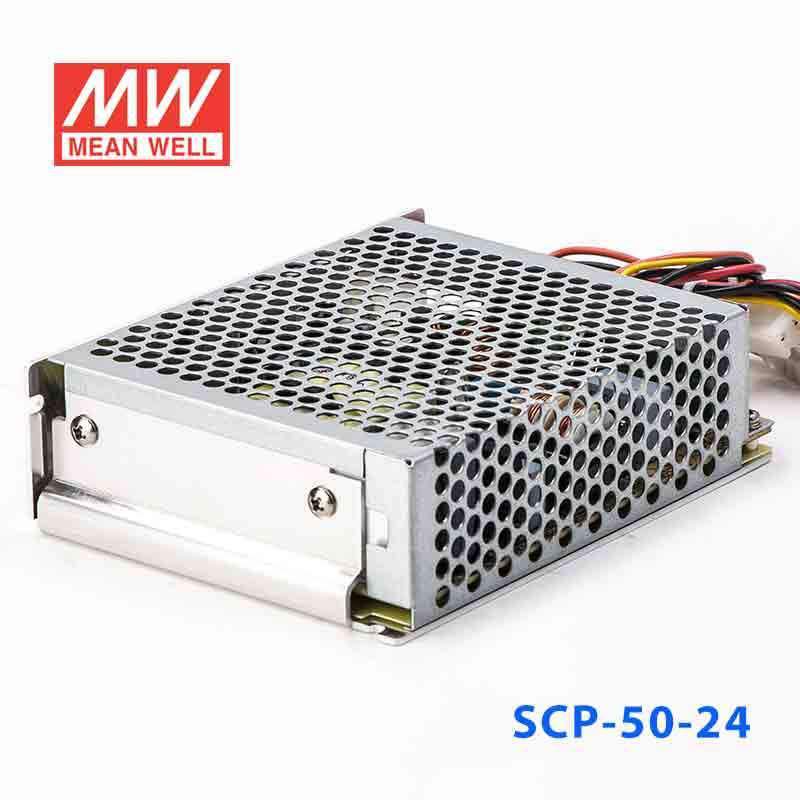

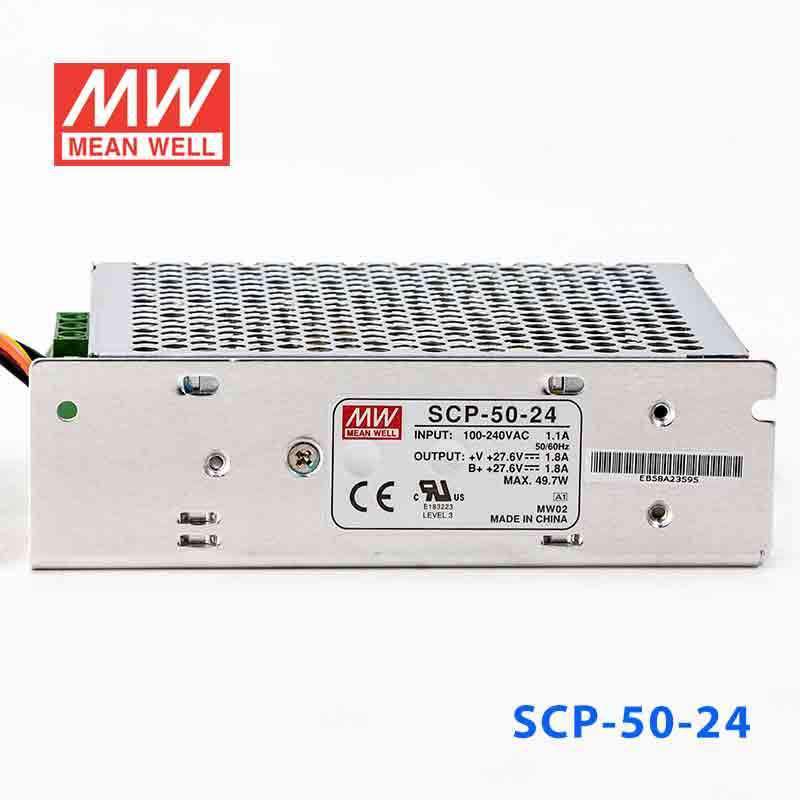

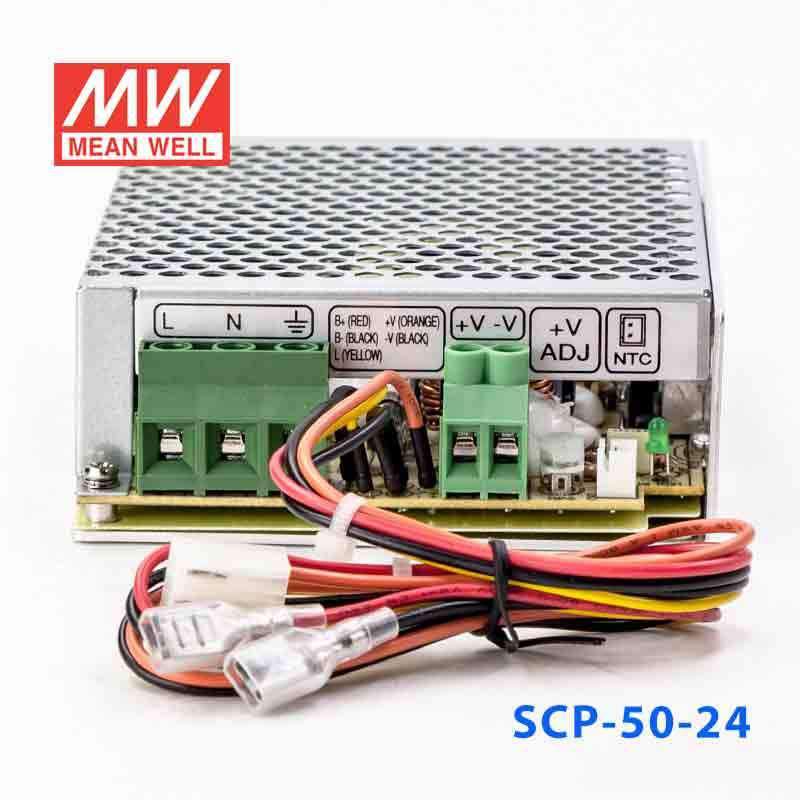

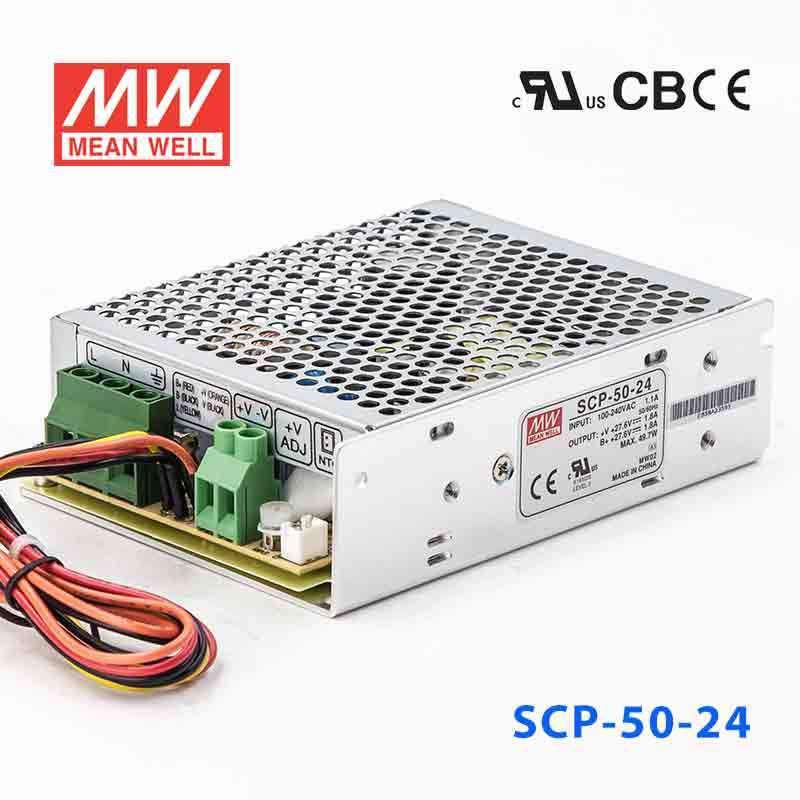

Mean Well SCP-50-24 Power supply 49.7W 27.6V 1.8A
The SCP-50 is a 50W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCP Series
-
Power Rating49.7 Watt
-
Output Voltage27.6 Volt
-
Rated Current1.8 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
Can I use the SCP-50-24 for a 24V nominal automation system that needs a 27.6V supply?
Yes, when the system is specified for 27.6V constant voltage and the load remains at or below 1.8A and 49.7W. It offers more output current than the 38.6W 27.6V model for somewhat larger DC loads.
Is the SCP-50-24 a good fit for monitored 27.6V DC control equipment?
It can be appropriate for monitored DC systems because it provides a 27.6V constant-voltage output and includes an output voltage detection signal. The built-in temperature compensation function may also be relevant in systems where DC output behavior is watched across ambient changes.
Would this model work for multiple low-current 24V nominal devices on one DC supply?
It can, if those devices are intended to run from 27.6V DC and the combined demand does not exceed 1.8A or 49.7W. That makes it more suitable for grouped light loads than the 1.4A version in the same voltage class.
Can the SCP-50-24 be used where temperatures drop below freezing?
Yes, the published operating range is -20°C to +60°C, so sub-freezing indoor or protected enclosure conditions can fall within spec. Since no IP rating is listed, the data provided does not establish suitability for exposed outdoor installation.
What separates the SCP-50-24 from the other SCP options?
The SCP-50-24 is the 27.6V, 1.8A, 49.7W version in this group. Other siblings are SCP-35-12 at 35.9W, 13.8V, 2.6A; SCP-35-24 at 38.6W, 27.6V, 1.4A; SCP-50-12 at 49.7W, 13.8V, 3.6A; SCP-75-12 at 74.5W, 13.8V, 5.4A; and SCP-75-24 at 74.5W, 27.6V, 2.7A.
