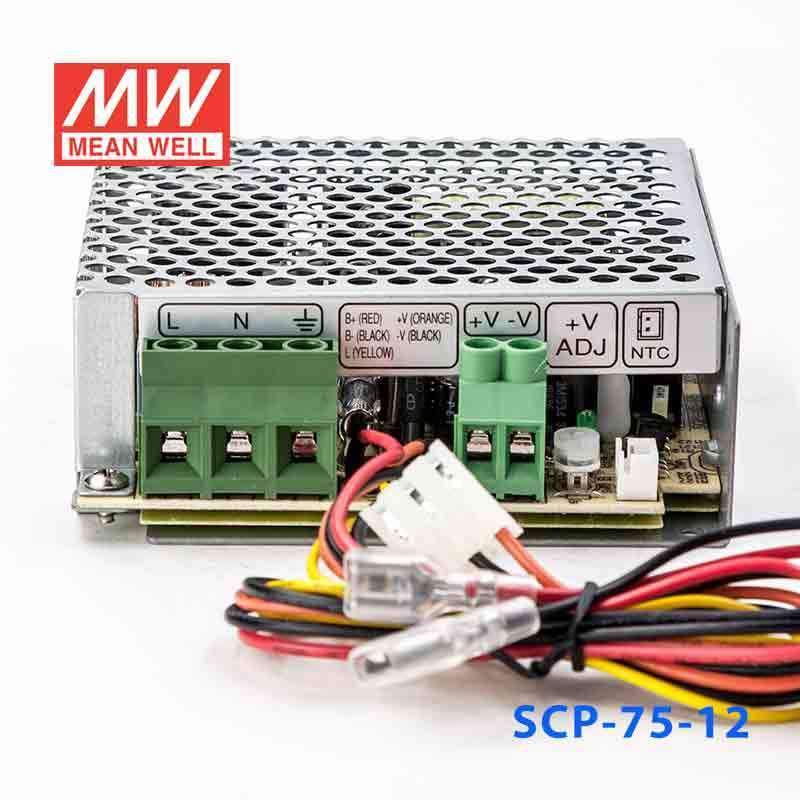

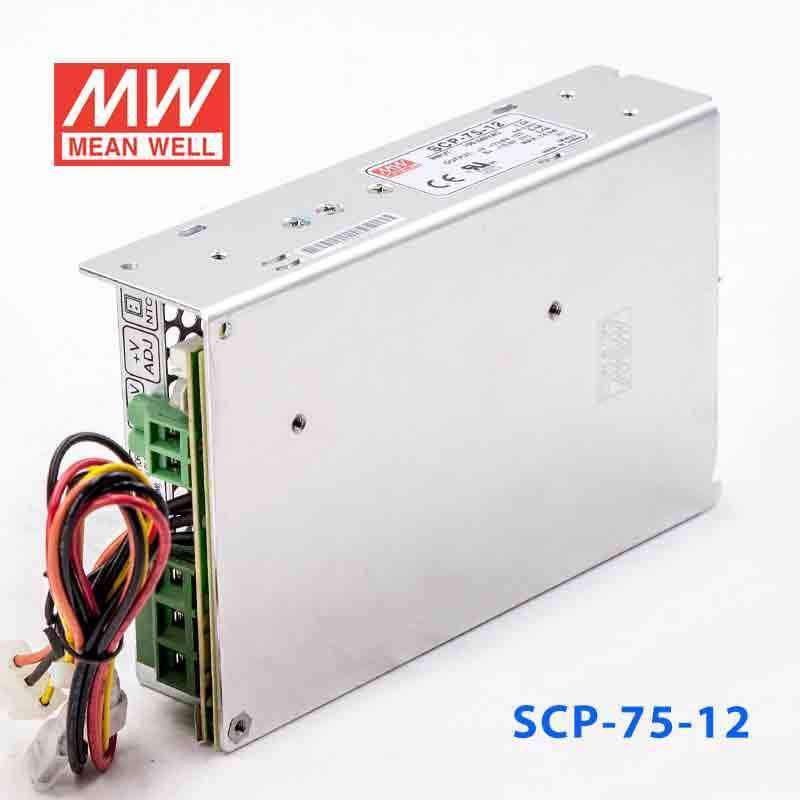

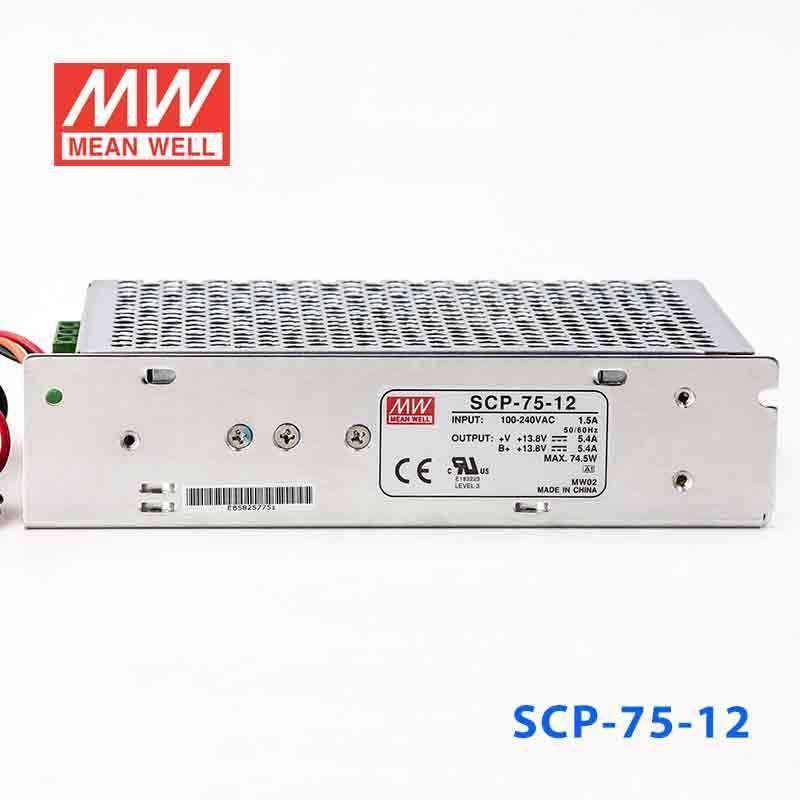

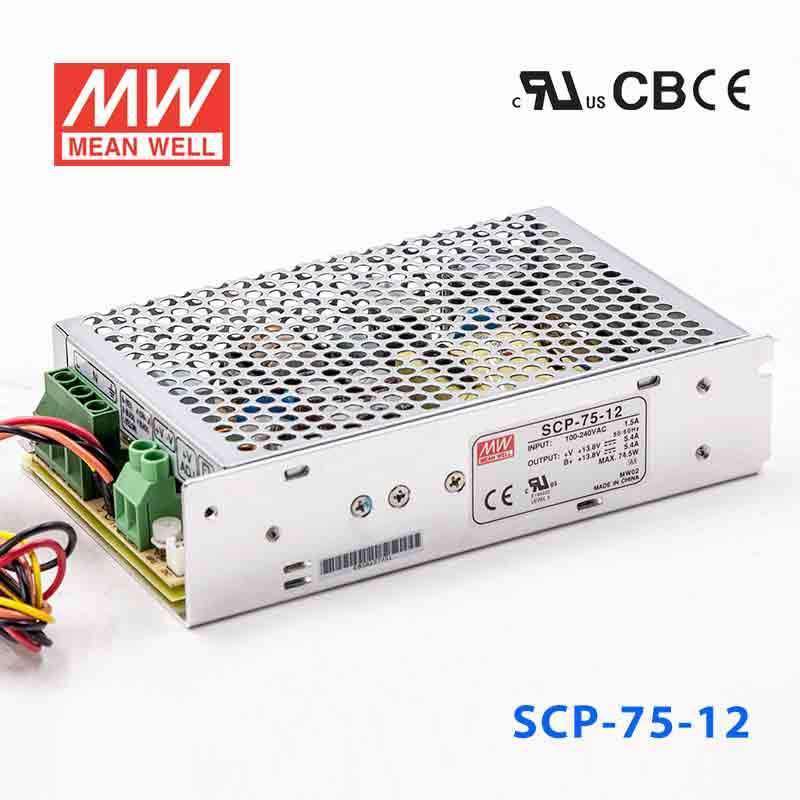

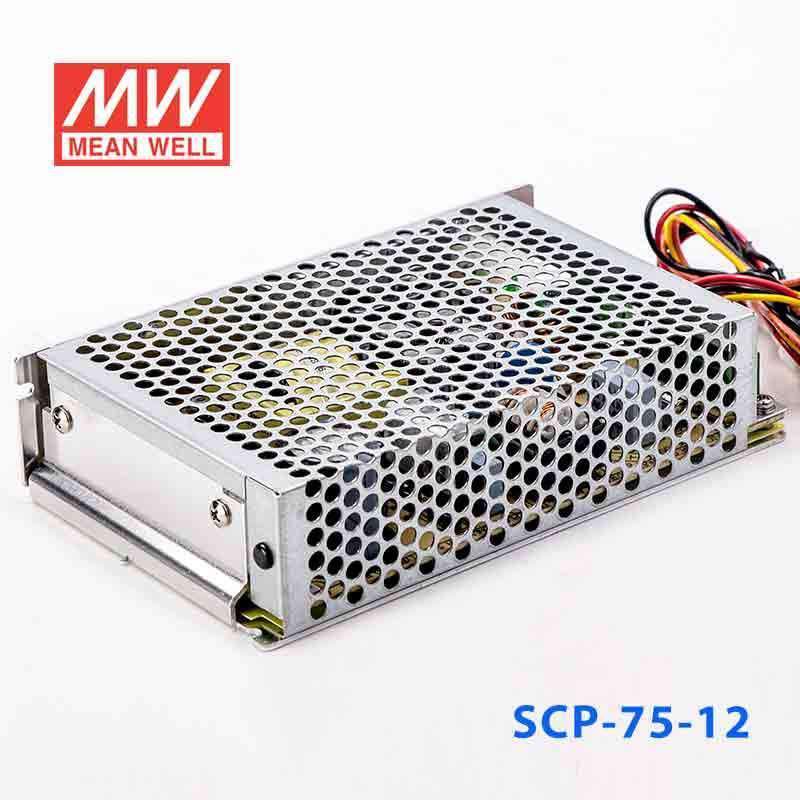

Mean Well SCP-75-12 Power supply 74.5W 13.8V 5.4A
The SCP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -20~+60℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -20~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.05% /℃ (0 ~ 45℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCP Series
-
Power Rating74.5 Watt
-
Output Voltage13.8 Volt
-
Rated Current5.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the SCP-75-12 for a heavier 13.8V DC control or automation load?
Yes, this is the highest-current 13.8V model in the listed group at 5.4A and 74.5W. It is suited to larger 13.8V control assemblies, communications gear, or embedded systems that exceed the range of the 2.6A and 3.6A versions.
Is the SCP-75-12 suitable for powering several 13.8V devices from one supply in an equipment cabinet?
It can be, as long as the total DC demand stays within 5.4A and 74.5W at 13.8V. That gives more capacity for multi-device cabinets than lower-power siblings in the same voltage class.
Would this model make sense for 13.8V systems that need output monitoring features?
It may, because alongside its 13.8V constant-voltage output it includes an output voltage detection signal. It also lists built-in temperature compensation, which can matter in monitored DC systems operating across a -20°C to +60°C range.
Can the SCP-75-12 be used in demanding ambient temperatures?
The specified operating temperature is -20°C to +60°C, which covers a broad range for indoor industrial and utility enclosures. No IP rating is given in the provided specs, so exposure to rain, dust ingress, or washdown conditions is not verified here.
How does the SCP-75-12 compare with the rest of the SCP series?
The SCP-75-12 outputs 13.8V at 5.4A for 74.5W. The other listed models are SCP-35-12 at 35.9W, 13.8V, 2.6A; SCP-35-24 at 38.6W, 27.6V, 1.4A; SCP-50-12 at 49.7W, 13.8V, 3.6A; SCP-50-24 at 49.7W, 27.6V, 1.8A; and SCP-75-24 at 74.5W, 27.6V, 2.7A.
