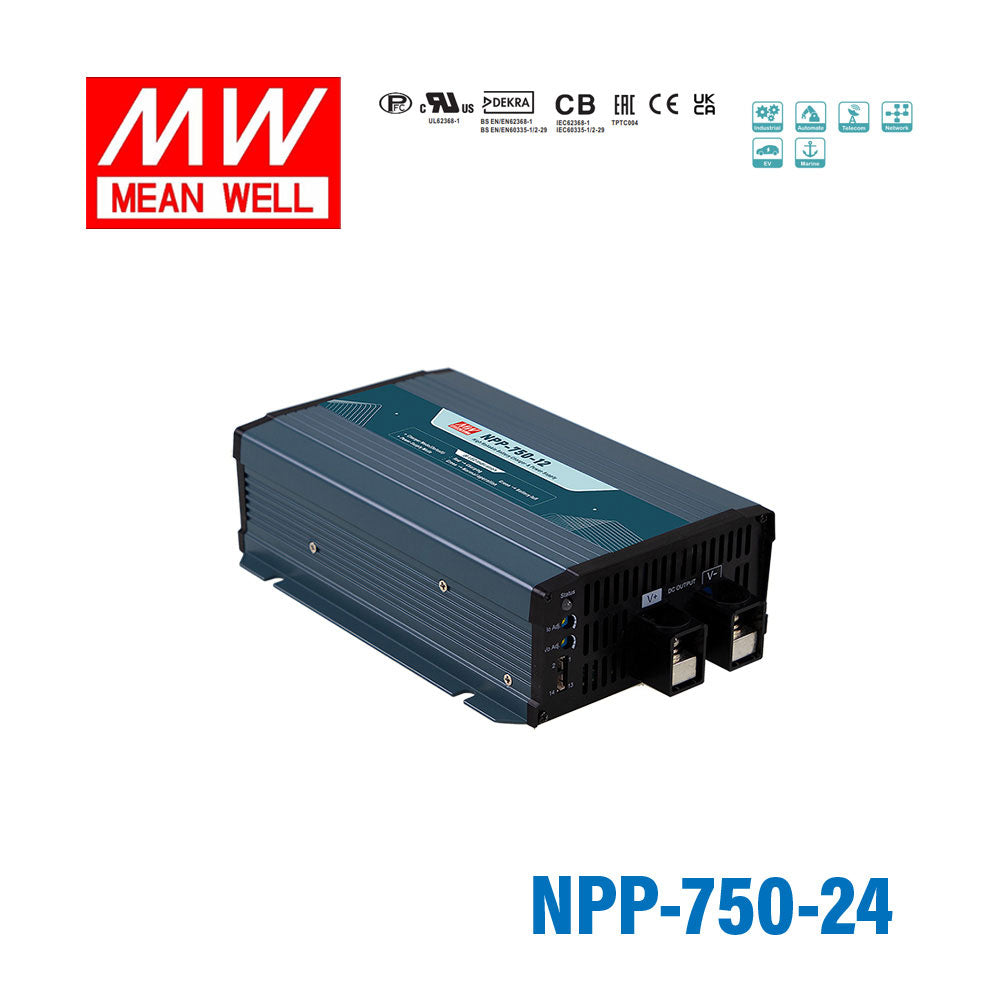

Mean Well NPP-750-24 756W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 22.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPP-750-24 756W 24V Battery Charge& Power Supply 2-in...
The NPP-750 is a 750W Mean Well battery charger (input: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 28.8V
- ✓ Rated output current: 22.5A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesNPP Series
-
Power Rating750 Watt
-
Output Voltage28.8 Volt
-
Rated Current22.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width6.22 in
-
Height2.64 in
-
Weight4.06 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPP-750-24 designed for?
The NPP-750-24 is a dual-purpose unit that can operate as a battery charger or as a DC power supply. It is aimed at applications such as electric scooters, mobile robots, floor scrubbers, industrial control systems, communication equipment, and security systems where a high-power 24V-class supply is needed.
Can the NPP-750-24 be used with lead-acid batteries?
Yes. This model is listed as suitable for lead-acid batteries and includes a 3-stage charging curve when used in charging mode. That makes it relevant for buyers looking for a charger/power-supply unit for supported lead-acid battery applications.
What are the main output specifications of the NPP-750-24?
This model is rated at 756W and has a nominal output voltage of 28.8V with rated current of 22.5A. It is part of Mean Well's high-power charger and power supply range for demanding DC applications.
Is the output adjustable on the NPP-750-24?
Yes. The product description states that both output voltage and output current are adjustable via potentiometer, and current can be adjusted from 50% to 100%. This gives buyers more flexibility when matching the unit to application requirements within the model's supported operating range.
What operating environments is the NPP-750-24 suitable for?
The NPP-750-24 is specified for a wide operating temperature range of -30°C to +70°C. It also includes a thermal-controlled cooling fan to help reduce noise while supporting operation in tougher industrial or equipment environments.
What protections and approvals does the NPP-750-24 include?
This model includes protection functions for short circuit, overload, overvoltage, and overtemperature. It also carries safety approvals including CB, UL, DEKRA, EAC, CE, and UKCA, with compliance noted for 62368-1 and 60335-1/-2-29 standards.
What makes the NPP-750-24 different from a standard fixed-function power supply?
The NPP-750-24 stands out because it combines battery charger and power supply functions in one unit rather than serving only one role. For B2B buyers, that can simplify product selection where the application may need charging capability as well as dependable DC output from the same model.
What warranty is provided with the NPP-750-24?
The NPP-750-24 comes with a 3-year warranty. That aligns with the product's positioning as a durable industrial-grade charger and power supply for commercial and equipment use.
