Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

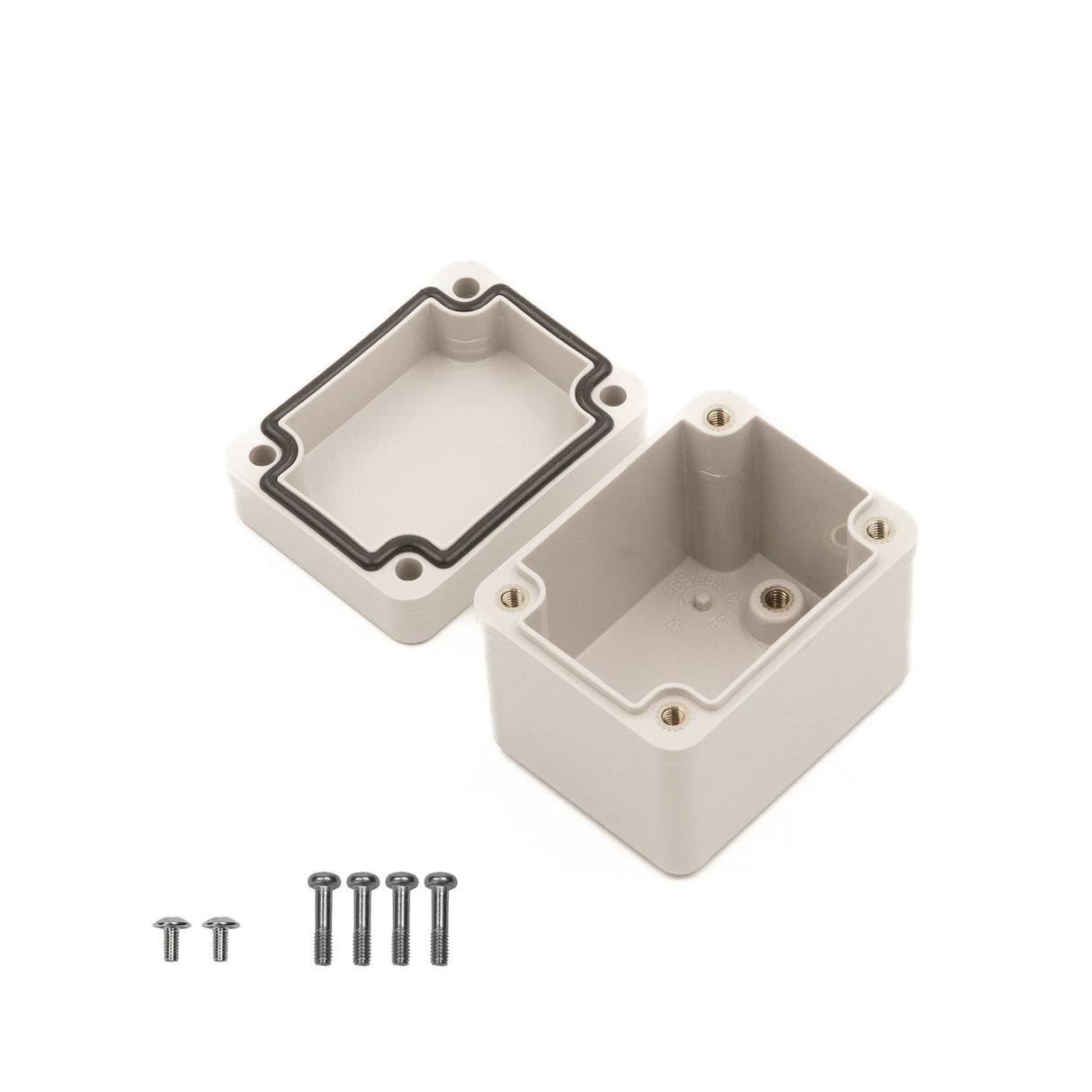

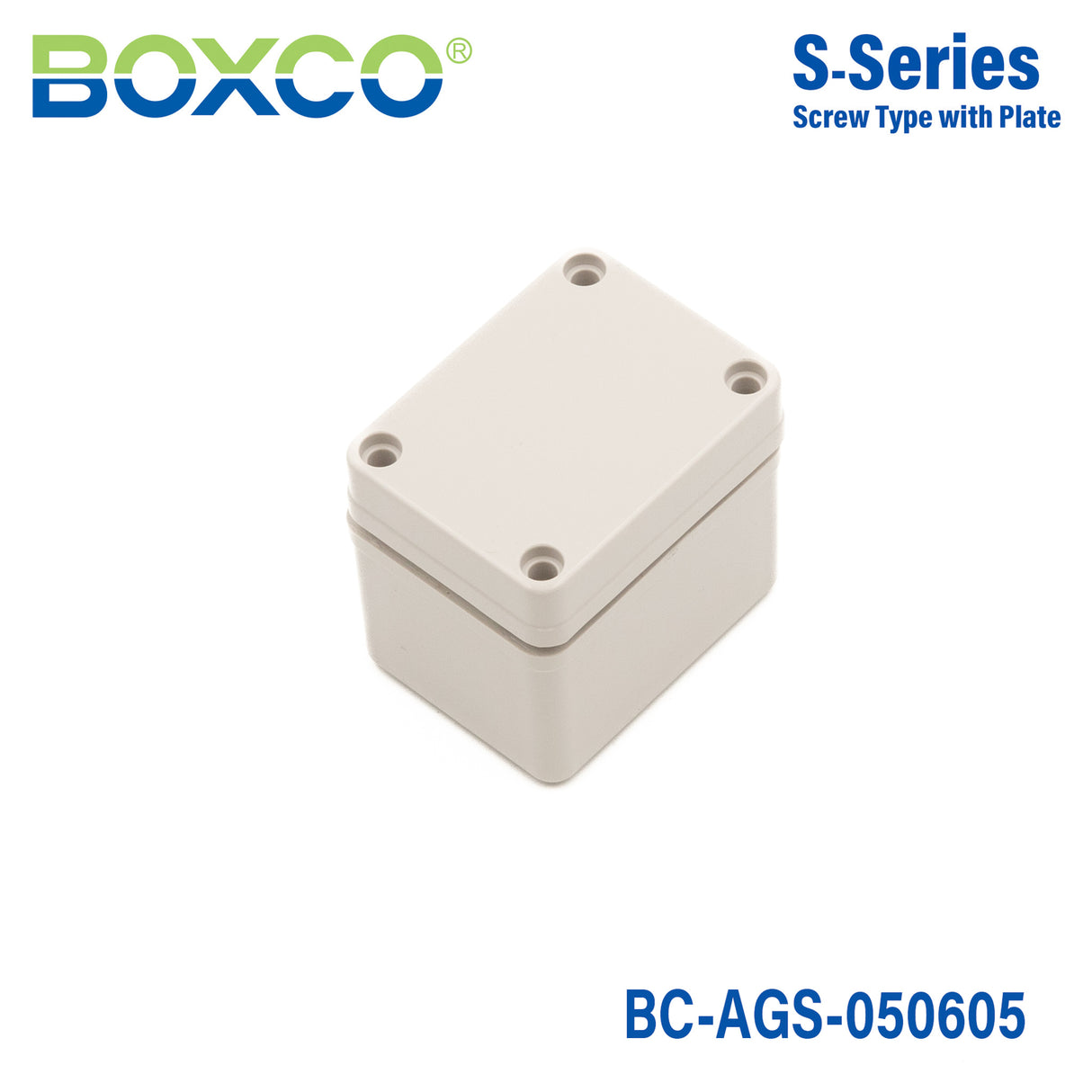

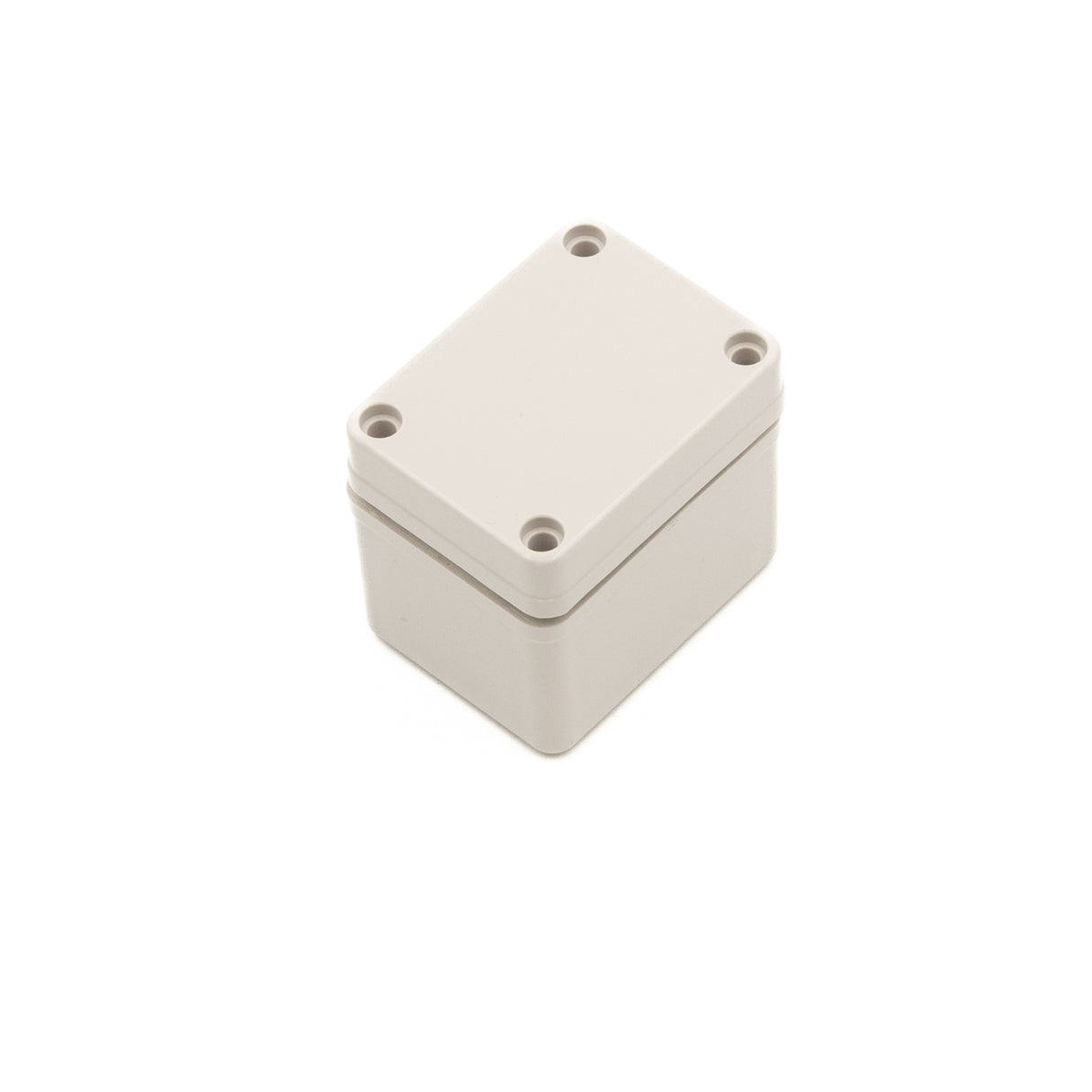

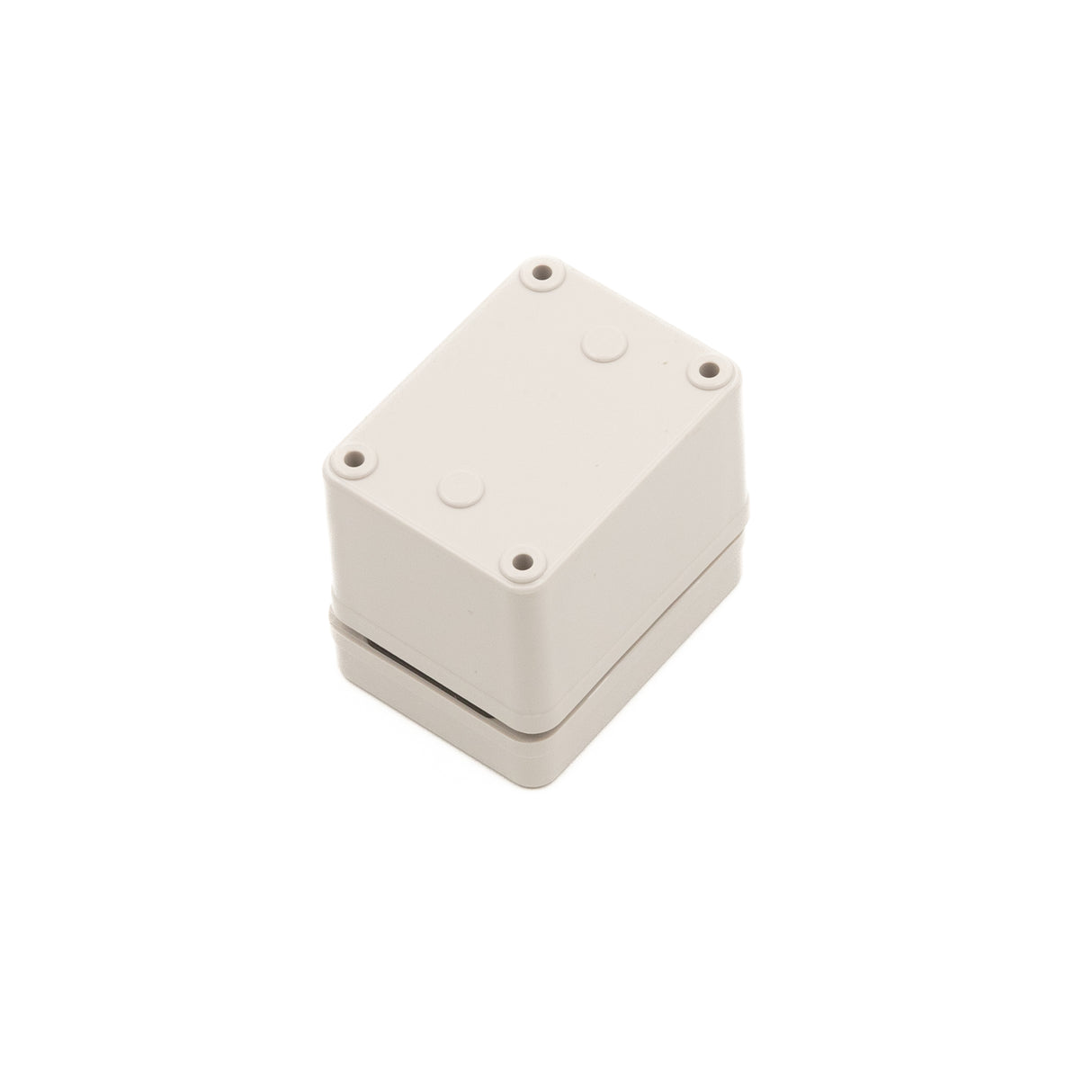

Boxco S-Series 1.97 x 2.56 x 2.17 Inches(50x65x55mm) Plastic Enclos...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length1.97 in
-
Width2.56 in
-
Height2.17 in
-
Weight0.17 lb
::specification::
Frequently Asked Questions
What is this Boxco S-Series enclosure typically used for?
This plastic enclosure is used to protect compact electronic components and control assemblies in industrial and commercial equipment. Its small 50 x 65 x 55 mm size makes it a fit for space-constrained applications where a sealed housing is needed.
What are the exact dimensions of this enclosure?
This model measures 1.97 x 2.56 x 2.17 inches, which corresponds to 50 x 65 x 55 mm. Buyers typically use these dimensions to confirm fit for internal components and available mounting space.
How well does this enclosure resist dust, water, and impact?
This enclosure is rated IP67 and IK08. That means it is built for strong dust and water protection and also offers solid mechanical impact resistance for demanding environments.
Is this enclosure suitable for outdoor or harsh-environment use?
Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It is also designed with a gasket for waterproof and dust-proof performance, and it operates in temperatures from -40 °C to 70 °C.
What material is this enclosure made from?
This model is made from ABS plastic and has a grey cover. The description also notes high impact resistance and anti-static material use to help protect sensitive electronic instruments from static electricity.
What internal mounting features does this enclosure include?
The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure mounting of internal hardware such as mounting plates or DIN rail-compatible equipment.
What distinguishes this screw-type enclosure from other enclosure styles?
This model uses a screw-type cover design, and the cover bolt attachment points are formed in injection molding for strength. Buyers who want a more secured cover style often choose screw-type enclosures for applications that need a tight, durable closure.
