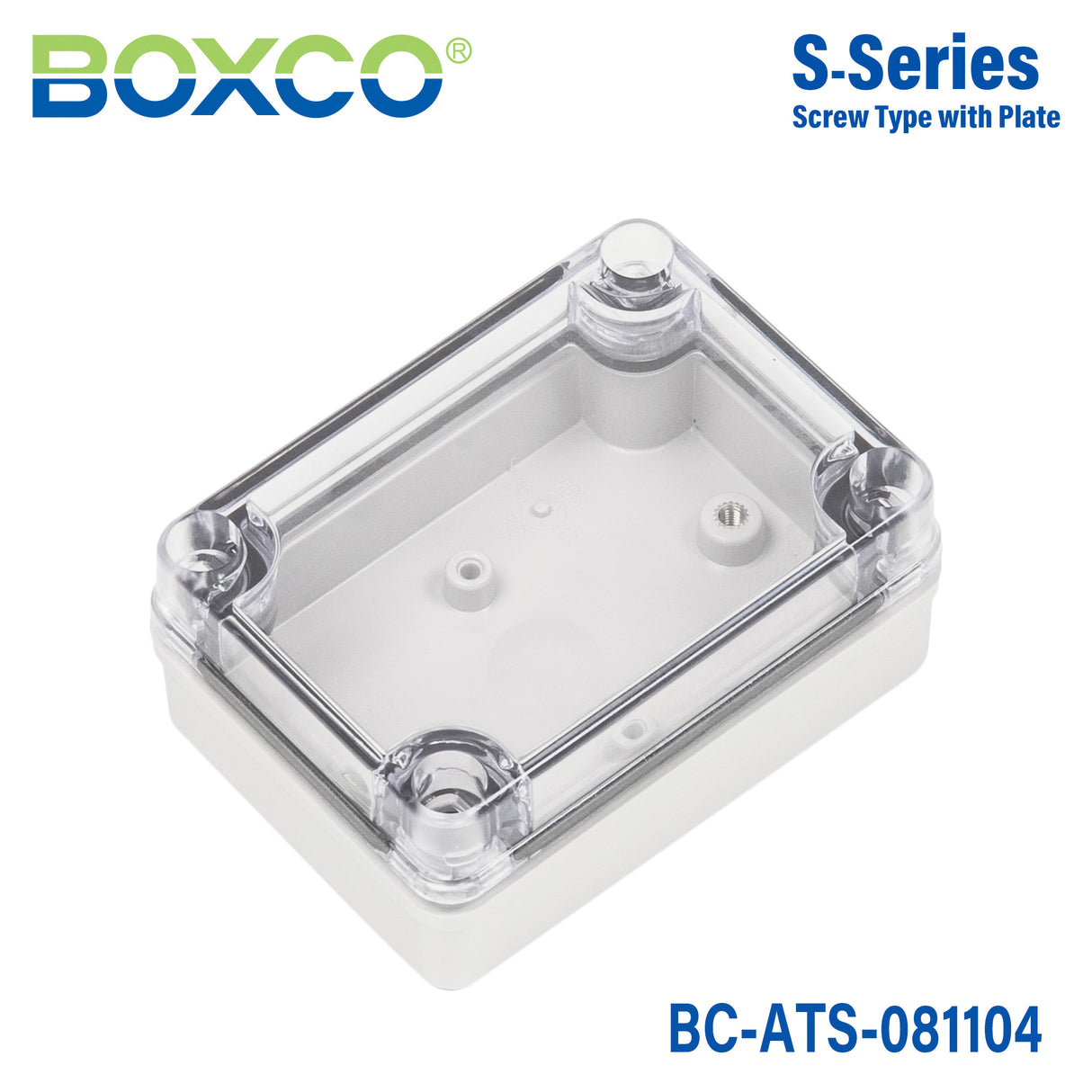

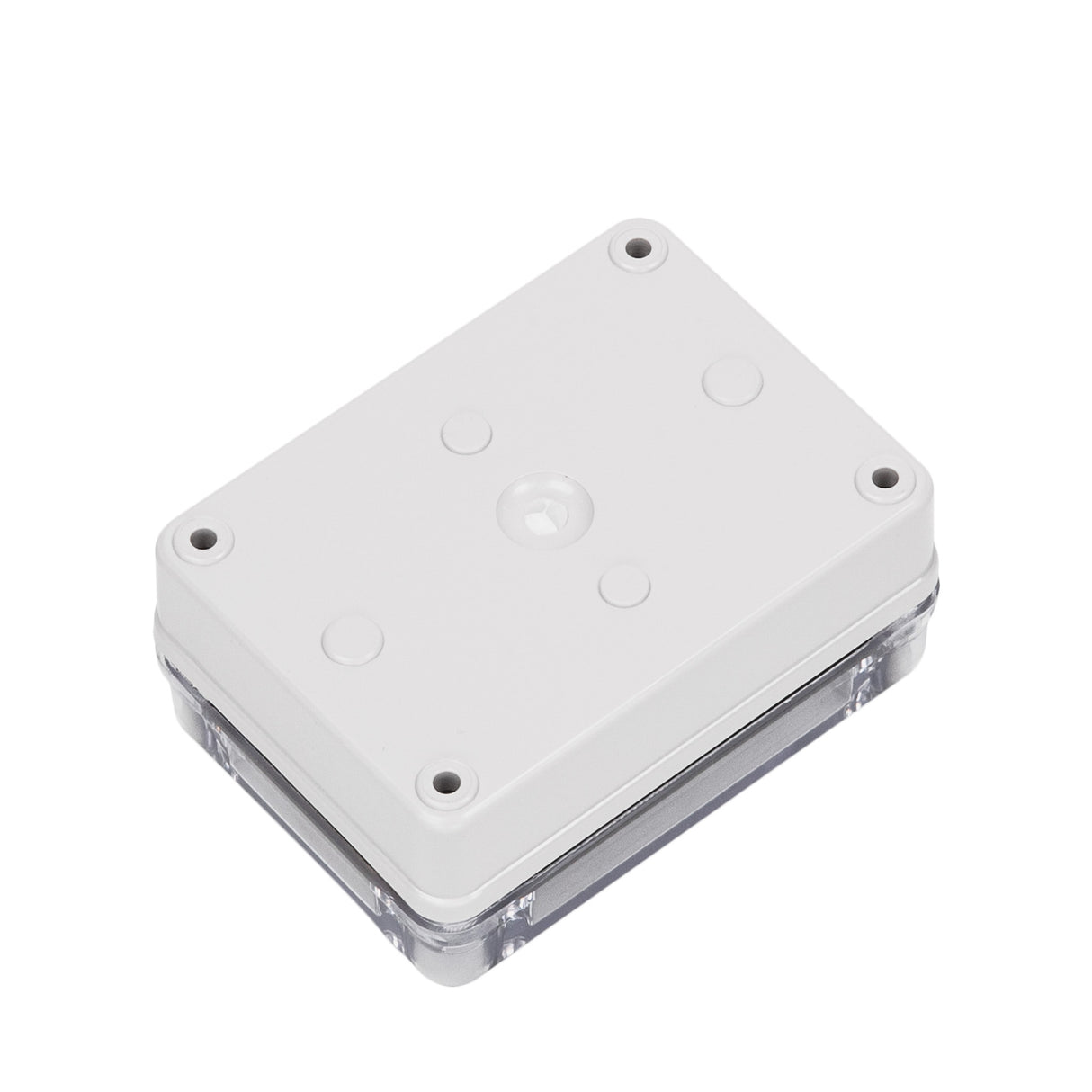

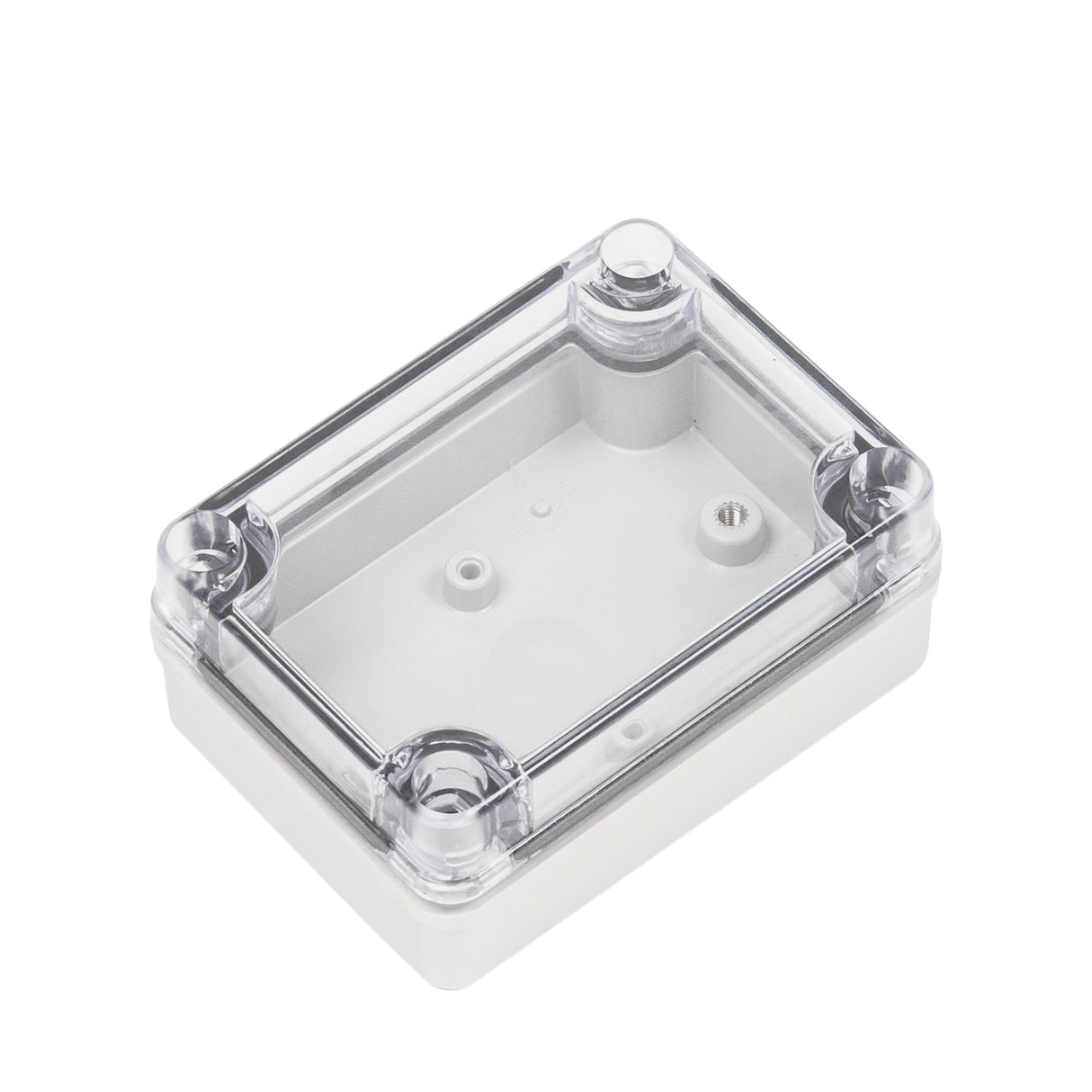

Boxco S-Series 3.15 x 4.33 x 1.77 Inches(80x110x45mm) Plastic Enclo...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

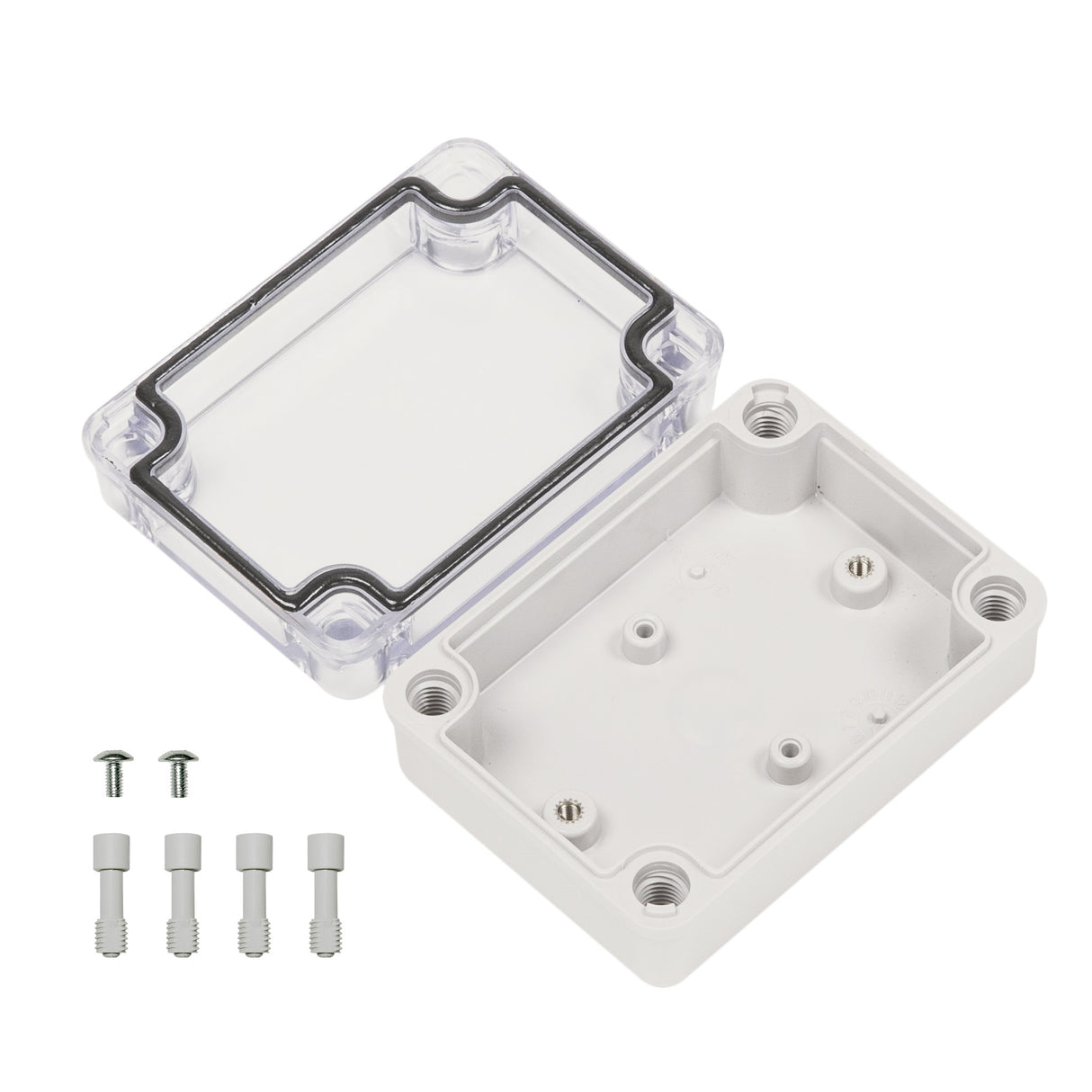

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.33 in
-
Height1.77 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
What are the key specifications of Boxco S-Series BC-ATS-081104?
This plastic enclosure measures 3.15 x 4.33 x 1.77 inches (80 x 110 x 45 mm). It is made from ABS, has a transparent cover, uses a screw-type closure, and is rated IP67 and IK08. The listed weight is 0.148 kg.
Is this enclosure suitable for outdoor environments?
Yes. The Boxco S-Series description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It is also designed to maintain its appearance better over time, with only limited color change after long-term exposure.
How well does this enclosure protect against dust, water, and impact?
This model carries an IP67 rating, indicating strong protection against dust ingress and temporary water exposure under rated conditions. It also has an IK08 impact rating, which reflects resistance to external mechanical impact. The product description also highlights high impact resistant material and a precision-injected gasket for waterproof and dust-proof performance.
Can this enclosure be used around sensitive electronic equipment?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical option for applications where static control is a consideration.
What internal mounting features does this enclosure include?
The enclosure includes internal mounting plate attachment points designed to secure a mounting plate tightly to brass-inserted injection molding. It also includes pre-molded mounting screw nuts, which can support mounting of DIN rail or other internal equipment. These built-in features make the enclosure better suited for organized component mounting than a plain empty box.
What temperature range is this enclosure rated for?
The listed operating temperature range for this model is -40 C to 70 C. That range supports use in both low-temperature and moderately high-temperature industrial or commercial environments, as long as the rest of the application is designed within those limits.
What makes this model different from a basic plastic enclosure?
This model combines several differentiators in one enclosure: IP67 and IK08 ratings, ABS construction, a transparent cover, anti-static material, and UV-stabilized outdoor durability. It also includes integrated mounting-related features such as internal plate attachment points and pre-molded screw nuts. Those details make it more application-ready than a basic general-purpose enclosure.
